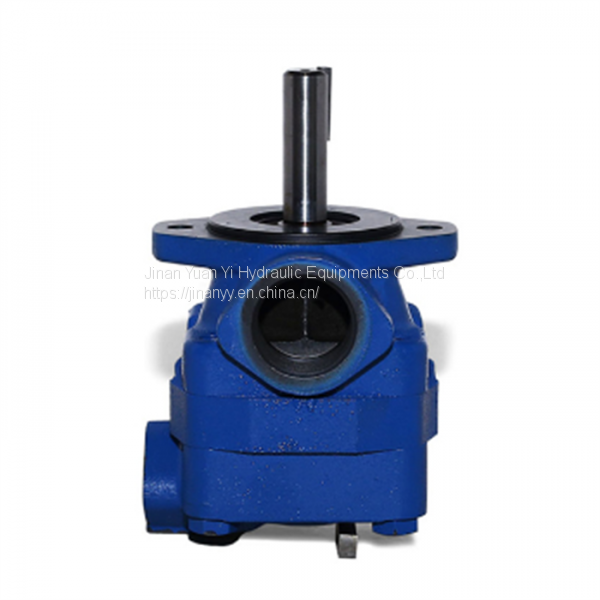

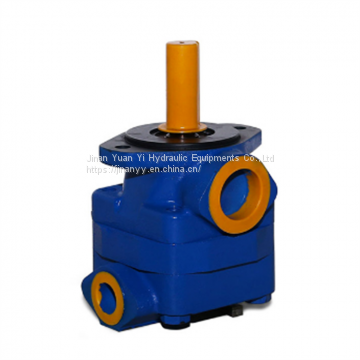

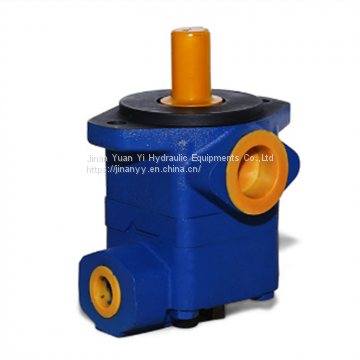

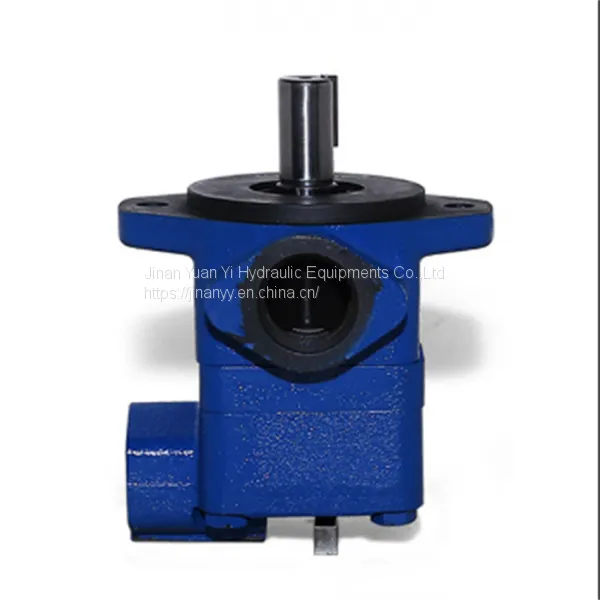

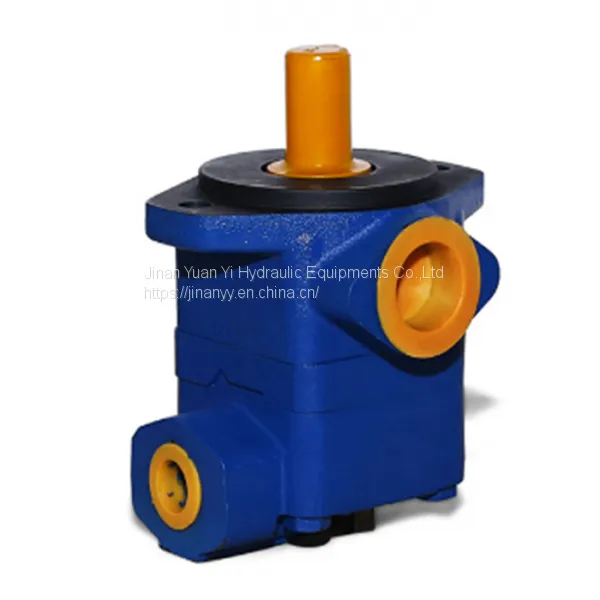

Vickers 25M 35M 45M 50M hydraulic Vane motor 25M oil vane motor
Vickers Hydraulic Vane Motor 25M, 35M, 45M, 50M(standard bearing)
Model: 25M,35M,45M,50M
Structure: vane cartridge style, impact design
Performace: low noise, high speed, high pressure.
Description:
Experience the proven reliability Eaton vane motors deliver in a variety of industrial and mobile applications.
From the easy serviceability and improved uptime of the available cartridge kit designs to the smooth startups of the low breakout force, Eaton M vane motors provide an economical, efficient means of applying variable speed and rotary hydraulic power.
With a relief valve, they can be stalled under load without damage, and they feature variable horsepower characteristics to maximize performance in markets such as molding, material handling and more.
Heavy duty vane motor 26M,36M,46M,51M can be supplied by our company.
Model Torque Displacement Flowinput/required Series Nm/6,9 bar cm3/r(in3/r) @1200r/min (lb in/ 100 psi) L/min(USgpm) |
Maximum speed & pressure | Approx. weight Kg(lb) |
25M 4,7 (42) 43,9 (2.68) 52,6 (13.9) 6,2 (55) 57,7 (3.52) 69,3 (18.3) 7,3 (65) 68,7 (4.19) 82,5 (21.8) | 3600 r/min @ 34 bar (500 psi) 4000 r/min @ 34 bar (500 psi) |
18 (40) |
35M 9,0 (80) 83,6 (5.10) 100,3 (26.5) 10,7 (95) 100,3 (6.12) 120,4 (31.8) 13,0 (115) 121,9 (7.44) 146,1(38.6) |
29 (64) | |
45M 14,7 (130) 138,0 (8.42) 165,4 (43.7) 17,5 (155) 163,2 (9.96) 195,7 (51.7) 20,9 (185) 193,2(11.79) 232,0 (61.3) | 2600 r/min @ 155 bar (2250 psi) 3000 r/min @ 172 bar (2500 psi) |
39 (85) |
50M 24,9 (220) 231,2 (14.11) 277,5 (73.3) 28,8 (255) 268,1 (16.36) 321,8 (85.0) 33,9 (300) 317,1 (19.35) 380,4 (100.5) | 2800 r/min @ 34 bar (500 psi) 3200 r/min @ 34 bar (500 psi) 2200 r/min @ 155 bar (2250 psi) 2400 r/min @ 172 bar (2500 psi) |
73 (160) |
