LED Encapsulation Series 0.2w 5050 Epistar Cree Rgb Smd Led Chip Diode

LED Encapsulation Series 0.2w 5050 Epistar Cree Rgb Smd Led Chip Diode thumbnail-1
LED Encapsulation Series 0.2w 5050 Epistar Cree Rgb Smd Led Chip Diode thumbnail-2
LED Encapsulation Series 0.2w 5050 Epistar Cree Rgb Smd Led Chip Diode thumbnail-3
LED Encapsulation Series 0.2w 5050 Epistar Cree Rgb Smd Led Chip Diode thumbnail-4
LED Encapsulation Series 0.2w 5050 Epistar Cree Rgb Smd Led Chip Diode photo-1
LED Encapsulation Series 0.2w 5050 Epistar Cree Rgb Smd Led Chip Diode photo-2
LED Encapsulation Series 0.2w 5050 Epistar Cree Rgb Smd Led Chip Diode photo-3
LED Encapsulation Series 0.2w 5050 Epistar Cree Rgb Smd Led Chip Diode photo-4
US$ 0.03 - 0.035 MOQ: 1000 Pieces
Key Specifications
Get Latest Price
Brand Name:
YLL
Place of Origin:
China
Model Number:
YLL-SFXL02-5050rgb-smd > 0.2W 5050 RGB
Contact Supplier Request Quote Chat Now
Shenzhen Yuliang Optoelectronic Technology Co.,Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzhen, hongkong
Delivery Detail:
1 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name YLL
Place of Origin China
Model Number YLL-SFXL02-5050rgb-smd > 0.2W 5050 RGB
Certification ROHS
Power Other, 0.2
Color Temperature RGB
Storage Temperature(℃) 10, 30
Operating Temperature(℃) 0, 80
Color Rendering Index(Ra) 50
Viewing Angle(°) 120
Power Dissipation 0.2
Optical Attenuation(%) 0.2
Luminous Flux(lm) R: 600-800mcd, G: 1400-1600mcd, B: 300-500mcd
Luminous Intensity ;R: 600-800mcd, G: 1400-1600mcd, B: 300-500mcd
Emitting Color Tri-Color(Red-Blue-Green)
Chip Material InGaN
Product Description

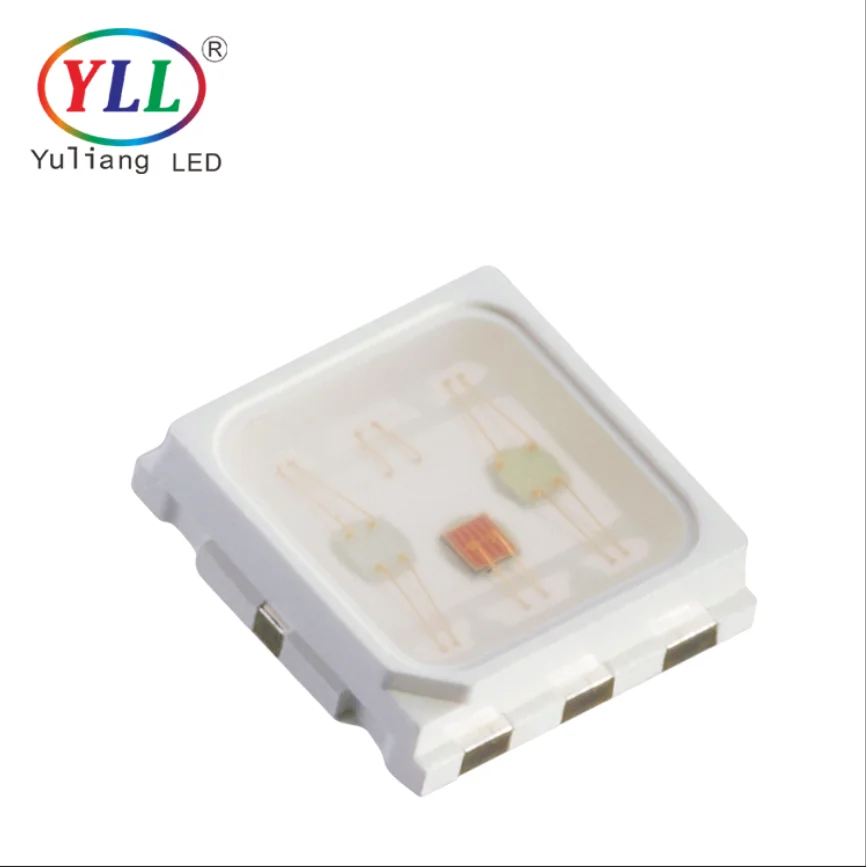

LED Encapsulation Series 0.2w 5050 crees rgb smd led chip diode

Product data
Emitting Color
5050RGB/Golden lighting
Luminous
R:600-800mcd ;G:1400-1600mcd ;B:300-500mcd
View Angle
120degree
Voltage
R:2.0-2.4V ;G:2.8-3.4V ;B:2.8-3.4V
Current
20mA
Lifespan
50000 hours
Warranty
2 Years
Feature:

-Medium and small power, high brightness
-Wide beam angle
-Low impedance
-Good heat dissipation

Application:

-Flexible and Hard Strip Light
-Guardrail Tube
-Point Light Source
-Led Module

Picture Show

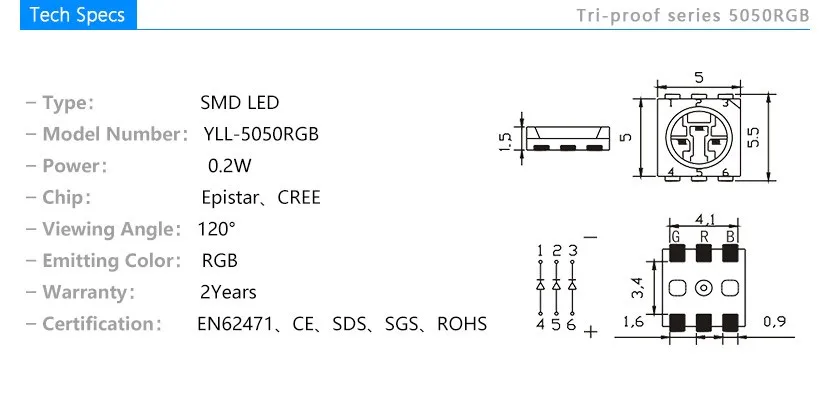

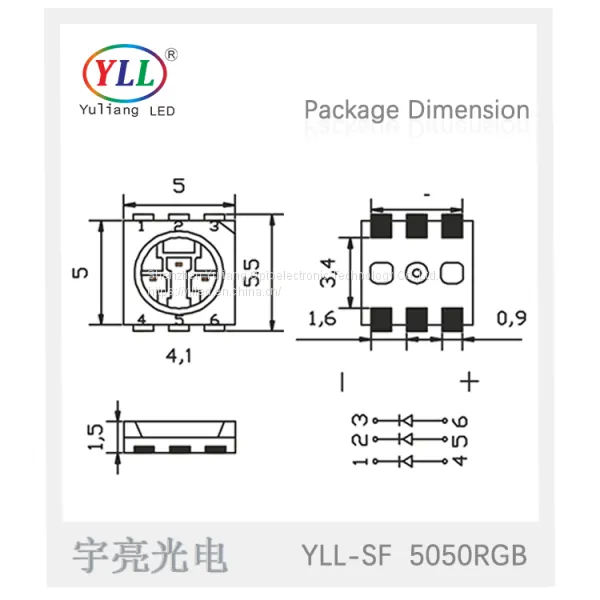

Package Dimension
Applications
Certifications

1、According to the US Energy Star standard IES LM-80

chip production is mainly from international companies (EPISTAR, CREE, OSROM), we have strengthened the integration of supply chain resources to do incoming inspection, process specifications, complete shipment inspection processes, and strive to assure product customers.


2、Outdoor lighting source research and development

continue to provide innovative LED lamp for outdoor LED light industry, 5050 has been a successful mass protruding headlights beads, 5050RGBW lamp beads, 5050RGB lamp beads, lamp beads high was 5054, "three defenses "series 5050 lamp beads.


3、we serve industry more than 10 years of car lights

car tail lights, brake lights, turn signals and so many well-known international brands, successfully developed the "Little Red Riding Hood" series 3528 projection headlights beads, bullet piranha light beads, big feet piranhas lamp beads, full-color RGB piranha lamp beads.


Our Partner

Company Information

Shenzhen Yu Liang Optoelectronic Technology Co., Ltd. was established in 2001, is a national high-tech enterprises. Factory is mainly engaged in research and development, production and sales of ultra high brightness red, yellow, orange, blue, green, purple, pink, light, white light, warm white, golden yellow light RGB to RGBW such as a full range of single core piranha led, multi core piranha led, power 0.5W led piranha, and SMD series 3014 side luminous, 3014,3528, 2735,5730,5050 SMD LED lamp beads, widely used in LED lamp, LED outdoor lamps, indoor lighting, commercial lighting, LED light source field advertising logo.Factory has the world's leading automatic LED packaging production line, more than 10 LED industry over ten years of experience in engineering and technical personnel and senior management, modern LED packaging workshop area of more than 6000 square meters, with scientific management, excellence, customer trust for the company's quality policy, and continuously meet customer demand LED series of products.

1.R & D strength:

We have more than 20 professional lamp R & D engineers, independent of the LED packaging laboratory, can achieve high and low temperature thermal shock test, anti sulfuration, moisture test, constant temperature and humidity, lm-80 standards 6000H continuous decay test etc., the products have been patent number 30.



2.Production strength


More than 10 years LED package experience, more than 6000 square meters of modern led dust-free workshop, the company's first "three defenses" technology perfect solve SMD LED lamp bead high death rate of lamp, vulcanization, moisture absorption and other issues, truly realize the SMD beads (moisture-proof, anti sulfuration, death proof lamp).


3.Technical strength:

Pioneered the use of SMD beads secondary packaging technology realize 3528 convex head series (50-60 degrees) and 5050 convex head series (160-180 degrees) into mass production.

4.Quality Assurance:

Company in strict accordance with the ISO9001:2008 quality management system operation, the white light district in strict accordance with the U.S. Energy Star LM-80 IES standard production, a variety of products have passed the US. Energy Star LM-80 IES test, SGS, ROHS, EN62471 and other certification.


5.Yu Liang commitment:

We promise customers purchasing conventional color temperature products long-term stable supply of a bin, sampling in accordance with customer delivery is completed within 3 days, 5-7 days of completing the small batch orders, conventional products are completed within 1-2 days, response within 24 hours of customer complaint, timely, efficient handling of a series of problems faced by customers.

FAQ
Q1. Can I have a sample order for led light?

A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.

Q3. Do you have any MOQ limit for led light order?

A: Low MOQ, 1pc for sample checking is available

Q4. How do you ship the goods and how long does it take to arrive?

A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.

Q5. How to proceed an order for led light?

A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.

Q6. Is it OK to print my logo on led light product?

A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.

Q7: Do you offer guarantee for the products?

A: Yes, we offer 2-5 years warranty to our products.
