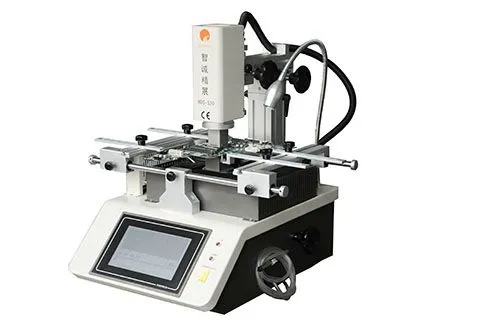

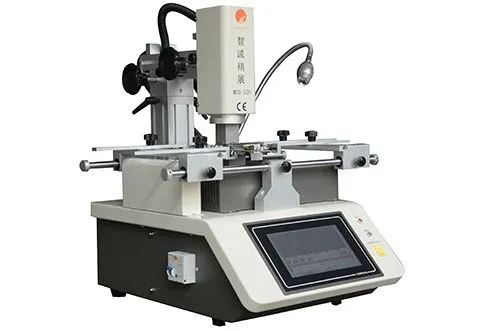

WDS-520 Bga Repair Machine In Other Welding Qquipment Pcb Rework Station

Product type:

Mobile Phone Repair Station                    Motherboard Repair Machine

Hot Air Ir Bga Rework Station For Mobile Phone

Technology Parameter:

 Picture Show:

Features of WDS-520:

1.Using the industrial touch screen,the temperature is displayed on touch screen by real-time curve,with functions of curve analysis and curve changes.

2.Can store hundreds of users temperature curve data.With laser position light,locate the chip repair center fast,with high location accuracy and efficient operational.

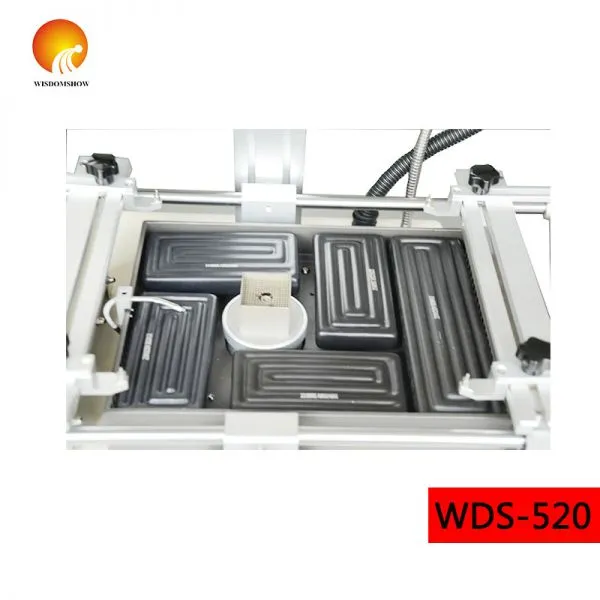

3.Independent 3 heating zones,upper and lower heater are hot air,lower heating zone can be adjusted up and down.Lower heater is infrared,temperature accuracy is controlled within ±2 degree,upper and lower heater can be moved front and back,left and right.Upper and lower heater zones can set 9 segments temperature controlling at the same time.Infrared heating zone can adjust the output power according to the actual requirement.

4.Titanium alloy BGA nozzle can be rotated in 360 degree,easier to repair the different place of chip.Adopting the high accuracy K-type thermocouple close-loop control.The external temperature measuring interface detects the temp accurately.

5.With built-in vacuum pen,working light,cross cooling fan,laser light.Having alarm in advance function,intelligent air regulation software,more convenient than the national button adjustment controlling.

6.With CE certification.it’s equipped with emergency stop switch and protection equipment to power off automatically when abnormal accident happened.Under this situation that the temperature is out of control,circuit can cut off the power automatically with double over-temp protection function.

1,Standard export wooden package for bga rework station;

2,Delivery in 3 workdays after payment confirm;

3,Shipping by TNT, UPS ,DHL,FEDEX (IE), Aramex or by air or by sea;

4,Loading Port: Shenzhen or Hongkong.

1.Your inquiry will be replied in 12 hours.

2.Original Manufacture to customers, with competitive price.

3.We provide one year warranty, free training.

4.Well-trained and Professional after-sales service team to support you.

5.Manual and Demo video CD will package with machine, It will show you how to use machine step by step.

6.Payment terms ,like T/T, Westerunion is choosed by customers.

WISDOMSHOW Technology is based in Shenzhen, China, We are manufacturer for 11 years, and has been the Biggest Factory in the BGA Rework field in China. All material is of high quality under inspection and control,and all BGA Station go through 2 times of test before shipment.  High Quality Assurance is our task and also what we are doing now.

1. We are the Manufactuer = own factory+ machine design+Sheet metal produced by ourself +spray the powder+ strong assemble the machine team + packaging+free training;
2. Logo/Brand:Customer's designs and logos are welcome,we can silk-print your own logo company;
3. HUAWEI,TCL,ZTE,MEIZU,KONKA,LENOVO,FOXCONN vendor;
4. Have good market in Korea,Japan,NorthAfrica,Vietnam,Brazil,Turkey,India,Mexico and South Asia,The Mid-East and European countries;
5. 100% NEW from WDS factory;
6. Over 20 R&D engineers, with 10 year experience;
7. Over 100000 Global User;
8. All models approved CE ISO9001;
9. 100% QC inspect before shipment;
10. High quality & competitive price.

We are looking forward to cooperate with you!
