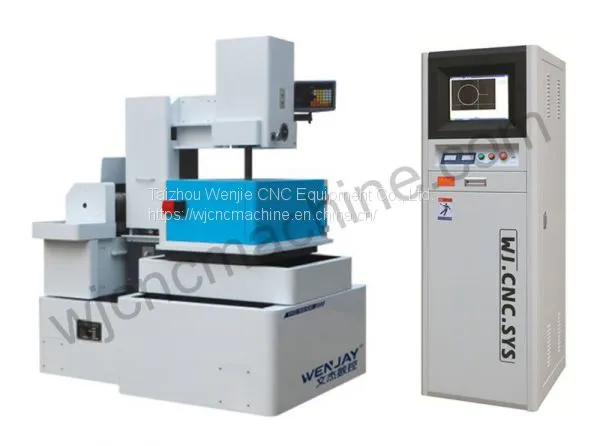

CNC Machine Tool PD-ST Medium-Speed Wire-Moving Control System
Product category: CNC machine tool control system
Product model: PD-ST medium-speed wire movement
Brand: Wenjie CNC
Manufacturer: Taizhou Wenjie CNC Equipment Co., Ltd.
Product description: The medium-speed wire-moving control cabinet of the Company adopts the multiple cutting technology to carry out major reforms of the high-speed wire-moving control system.
Main functions and features of simple structure linear cutting machine:
1. It adopts multiple cutting technology, intelligent control, primary input parameters and automatic switch of machining electrical gauge;
2. The integrated design combines computer control, high-frequency power supply, driving power and electric equipment for machine tools;
3. The dedicated digital control chip design ensures a stable and reliable high-frequency pulse output;
4. The touch-type keyboard design makes it easy to operate and convenient to adjust and makes digital parameter display clear at a glance;
5. The wire storage motor adopts frequency stepless governor, so that the motor runs stably and reliably;
6. The totally-enclosed environmentally-friendly structure is attractive in terms of appearance;
7. The high-grade linear guideway and the ball screw of Taiwan HIWIN are adopted.
Machine tool type | PD-32SE/ST | PD-40SE/ST | PD-50SE/ST | PD-63SE/ST |
Worktable Size (W*L) of CNC machine tool control system | 760×520mm | 850×600mm | 1000×750mm | 1170×830mm |
Max trip of X,Y-axis of the worktable （Y×X） | 400×320mm | 500×400mm | 630×500mm | 800×630mm |
Max cutting thickness | 250mm | 250mm | 300mm | 300mm |
Max load weight | 300kg | 500kg | 800kg | 1000kg |
Max cutting efficiency | 180mm²/min | |||
Max processing current | 7A | |||
Optimum surface roughness | First cutting Ra≤2.3um, second cutting Ra≤1.6um, third cutting Ra≤1.0um | |||
Cutting accuracy | Line≤±0.0025mm, taper≤±0.01mm | |||
Hop accuracy | 0.01mm/0-200mm、0.015mm/0-350mm、0.02mm/0-500mm | |||
Max cutting taper | ±3°/80mm | |||
Electrode wire diameter range (molybdenum wire) | 0.12-0.25mm(standard configuration 0.18mm) | |||
Driving mode of multiple cutting CNC Machine Tool | X, Y, U, V-axis servo (Panasonic servo) or stepper ( 5-phase 10-pat), Z-axis electric silent elevation | |||
Cutting fluid box configuration | High pressure slow wire filtration, volume 100L | |||
Cutting fluid ratio | Dick liquid mixed with pure water, concentration 8-12 | |||
Power consumption of complete machine | ＜2KW | |||
Power supply | Three-phase four-wire 380VAC/50HZ | |||
Host weight | 1860kg | 2160kg | 2750kg | 3450kg |
Host outline size (L*W*H) | 1570×1100×1700mm | 1600×1220×1700mm | 1850×1400×1800mm | 2070×1655×2060mm |
Packaging outline size (L*W*H) | 1720×1300×1800mm | 1850×1420×1800mm | 2050×1600×1900mm | 2340×2100×2160mm |
