Hot Soldering Iron Handle Heater Electric Soldering Iron Handle Soldering Iron Motherboard Chip Soldering Machine
US$ 23.68 - 34
MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
DES
Place of Origin:
China
Model Number:
DES-S130
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
RE60w Soldering Iron for Mobile Repair Micro Adjustable Soldering IronUS$ 9.5 - 11.5MOQ: 1 Piece -
Hot Air Digital Display Rework Soldering Station Hot Air Gun With Mobile Phone Repairing Station Heat Gun 500 Degree CelsiusUS$ 40.15 - 57.35MOQ: 1 Piece
-
CXG802 Hot Air Soldering Desoldering Smd Rework StationUS$ 29.5 - 41.2MOQ: 1 Piece
-
Hot Soldering Iron Handle Heater Electric Soldering Iron Handle Soldering Iron Motherboard Chip Soldering MachineUS$ 23.68 - 34MOQ: 1 Piece
-
Soldering Iron TipNegotiableMOQ: 2000 Pieces
Brand Name
DES
Place of Origin
China
Model Number
DES-S130
Certification
CE FCC Rohs SGS
After-sales Service Provided
No overseas service provided
Condition
New
Output Power
130W
Input Voltage
110V/220V
Dimensions
6*6*28 cm
Temperature Stability
stable
Output Temperature
80-500℃
hot soldering iron
handle heater electric soldering iron handle soldering iron
motherboard chip soldering machine
handle heater electric soldering iron handle soldering iron
motherboard chip soldering machine

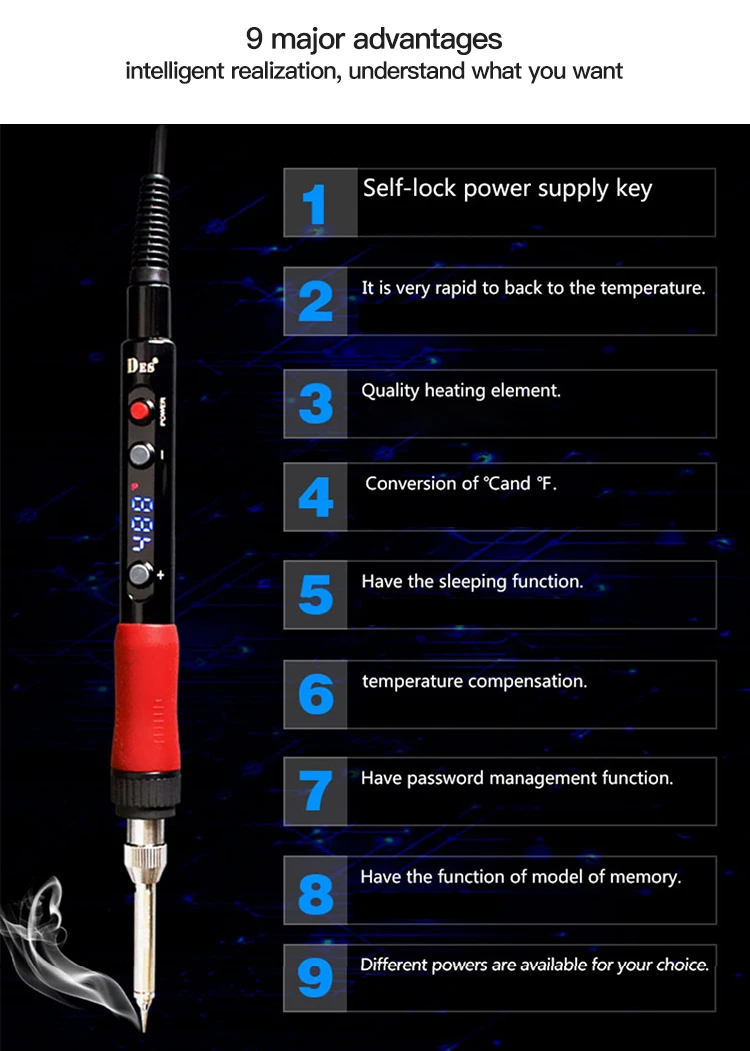

1.High Quality soldering it is small size. super function.
2.Temperature and adjustable soldering It is very rapid to back to the temperature.
3.Quality heating element. Ultra strong platinum temperature sensitivity.

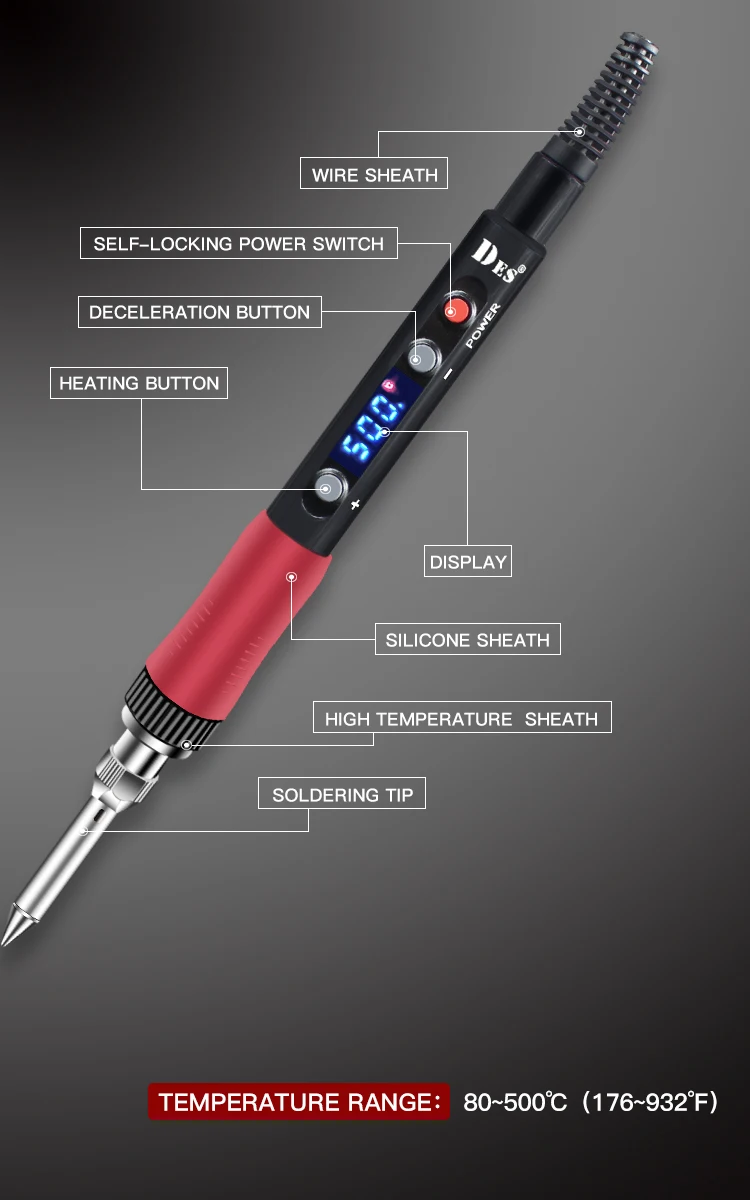

4,digital display soldering convinient knob to adjust the temperature
5.Microcomputer temperature compensation. The temperature error is less than 5 degrees.
6.220v soldering iron have password management function.
7.Full high temperature resistance,flexible and high insulating material is adopted for power cable.

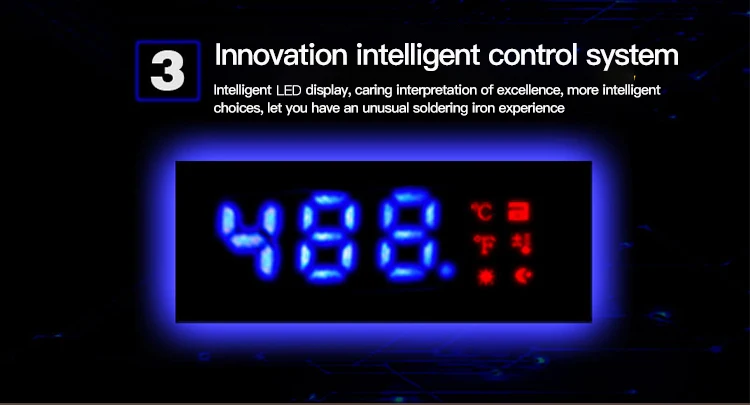

8.LED display. The content is absolutely clear.
9.Have the function of memory.
10.The handle is made of special high temperature resistant material, ESD antistatic treatment.
| Product Specifications | |||
| Model | DES-S70 | DES-S100 | DES-S130 |
| Power | 70W | 100W | 130W |

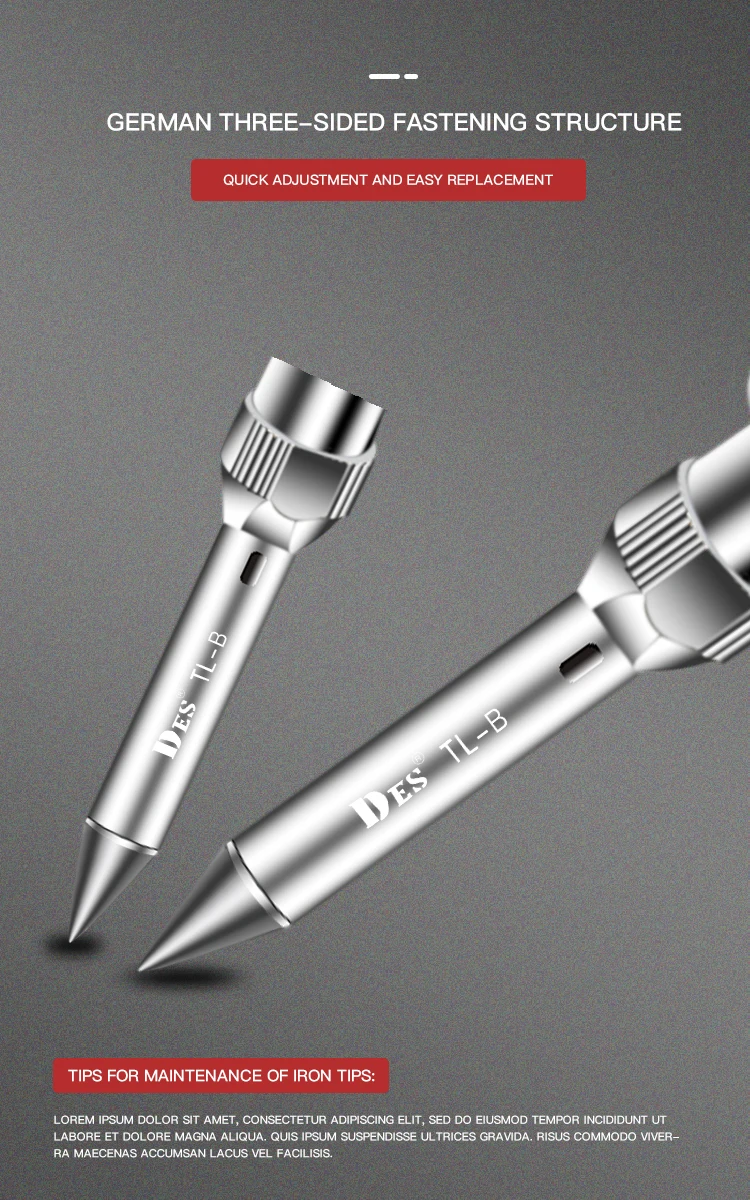

| Soldering tip support | TL | TL | TL |

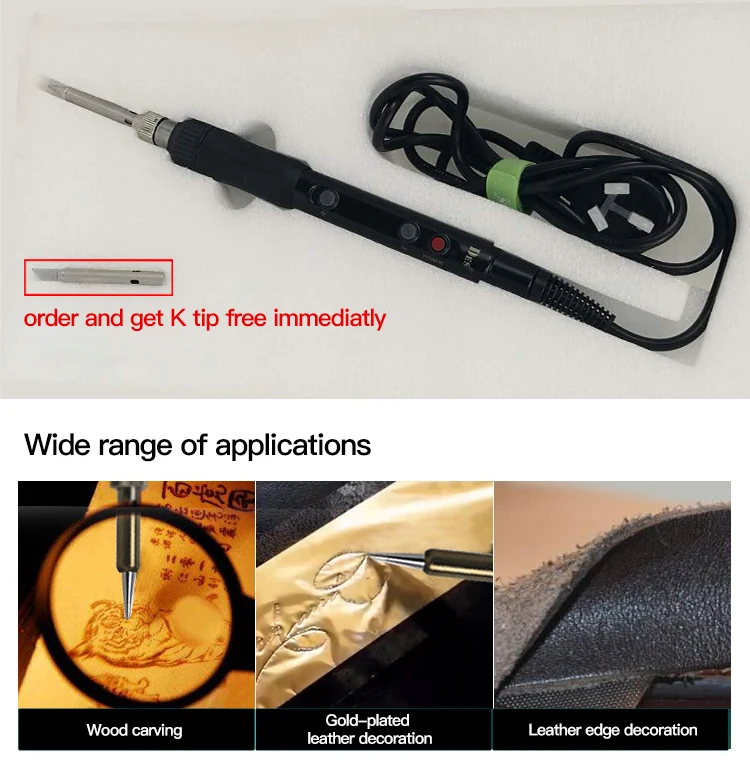

| Original included tip | B shape | B shape | K shape |

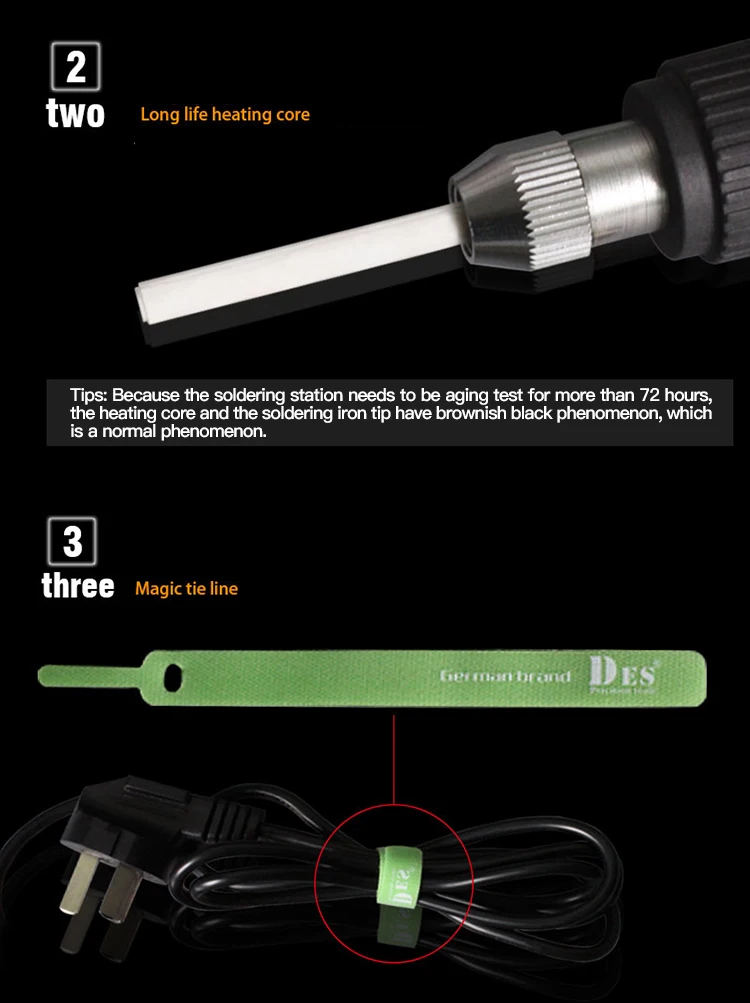

| heating element | MCH 4 core type,precisly control temperature | ||
| Temperature Range | 80-500℃ / 176-932℉ | ||
| Temperature rising speed | 8 seconds | ||
| Power Switch | body button | ||

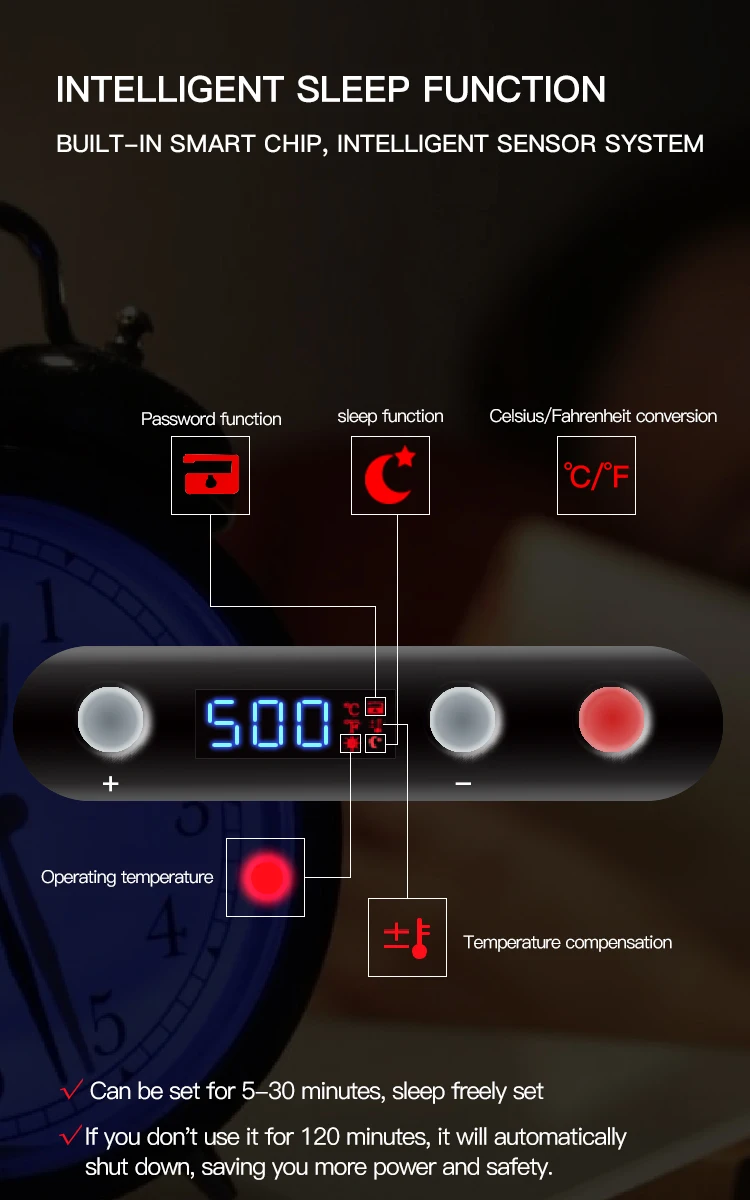

| Sleep function | 5-30 mints setting | ||
| Smart power off | after 120 mints no operation will shut off automatically | ||
| Password function | support | ||
| Temperature correction | 50 degree | ||
| Temperature display screen | LED | ||
| Heating element 220v | A1827 | A18210 | A18213 |
| Heating element 110v | A1817 | A18110 | A18113 |

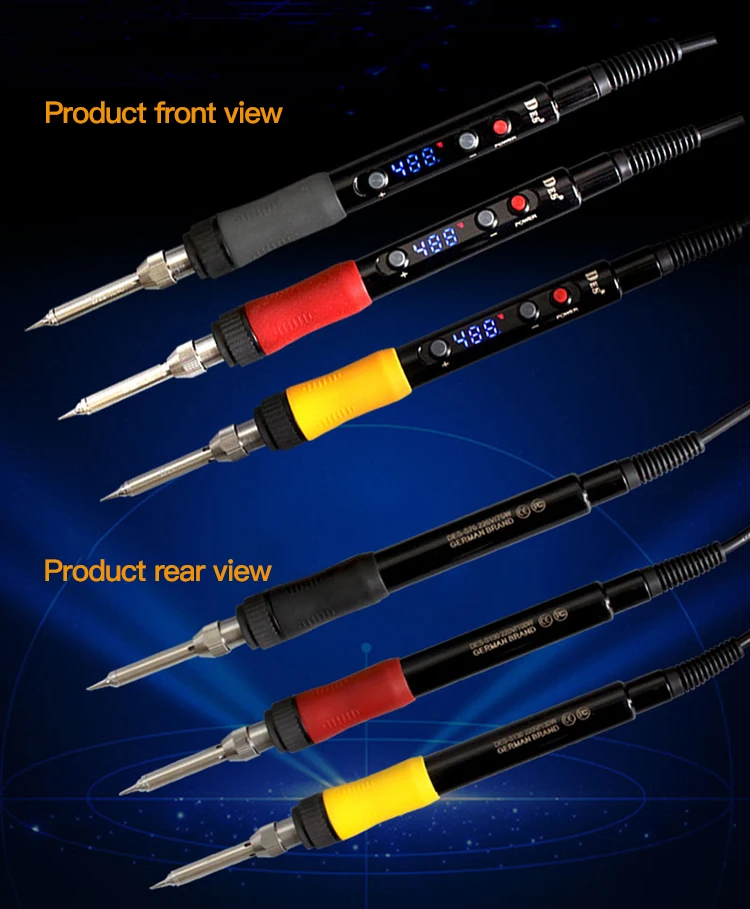

| Button color | Black | Red | Yellow |
| Tip to ground resistance | |||
| Tip to ground voltage | |||
| Power cable length | 1.5m | ||
| Weight | 1kg | ||
| Packing dimension | 32*16*6cm | ||
