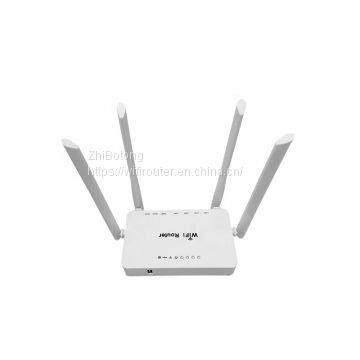

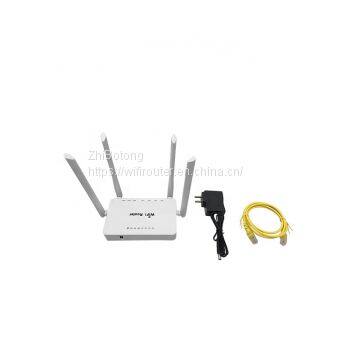

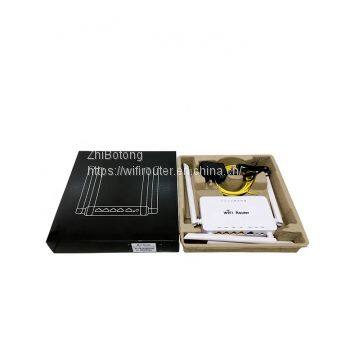

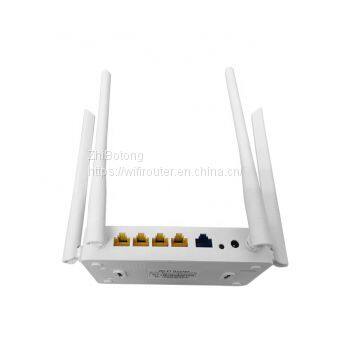

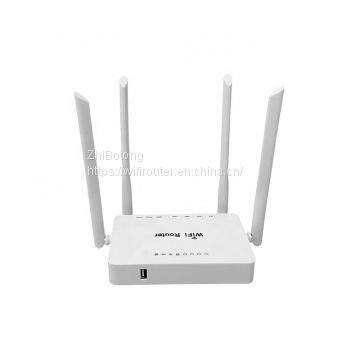

OEM manufacturer ZBT-WE1626 300mbps wireless openwrt Wifi for home use

Main CPU

MT7620N/580MHZ

RAM

DDR2 RAM 64MB (Max 64MB)

FLASH

SPI 8MB (Max 16MB)

Protocol

IEEE802.11n/802.11g/802.11b/802.3/802.3u

WiFi Rate

Max 300Mbps

Work Frequency

2.4GHZ

RT Power

11N: 15dBm±2dBm

11G: 15dBm±2dBm

11B: 18dBm±2dBm

Reception Sensitivity

11N: -68dBm

11G: -70dBm

11B: -82dBm

Antenna

4 external antennas

Interface

1*10/100M Auto-MDI/MDIX WAN port
4*10/100M Auto-MDI/MDIX LAN port

1*USB 2.0 port

LED

power/WLAN/WAN/LAN1/LAN2/LAN3/LAN4

Button

Reset

consumption

< 9W

Software

WAN Type

PPPoE,Dynamic IP,Static IP

Work Mode

AP;Router;

DHCP

Server, Client, DHCP Client List, Address Reservation

Port Forwarding

Virtual Server, Port Triggering, UPnP, DMZ

Firewall Security

Dos, SPI Firewall

IP Address Filter/MAC Address Filter/ Domain Filter

IP and MAC Address Binding

DDNS

Support

WEB Style Change

Support

Band Ctrl

Support

Static Router

Support

System Log

Support

Other Function

Mac clone
NTP Synchronize
Web firmware upgrade

Others

Work Environments

Operating Temperature: 0℃ ~ 40℃

Storage Temperature:-40℃~ 70℃

Operating Humidity:10%~90% non-condensing

Storage Humidity:10%~90% non-condensing

Adapter

9V  0.6A
