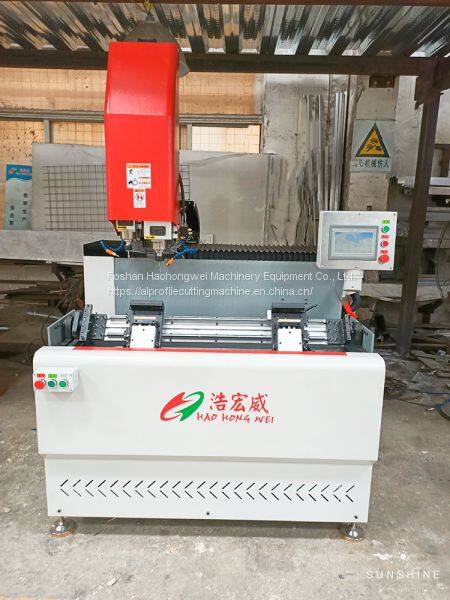

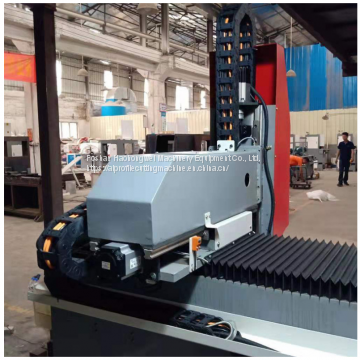

CNC Driling and Miling Machine CNC800B2 Aluminum Profile CNC Drilling and Milling Machine

Parameter：

Features:

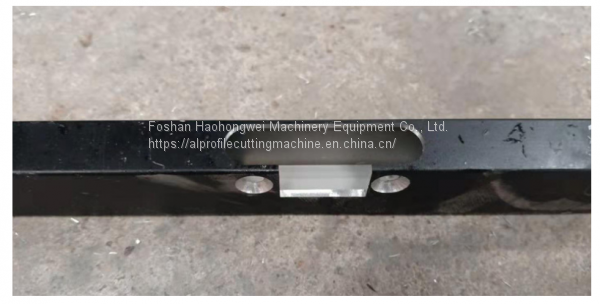

☆ Suitable for milling various types of holes and grooves of various aluminum door and window profiles;

☆ Adopt high-precision linear guide pair, roller screw and servo motor to ensure smooth movement, high positioning, repeated positioning and machining accuracy;

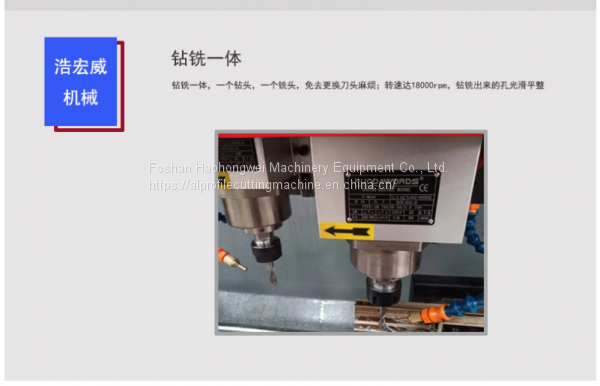

☆ Adopt high-speed electric spindle, which has stable rotation and low noise and strong cutting ability;

☆ Adopt vegetable oil micro-automatic cooling system to effectively improve tool life, non-toxic and non-polluting.

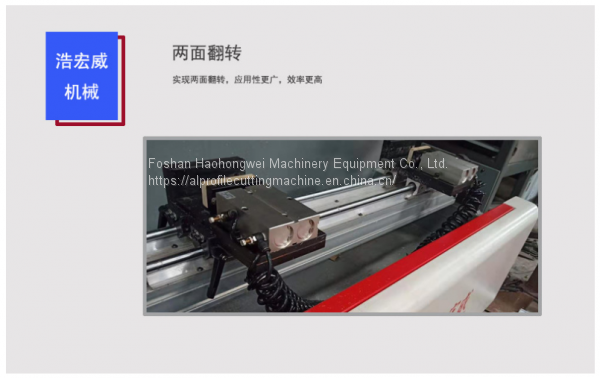

☆ Rotatable table can be arbitrarily converted between -90°, 0° and +90°, enabling one-sided clamping to complete three-face milling;

☆ Using CNC control system, intelligent CNC system and simple and intuitive man-machine interface make operation more convenient and quick.

☆ The steel structure used in the main components has been lapsed.

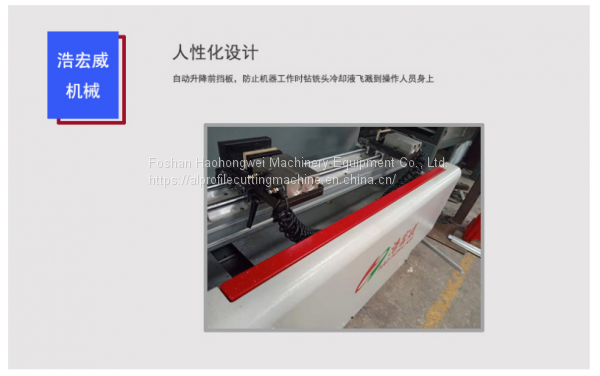

☆ Automatic lubrication device and protective device can automatically lubricate the moving parts of guide rails and lead screws to improve the service life of the guide rails. The X-axis and Y-axis of the machine are equipped with a dustproof cover, and the workbench is equipped with a waterproof splash.

☆ The equipment assembly is assembled in strict accordance with the mechanical process requirements. The X-axis, Y-axis, Z-axis guide rails, screw rods and other motion pairs and high-speed electric spindles of the machine tool are all adjusted by the dial gauge with an error of ≤0.03mm. Before the screw bolts are assembled, the screws are applied to prevent the screws and bolts from loosening, thus damaging the machine tool and machining accuracy.

☆ The screw support bearing adopts the angular contact bearing to prevent the screw from moving during the movement.
