Update solar charge controller

After two year operation, combined with customers feedback, we update the controller.

1. Voltage display precision, error is ±1V. The problem with big error is solved.

2. Current display precision, error is ±1A, the problem small current with big error is solved.

3. Multi- strings input, the solar panel voltage, current, instantaneous power,accumulated power(optional)

4.Carry out MODBUS protocol. The problem that the protocol cant be compatible with other devices is solved. It is convenient to do secondary development.

5. Add the protection function of charge module. When batteries are broken or open circuit, inverter power the loads directly via controller, the charge module wont be damaged.

6. Battery protection is added. When there is fault on charge module, disconnect the battery, to prevent the over-charge of battery(high voltage is optional)

7. The update LCD display can be applicable for 16 strings PV combiner box monitoring.

This update solar charge controller is with video, if you need it, pls contact the salesman.

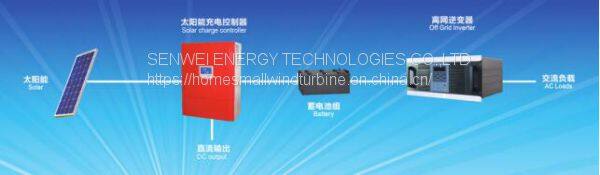

1. Design for off-grid solar power system.

2. Applicable to different kinds of batteries.

3. Modular design with simple structure and easy maintenance.

4. Automatic power control function.

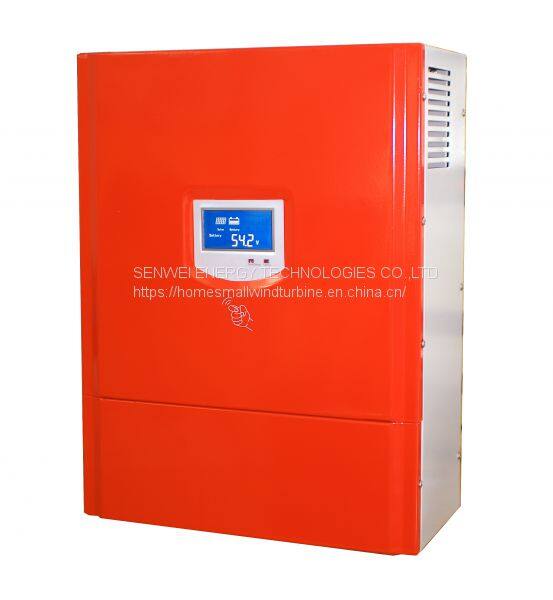

5. LCD display: Solar panel current, solar panel voltage, solar panel power, battery group voltage,charge current.

6.Perfect protection function: Solar reverse charge protection, Solar reverse connection protection, Battery reverse connection protection, Battery overcharge protection, Battery over current protection etc, thus the system has higher reliability.

Application

○  For desolate area like mountain, island, pasturing area, etc.

○  For transportation system like beacon light, traffic light, street light, etc.

○  For communication system: unattached operation microwave middle station, optical cable

maintenance station, etc.

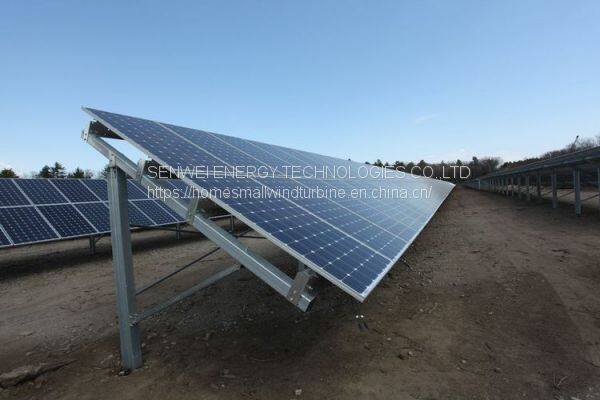

○  For photovoltaic power station, wind-solar power station, park charging station, family power

house, factory power station, etc.

○  For solar building: has good business future.

○   For the new technology application project.

Technical parmeters

Technical parameters of the solar charge controller 220V

*Above parameter only for reference. Could be custom made to user specifications.

*Above parameter only for reference. Could be custom made to user specifications.
