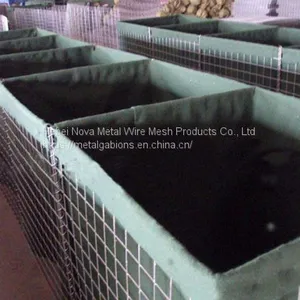

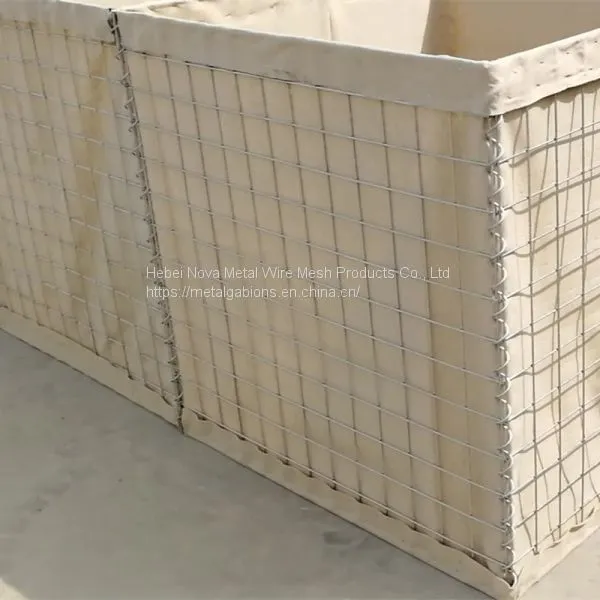

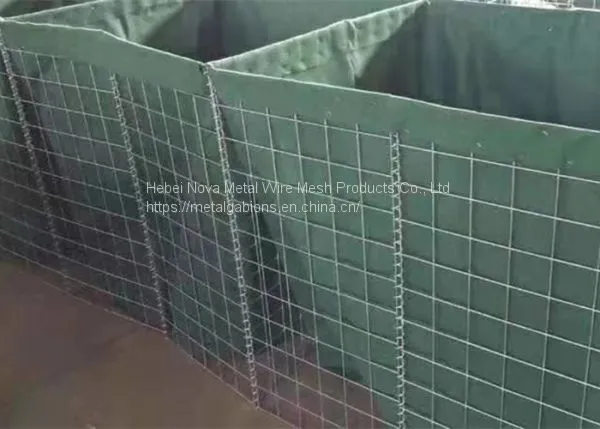

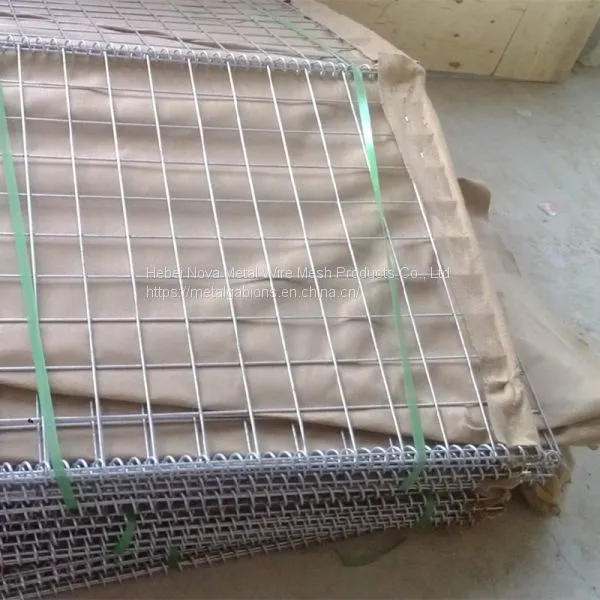

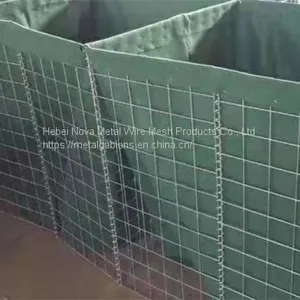

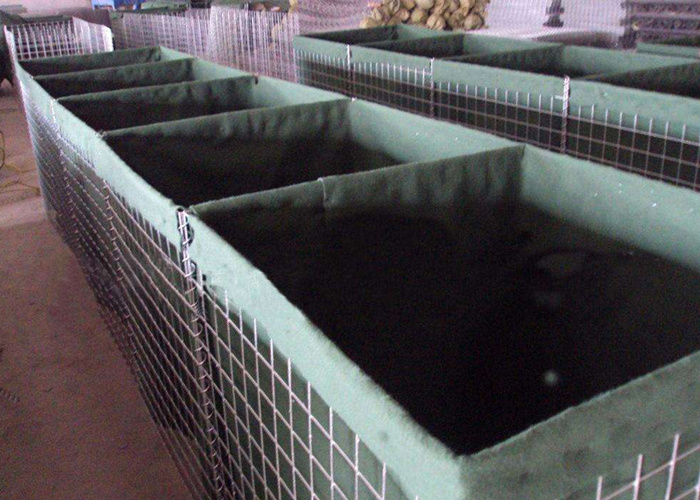

Welded Military sand gabion box wall hesco barrier
Product description
The Welded Military Gabion Box, Security Military Gabion Box unit is a multi-cellular wall system manufactured from welded Zinc-Aluminum coated /hot dipped galvanized steel wire mesh and joined with vertical,helical coil joints.
The units are lined with either beige or green colored heavy-duty non-woven polypropylene geotextile.can be filled with sand, earth, cement,stone, then as a defence wall or bunker and widely used in the military to protect safety.
Unlike common welded gabion, after set up in the field, Hesco barrier can be filled inside with soil, sand or gravel, to become a protection wall. This means raw material are very easy to get, especially suitable for the coastal area where is abundant in sand.
specification
Material:Galvanized Iron Wire, low-carbon steel wire
Type:Welded Mesh
Hole Shape:Square
Aperture:50*50mm, 75*75mm etc
Wire Gauge:2.0-6.0mm
Surface treatment:Galvanized+PVC Coated
Usage:Protection
Feature:Easily Assembled
Packing:Pallet
Length:30m
Width:0.5m-3m
Height |
Width |
Length |
Cells |
54''(1.37m) |
42''(1.06m) |
32'9''(10m) |
1*4+1*5 cells |
24''(0.61m) |
24''(0.61m) |
4'(1.22m) |
2 cells |
39''(1.00m) |
39''(1.00m) |
32'9''(10m) |
2*5 cells |
39''(1.00m) |
60''(1.52m) |
32'9''(10m) |
2*5 cells |
24''(0.61m) |
24''(0.61m) |
10'(3.05m) |
5 cells |
66''(1.68m) |
24''(0.61m) |
10'(3.05m) |
5 cells |
87''(2.21m) |
84''(2.13m) |
91'(27.74m) |
2*4+1*5 cells |
54''(1.37m) |
48''(1.22m) |
32'9''(9.14m) |
1*4+1*5 cells |
39'(1.00m) |
30''(0.76m) |
30'(9.14m) |
2*6 cells |
87''(2.21m) |
60''(1.52m) |
100'(30.5m) |
4*5 cells |
48''(1.22m) |
12''(0.3m) |
4'(1.22m) |
4 cells |
84''(2.13m) |
42''(1.06m) |
108'(33m) |
6*5 cells |
108''(2.74m) |
42''(1.06m) |
10'5''(3.18m) |
3 cells |
Features of military barriers
Strong and durable structure.
Quality geotextile lining.
Labor saving design.
Quick and easy to assemble and deploy.
Long service life.
Barriers Application
Perimeter security and defense walls
Equipment revetments
Personnel and material bunkers
Observation points
Defensive firing positions
Guard posts
Protection engineering of seaside area
Border crossing checkpoints
Protecting existing structures
Flood control retaining wall
