| Wire Diameter: | 2.0-4.0mm | Hole Size: | 60*80,80*100mm Etc |
|---|---|---|---|
| Material: | Galvanized Wire | Size: | 1*1*1,2*1*1,3*1*1m |
| Application: | Gabion Fence | Main Market: | America,Europe,USA,Asia |

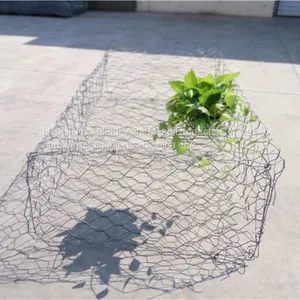

Hexagonal steel wire mesh cages / woven steel gabion baskets
Product Description:

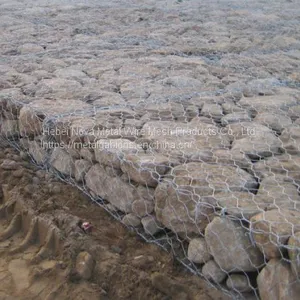

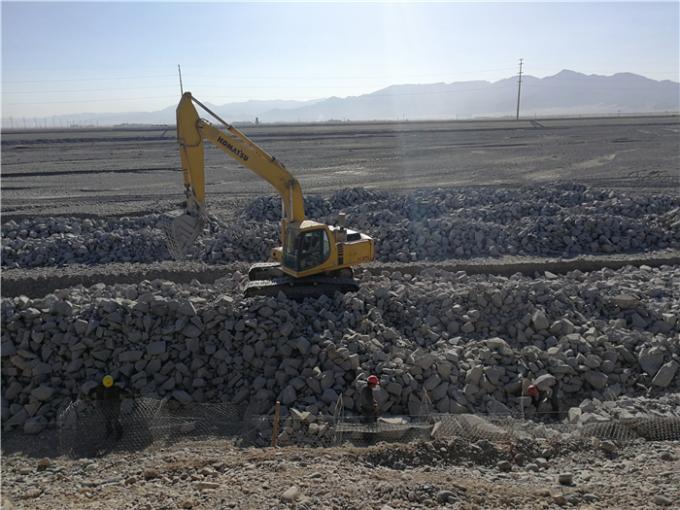

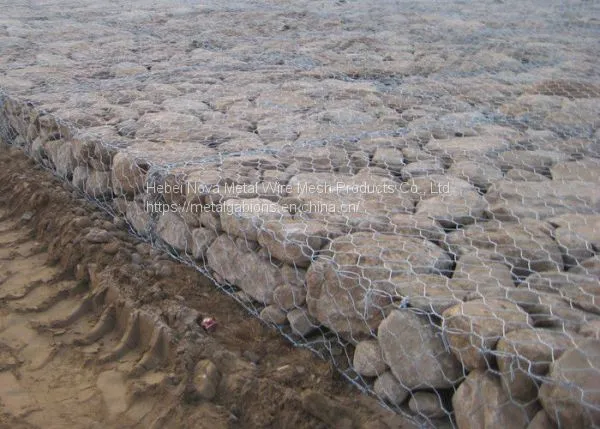

Gabion baskets and mattresses form containers, that when filled with stone, provide an aesthetic method for retaining earth or controlling soil erosion. As a method for retaining earth, gabion baskets are stacked atop one another to form a hardscape feature, retaining walls, culvert headwalls, bridge abutments or bridge wing walls.
Erosion control uses involve laying baskets or mattresses side-by-side on the ground to develop channel lining, bank protection, weirs and drop structures.
Advantages of the system include:
less space required than for other types of retaining walls
reduced environmental impact
increased structural strength
| Gabion Basket Sizes | ||||
|
Length m |
Width m |
Height m |
Number of Cells |
Volume m³ |
| 2.0 | 1.0 | 1.0 | 2.0 | 2.0 |
| 3.0 | 1.0 | 1.0 | 3.0 | 3.0 |
| 4.0 | 1.0 | 1.0 | 4.0 | 4.0 |
| 2.0 | 1.0 | 0.5 | 2.0 | 1.0 |
| 3.0 | 1.0 | 0.5 | 3.0 | 1.5 |
| 4.0 | 1.0 | 0.5 | 4.0 | 2.0 |
| 2.0 | 1.0 | 0.3 | 2.0 | 0.6 |
| 3.0 | 1.0 | 0.3 | 3.0 | 0.9 |
| 4.0 | 1.0 | 0.3 | 4.0 | 1.2 |
Pre-assembled gabions are made of welded wire fabric and have shape control that is far superior to that achieved with other types of baskets. The fabric used in these baskets is identical to the mesh used to reinforce concrete flatwork. The improved finished shape of welded wire mesh gabions produces a more pleasing appearance. In addition, gabions install at a considerably faster rate than woven wire baskets. Studies have shown that welded wire baskets install at a rate that reduces labor costs by at least 50%.
Tell us the gabion basket length, height, width, and used for retaining wall, garden wall, erosion control, flood protection etc, We will then get back to you with the list of gabion baskets needed to build the wall, costings including delivery.
