HZ-200Y Hydraulic Core Drilling Rig/rotary Drill Rig
- Qingdao
- T/T L/C
- 7 days
You May Like
-
HZ-200YY Hydraulic Core Drilling Rig/core Sample Drill
-
XYX-200 Wheeled Hydraulic Core Drilling Rig/diamond Drill
-
XYD-200 Crawler Hydraulic Core Drilling Rig/Crawler Core Drill
-
XYC-200 Vehicle-mounted Hydraulic Core Drilling Rig/concrete Drill
-
XYC-200A Tricycle-mounted Hydraulic Core Drilling Rig/hydraulic Drill Rig
-
XY-100 Hydraulic Core Drilling Rig/100m Drill Rig
Product Details
| Brand Name | Huaxiamaster | Place of Origin | China | |
| Model Number | HZ-200Y | After-sales Service Provided | No overseas service provided |
Product Description

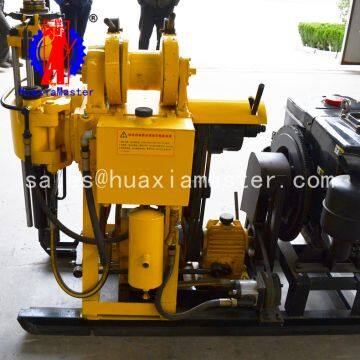

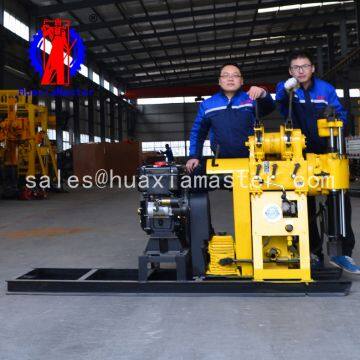

HZ-200Y hydraulic core drilling rig
1. Applications of HZ-200Y hydraulic core drilling rig
Geological survey and exploration, road and high-rise building foundation exploration, and all kinds of concrete structure inspection holes, river embankments, subgrade grouting holes, drilling and direct grouting, civil water well and ground temperature central air conditioners.
2. Features of HZ-200Y hydraulic core drilling rig
· adopts 53*59 hexagon drilling, which has high rigidity and strong delivery torque.
· the machine is equipped with taper clutch, with the charactristics of strong transmission troque, easy operation and free of maintenance.
· for the winch, we use large module planetary gear and add supporting frame, greatly increasing hoisting and braking ability of the winch.
· vertical spindle are fixed by four groups of bearings to ensure that the core machine is rigid enough for gravel layer and other complex geological conditions.
· we are the first one to equip mud pump with the flow 160L/min in China so that it will save cost and also make the machine compct, moblie and light in weight.
3. Technical parameters of HZ-200Y hydraulic core drilling rig
HZ-200Y hydraulic core drilling rig | |
Drilling depth | 200m |
Max open hole caliber | 300mm |
End hole caliber | 75mm |
Drill rod caliber | 60mm |
Drilling angle | 90°-75° |
Drill weight(without power) | 1100kg |
Triangle conveyer belt | B950*4 B1700*3 |
The main machine moving distance | 300mm |
Power | Diesel engine 22HP Electric motor 15kw |
Spindle | |
Spindle speed | 64/128/287/557 r/min |
Spindle stroke | 450mm |
Hoist | |
Max.lifting capacity | 2400kg |
Single line lifting speed | 0.41/ 0.82/1.64 m/s |
Wire rope caliber | 13mm |
Wire rope length | 35m |
Hug floodgate caliber | 260mm |
Hug floodgate belt width | 70mm |
Mud pump | |
Type | Horizontal single-urn twin-action |
Displacement | Diesel engine 170L/min Electric motor 150L/min |
Maximum pressure | 3Mpa |
Work pressure | 1.5Mpa |
Inlet pipe caliber | 40mm |
Outlet pipe caliber | 30mm |
Triangle conveyer belt | B1728mm |
Mud pump | |
Type | CBT—F—314 |
Triangle conveyer belt | B1100× 1 |
