US$ 5500 - 5600 MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
Huaxia master
Place of Origin:
China
Model Number:
XY-180
Contact Supplier Request Quote Chat Now
Shandong Huaxia Master Machinery Co.,Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
QINGDAO
Delivery Detail:
30 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name Huaxia master
Place of Origin China
Model Number XY-180
Type Core Drilling Rig
Certification ISO9001
After-sales Service Provided Overseas service center available
Warranty 6 months
Weight 750kg
Dimension(L*W*H) 746*315*229mm
Power Type Diesel
Usage Coal
Condition New

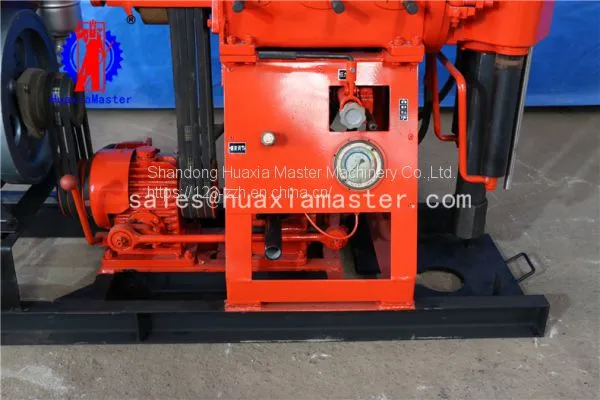

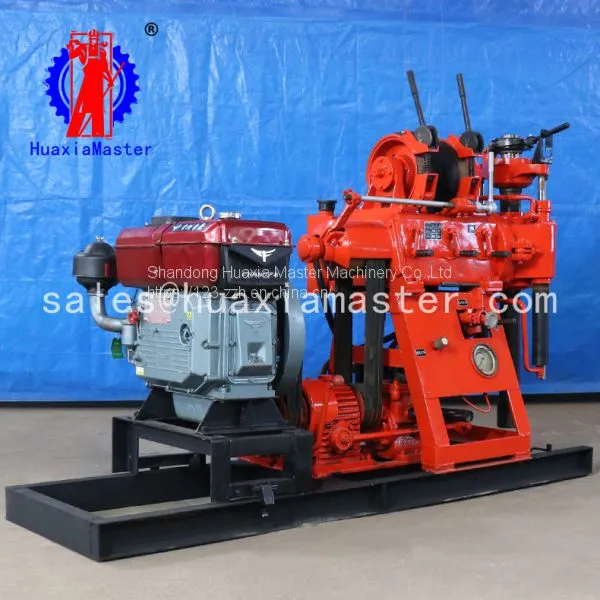

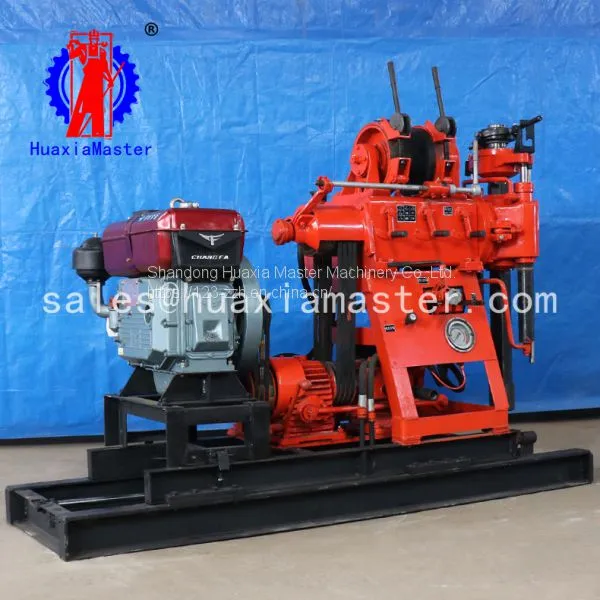

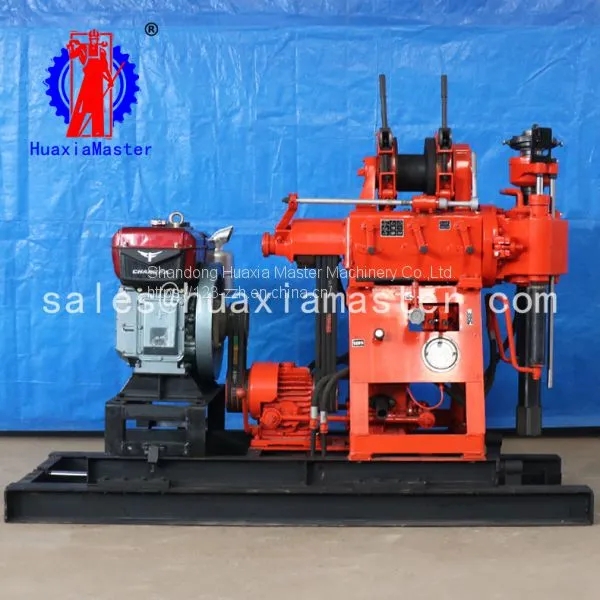

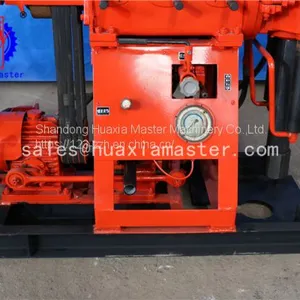

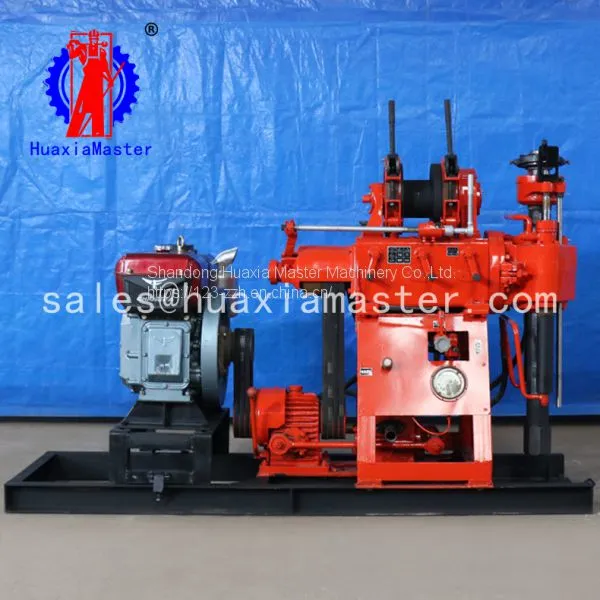

XY-180 hydraulic core drilling rig

1. Applications of XY-180 hydraulic core drilling rig

The XY-180 hydraulic core drilling rig is designed on the basis of the XY-1A hydraulic core drilling rig. It is a low speed and high torque portable drilling machine with oil pressure.

This drill rig is suitable for engineering geological survey of railway, hydropower, traffic, bridge, dam foundation and other buildings, geological core drilling and physical investigation, drilling holes for small holes and blasting holes, a small water well drilled.

1. Parameters of XY-180 hydraulic core drilling rig

Drilling depth（m）

180/150/120/90/70/30

Borehole diameter（mm）

75/91/110/130/150/300

Maximum opening diameter（mm）

375

Drill pipe diameter（mm）

42/50

Spindle speed (r/min)

71/142/310/620

Spindle stroke（mm）

450

Upgrading ability (KN)

15

Diameter of steel wire（mm）

12

Type

gear pump

Model

YBC-12/80

Rated pressure (MPa)

8

Rated speed (r/m)

1500

Displacement（ml/r）

8

Power supply

ZS1115 diesel engine and 15kw motor


Product Tags: high torque portable drilling machine , hydraulic machine
