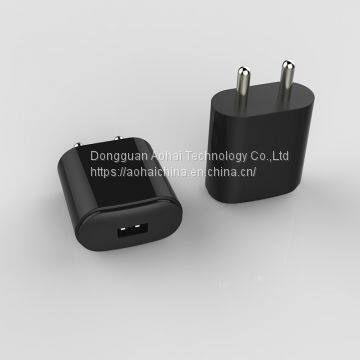

Aohai Mobile Adapter 18W QC3.0 Fast Power Charger EU Pins

Name: Aohai Mobile Adapter 18W QC3.0 Fast Power Charger EU Pins
Brand: Aohai, EU, XIHI
SKU: 161270865
Availability: InStock

US$ 2.5 - 3.5 MOQ: 10000 Pieces

Key Specifications

Brand Name:

Aohai, EU, XIHI

Place of Origin:

China

Model Number:

A824

Dongguan Aohai Technology Co.,Ltd

Payment & Shipping

Payment Methods:

Port of Shipment:

FOB Shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Brand Name Aohai, EU, XIHI

Place of Origin China

Model Number A824

1. Input Characteristics

Item	Specification	Min	Typ	Max
AC input voltage	Single phase	100Vac	_ _ _	240Vac
AC innput voltage range	Single phase	90Vac		264Vac
AC input frequency	Single phase	47HZ	50/60Hz	63Hz
AC input current	Typical input voltage&output at full load	_ _ _	_ _ _	500mA
AC inrush current	Typical input voltage&output at full load,25℃	_ _ _	60A	80A
Average efficiency	Typical input voltage&output at25%,50%75%100%load	81%	_ _ _	_ _ _
Leackae current	Tyical input voltage&output at full load	_ _ _	_ _ _	0.25mA

2. Output Characteristics

Item	Specification	Min	Typ	Max
Nominal DC output voltage		_ _ _	5.0Vdc	_ _ _
DC output voltage range	Typical output voltage±5%	4.75Vdc	_ _ _	5.25Vdc
Load current	CC mode; I=1000mA	_ _ _	3000mA	_ _ _
Rated output current	CV mode;2.5V-4.75V	3000mA	_ _ _	3600mA
Nominal output power		_ _ _	18W	_ _ _
Riple and noise	Typical input voltage and typical load,25℃ Ripple&Noise: Measurement is done by 20MHZ bandwidth oscilloscope and the output paralleled a 0.1uF ceramic capacitor and a 10uF electrolysis capacitor.	_ _ _	_ _ _	150mV
Hold-up time	At 230Vac input	10ms	_ _ _	_ _ _
Turn-on delay	At 230Vac input	_ _ _	_ _ _	2s
Over current protection	Auto recovery	_ _ _	_ _ _	3700mA
Short circuit protection	No damage and auto recovery(at 230Vac input)	_ _ _	_ _ _	4500mA
Over voltage protection	Auto recovery	_ _ _	_ _ _	6.5V
Standby power	At 230Vac input	_ _ _	_ _ _	0.075W
Converse current		_ _ _	_ _ _	10mA
LED indicate		_ _ _	_ _ _	_ _ _
