CFD-FS-S-000R Ring Type of Fuel Oil Drip Samplers

The samplers included fuel samplers,bunker samplers,drip samplers,continuous drip samplers and liquid samplers.

We develop samplers to meet our customer's needs.

The most common and economic means of obtaining a representative sample is by using a drip type Bunker Sampler. In back to back tests performed by a major fuel testing laboratory over an extended period, samples obtained by drip samplers were identical to those from more expensive automatic fuel samplers.

Bunker sampler 3 inch,Bunker sampler 4 inch,Bunker sampler 5 inch,Bunker sampler 6 inch

Bunker sampler 7 inch,Bunker sampler 8 inch,Bunker sampler 9 inch,Bunker sampler 10 inch

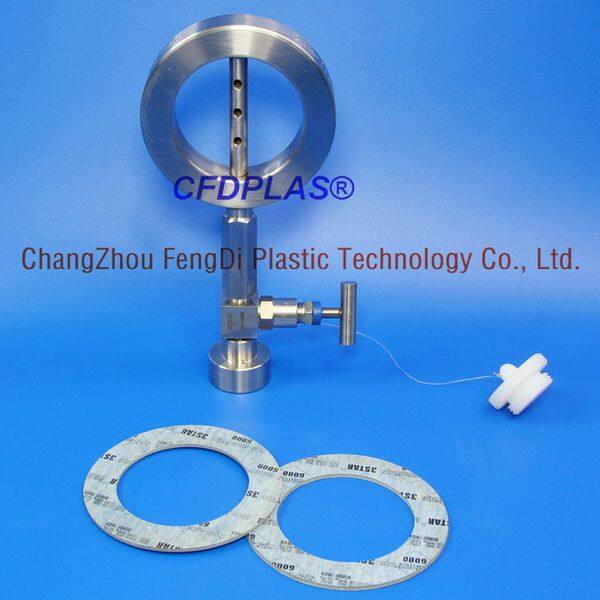

Samplers are manufactured in corrosion-resistant stainless steel and each sampler consists of a flange assembly with its accessories of bolts,nuts,two gaskets and plastic cubitainers. Installation is extremely simple within minutes using two
specially fabricated long bolts, and they are widely used for fuel sampling on board of all vessels.

The sampler can be custom made of different materials in accordance with different standards.

Flange Size: DN80-DN350

Flange Standard : ANSI/BS/DIN/JIS...

Stainless Materials:SUS304

Each drip sampler contains:

Stainless Steel Flange
Purpose Built Probe With Baffle Plate
Stainless Steel Valve
Cubitainers Interface and Security Cap
Stainless Steel Valve Locking Device
5 pieces of seal Strip
Customised Long Nuts and Bolts
2 Pieces of Asbestos Free Gaskets
1 piece of wooden box

A full range of bunker samplers, consumables, accessories and spare parts are available.
