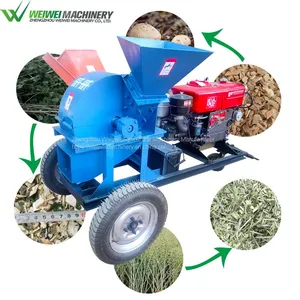

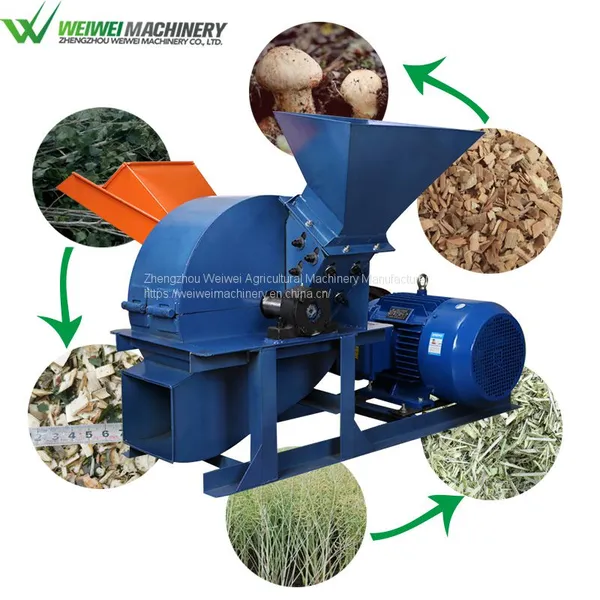

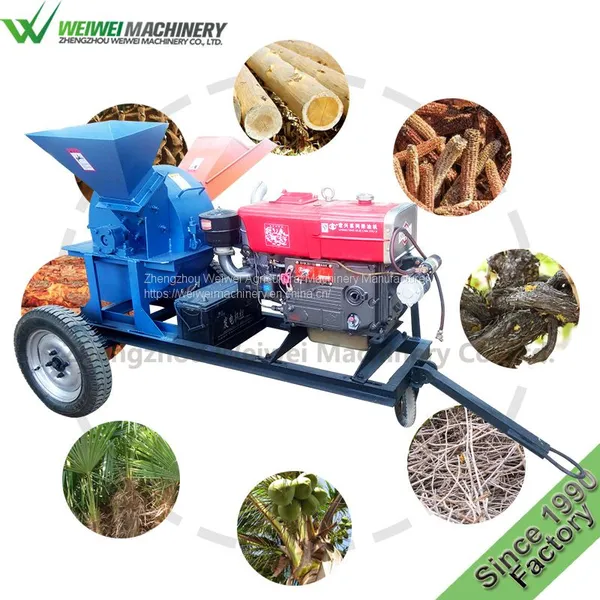

MFJ series wood crusher wood hammer mill wood sawdust making machine
Main technical parameter
Model MFJ-420
Power (kw):7.5-11
Voltage: Customized
Weight: 150kg (different models, different weight)
Capacity (t/h):0.8-1.5
Qty of cutter (blade):4
Main shaft speed(r/min):2600
Feeding hole size (mm):160*155
Cutter disk diameter (mm):424
Cutter size (mm):90*60*8
Dimension (mm):1200*550*750 with electric motor, 2500*1300*1750 with diesel
Product effects size: screen mesh can be customized
Modify series: yes, we supply modification series
Model MFJ-500
Power(kw):18.5-22
Voltage: Customized
Capacity(t/h):1.2-2.0
Qty of cutter(blade):4
Feeding hole size(mm):205*185
Cutter disk diameter(mm):510
Cutter size(mm):120*70*8
Main shaft speed(r/min):2400
Dimension(mm):1500*640*820
Product effects size: screen mesh can be customized
Modify series: yes, we supply modification series
Model MFJ-600
Power(kw):22-30
Voltage: Customized
Capacity(t/h):1.8-2.5
Weight: 330kg
Qty of cutter(blade):4
Feeding hole size(mm):230*195
Cutter disk diameter(mm):600
Cutter size(mm):150*70*8
Main shaft speed(r/min):2200
Dimension(mm):1600*700*1050
Product effects size: screen mesh can be customized
Modify series: yes, we supply modification series
Model MFJ-700
Power(kw):30-37
Voltage: Customized
Capacity(t/h):2.5-3.5
Qty of cutter(blade):4-6
Feeding hole size(mm):230*195
Cutter disk diameter(mm):600
Cutter size(mm):180*70*8
Main shaft speed(r/min):2000
Dimension(mm):1850*830*1050
Product effects size: screen mesh can be customized
Modify series: yes, we supply modification series
Model MFJ-900
Power(kw):55-75
Voltage: Customized
Capacity(t/h):5.5*6.5
Qty of cutter(blade):8
Feeding hole size(mm):280*290
Cutter disk diameter(mm):750
Cutter size(mm):150*100*10
Main shaft speed(r/min):1500
Dimension(mm):2000*870*1500
Product effects size: screen mesh can be customized
Modify series: yes, we supply modification series
Model MFJ-1000
Power(kw):75-6
Voltage: Customized
Capacity(t/h):6-7
Qty of cutter(blade):8
Feeding hole size(mm):280*290
Cutter disk diameter(mm):750
Cutter size(mm):150*140*10
Main shaft speed(r/min):1500
Dimension(mm):1180*1100*940
Product effects size: screen mesh can be customized
Modify series: yes, we supply modification series
Model MFJ-1200
Power(kw):90-6
Voltage: Customized
Capacity(t/h):7-8.5
Qty of cutter(blade):8
Feeding hole size(mm):385*385
Cutter disk diameter(mm):1000
Cutter size(mm):190*140*2
Main shaft speed(r/min):1200
Dimension(mm):1430*1500*1200
Product effects size: screen mesh can be customized
Modify series: yes, we supply modification series
Model MFJ-1500
Power(kw):110-6
Voltage: Customized
Capacity(t/h):9-11
Qty of cutter(blade):8
Feeding hole size(mm):480*475
Cutter disk diameter(mm):1160
Cutter size(mm):230*140*14
Main shaft speed(r/min):1000
Dimension(mm):1650*1750*1400
Product effects size: screen mesh can be customized
Modify series: yes, we supply modification series
Model MFJ-1800
Power(kw):132-6
Voltage: Customized
Capacity(t/h):11.5-14
Qty of cutter(blade):12
Feeding hole size(mm):530*560
Cutter disk diameter(mm):1300
Cutter size(mm):150*140*14
Main shaft speed(r/min):950
Dimension(mm):2050*1850*1620
Product effects size: screen mesh can be customized
