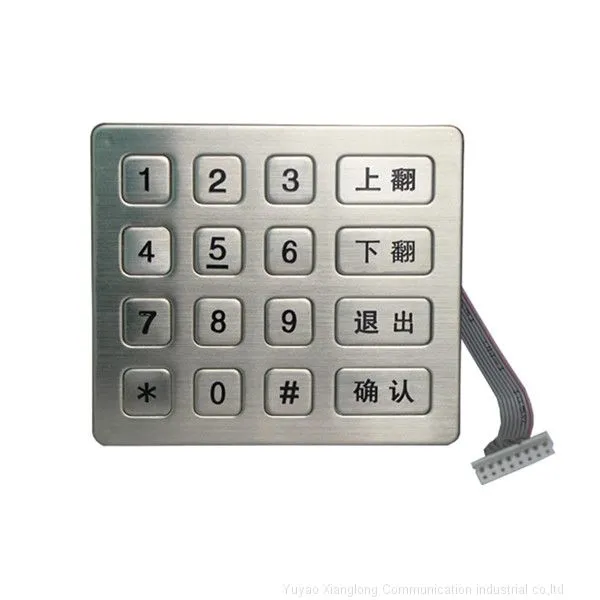

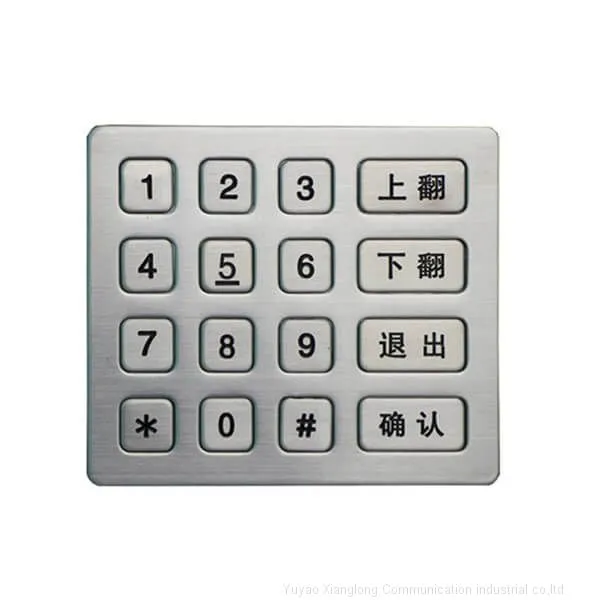

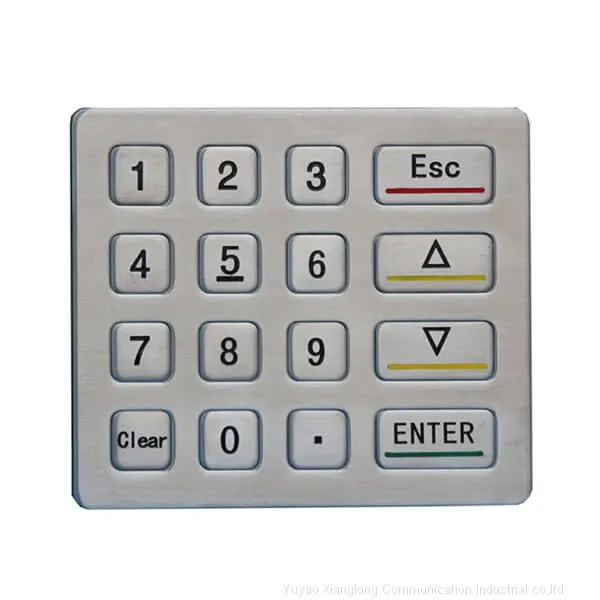

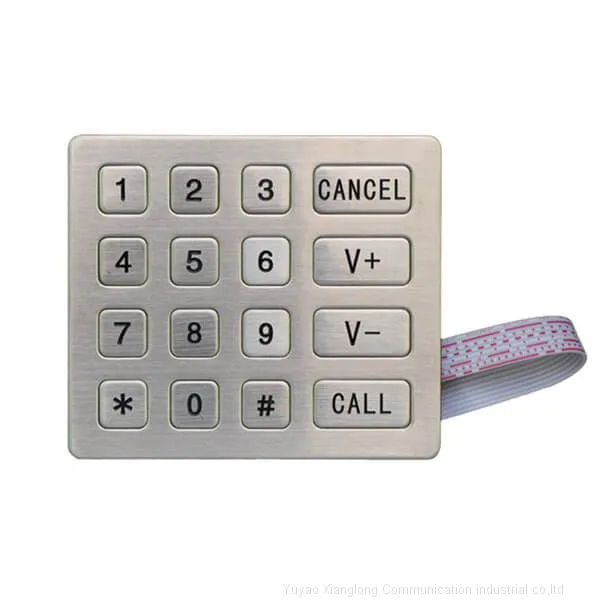

Help Center4×4 Vandal Proof Matrix Keypad for Vending Machine，accessing，ATM
Related Products
-
3x4 Matrix Keypad Stainless Steel KeypadUS$ 14.5 - 19.5MOQ: 100 Pieces -
Good Sell Metal Waterproof Keypad for Access ControlUS$ 16 - 21MOQ: 5 Pieces
-
4x4 Keys Waterproof Stainless Steel Keypad for Access ControlUS$ 19.5 - 26MOQ: 10 Pieces
-
3x4 12 Keys Stainless Steel Numeric Keypad for Access ControlUS$ 17 - 23MOQ: 5 Pieces
-
3X4 12 Keys Stainless Steel Keypad for Access ControlUS$ 16 - 21MOQ: 5 Pieces
Quick Details:
1. 16 Keys stainless steel keypad, Dot matrix keypad .
2. carbon -on-gold key switch technology .
3. rear mounting/bracket mounting
Descriptions:
1. 16keys IP65 dynamic compact format vandal proof ,Industrial numeric keypad with industrial PCB electronics .
2. Industrial PCB with carbon-on-gold key switch technology with long stroke (2.0mm) with extremely good tactile feeling for fast and accurate data input without any noise .
3. Ease of installation and maintenance.
4.This keypad is usually for access control,door access,cabinet door lock.
Special Features:
1. Specially designed keyboards meet the highest demands with regard to design, functionality, longevity and high protection level.
2. This keypad with willful destruction, vandal-proof, against corrosion, weather-proof especially under
extreme climatic conditions, water proof/dirt proof, operation under hostile environments.
Applications:
A. unsupervised or semi-supervised positions of varied access control systems,security system , household applications.
Specifications:
MECHANICAL DATA | |
Keys |
16 Keys |
Switching Material |
Carbon-on-gold key switch technology PCB |
Actuation Force |
0.6 N+/0.1N(pressure point) |
Frame/Keys Materials |
ABS Plastic |
Dimensions |
107.0mm*93.0mm(L x W) |
G.W. |
250g approx |
LED color |
Customized/Blue LED regular |
Key Size |
14.0mm*14.0mm |
Rubber Life |
More than 500000 cycles |
ELECTRICAL DATA | |
Power Supply Voltage |
3V DC |
Current Rating |
Appox. 45mA |
Power Comsumption |
Under 300mW for operation,under 200mW for non-operation |
Contact Resistence |
200 Ohms(Max) |
Electrical Lifetime |
>5 years |
Interface |
Male pin out connector,XH plug |
Environment Adaptability | |
Operating Temperature |
-20 ℃ to + 75 ℃ |
Storage Temperature |
-3 5 ℃ to + 85 ℃ |
Operating RH |
30-90% RH |
Atmospheric Pressure |
60-106Kpa |
Reliability | |
Protection Level |
IP65(Front Panel) |
Vandal Resistant |
IK09 |
