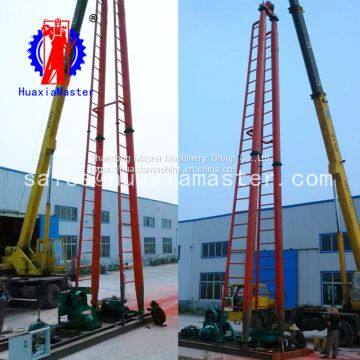

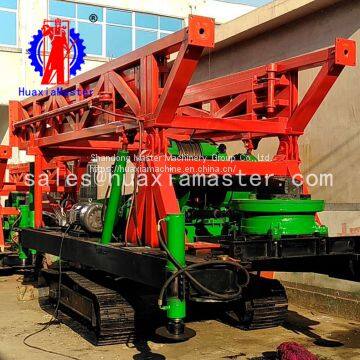

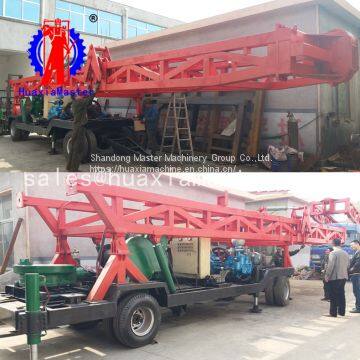

Large diameter disc drill machinery large power water 1000 meters can be decomposed for easy transportation of bulk disc drill rig
- 50 Set / Sets per Month
- Qingdao
- T/T L/C
- 5 days
-
China Xy-200 Water Well Drill Rig Machine for Soil and Rock Drilling
-
100 Meters Xy-1A Water Well Drilling Rig Machine Equipment
-
HY-50H Small Domestic Hydraulic Water Well Drilling Rig of China
-
50m Depth Core Drilling Rig Portable Diamond in Mountain
-
TSP core bit, BQ NQ HQ PQ core drill bits, HWL, wireline core barrels, diamond coring bits, hard formation, deep hole rock core recovery
-
1.5M 3M inner tube assembly, wireline core barrels, head assembly, impregnated diamond drilling, hard formation coring, deep hole rock core recovery
Product Details
| Brand Name: | huaxiamaster | Place of Origin: | China | Model Number: | SPJ-1000 |
| Type: | Rotary Drilling Rig | Certification: | ISO9001 | After-sales Service Provided: | Engineers available to service machinery overseas |
| Warranty: | 6 months | Power Type: | Diesel | Usage: | Water Well |
| Condition: | New | Power(W): | 45KW |
Product Description
SPJ-1000 water well drilling rig
1.The features of SPJ-1000 water well drilling rig
is mainly used for drilling and exploration of hydrology and water wells within 1000 meters, which is suitable for soil, rock and gravel layers.
The SPJ-1000 water well drilling rig adopts mechanical transmission and rotary table driving drilling tool to achieve footage. It has the characteristics of large output torque, strong lifting ability and wide speed range. The drilling rig has windlass, derrick with truss type "A" type tower or four corner towers. The drilling rig is a bulk structure, with strong decomposition ability and easy transportation. It can also be processed into trailer or vehicle mounted.
2.The specifications of SPJ-1000 water well drilling rig
Drilling depth | 1000m | |
Borehole diameter | 500mm | |
Rotary table diameter | 1200mm | |
Rotary table latus rectum | 670mm | |
Rotary table weight | 2050kg | |
Rotary speed | 36/60/90/130r/min | |
Active drilling pipe | 133*133*12mm | |
Drilling pipe | 89mm or114mm | |
Main windlass | single rope lifting force | 60t |
Assistant windlass | single rope rated lifting force | 30t |
Windlass power | 45kw | |
