Aluminum Fold up Glass Window Design

Aluminum Fold up Glass Window Design thumbnail-1
Aluminum Fold up Glass Window Design thumbnail-2
Aluminum Fold up Glass Window Design thumbnail-3
Aluminum Fold up Glass Window Design thumbnail-4
Aluminum Fold up Glass Window Design thumbnail-5
Aluminum Fold up Glass Window Design photo-1

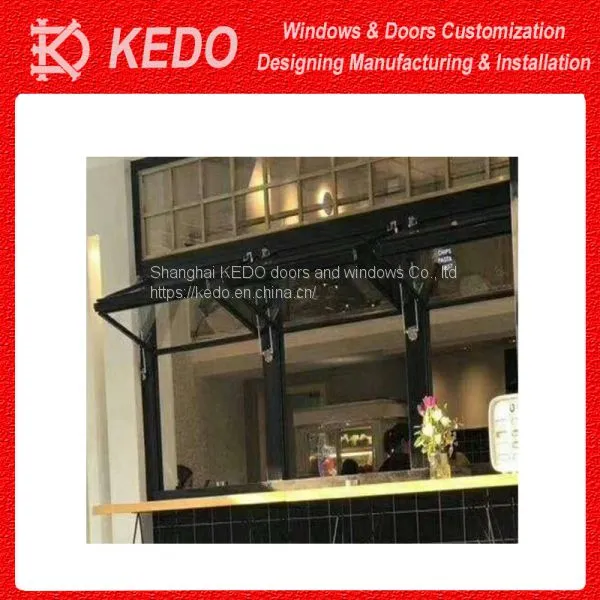

Aluminum Fold up Glass Window Design photo-2

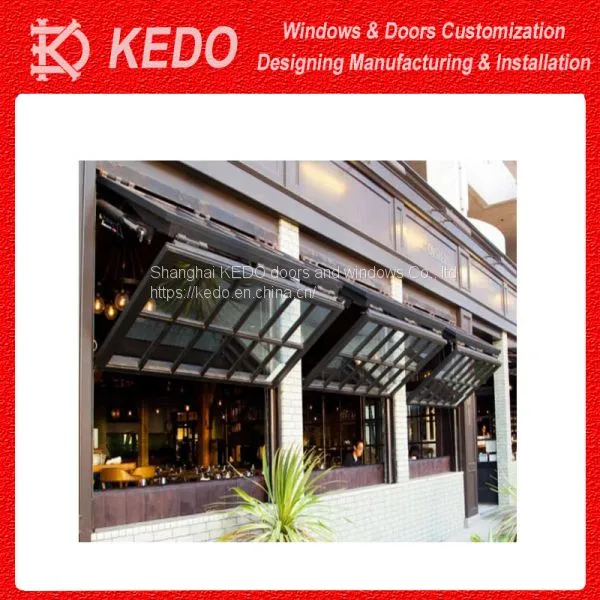

Aluminum Fold up Glass Window Design photo-3

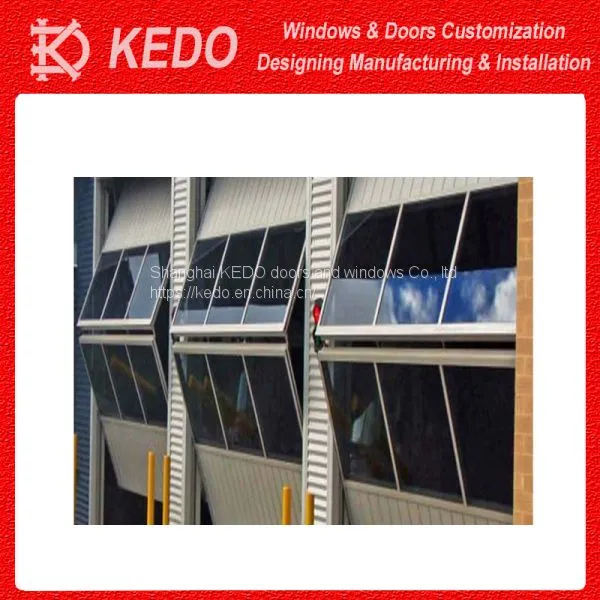

Aluminum Fold up Glass Window Design photo-4

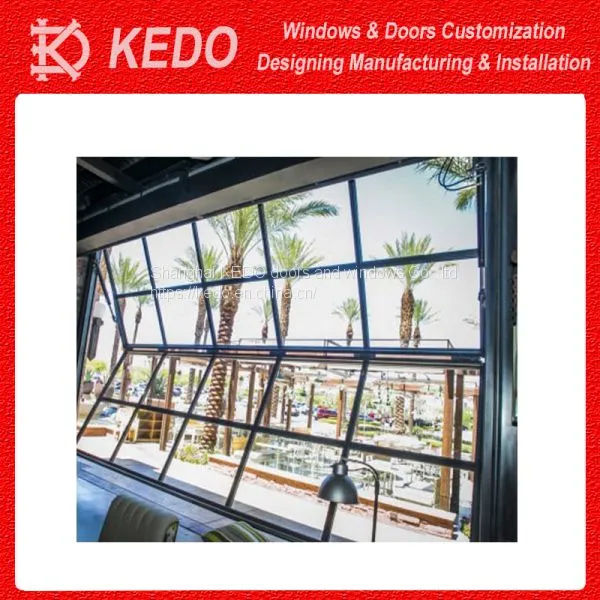

Aluminum Fold up Glass Window Design photo-5
US$ 560 - 780 MOQ: 50 Square Inches
Key Specifications
Get Latest Price
Place of Origin:
China
Type:
Basement Windows
Frame Material:
Aluminum Alloy
Contact Supplier Request Quote Chat Now
Shanghai KEDO Doors And Windows Co., Ltd
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin China
Type Basement Windows
Frame Material Aluminum Alloy
Opening Pattern Vertical
Open Style Folding
KEDO WINDOWS SPECIFICATION
MODEL NO.: S75K
BRAND: KEDO
APPLICATIONS:  Home: Residential house, villa, apartment and etc.
Commercial:  Commercial building, school, restaurant, factory and etc.
TYPICAL INSTALLATIONS: Roof, sun room , basement, atrium and etc.
MAIN FUNCTIONS:  Ventilation, daylighting, smoke extraction, night lighting, fire protection, access etc.
ADVANTAGES:  1. Excellent waterproof performance.
2. High strength aluminum frame for heavy duty and big size.
3. Durable motorized drive system and stable control system.
SIZE: 1. Customized according to the opening size.
2. Minimum size: 1m*1m, 1m =
3. Maximum size: 2.5m*4m, 1m =
OPEN WAY: 1. DC motor driving with open height 500mm;
2. Remote control.
3. Rain sensor control.
FRAME MATERIAL: Top level extruded Aluminum alloy 6063 T6.
FRAME SIZE:  Width 100 mm, height 168 mm, wall thickness 3-6 mm, multi-chamber structure.
FRAME COLOR: 1. Standard colors: Sandy gray or sandy brown or sandy white and silver gray.
2. Customized according to requirements.
SURFACE TREATMENT: Powder coating.
SEAL STRIP: EPDM rubber sealing strip (HAIDA).
GLASS: Option 1 - 6+27A+6 with built-in blind.
Option 2 - 8mm or 6+1.14+6 or 5+1.14PVB+5+21A+6LOW-E or etc.
Option 3 - Customized according to requirements.
NET: Option 1 - Plastic dust proof fly net from Amidolocgy, manual open or fixed.
Option 2 - Stainless steel wire mesh, manual open or fixed.
BLIND: Hollow glass built-in sun shading system optional, remote control.
LIGHTING: LED strip, 4000 K, remote control.
PACKAGING: 1. Standard packaging: Bubble bag wrapped then wooden case.
2. Customized according to customer requirements
DELIVERY TIME: In 35 days
WARRANTY: 3 years


Product Tags: Toughened Glass Thermally Broken Window , B&W Aluminium Windows and Doors , Aluminum Horizontal Bifold Folding Window
