Feature
A kind of safety valve capable of preventing malfunctioning.
Being a semi-automatic type, the valve does not operate freely like an ordinary solenoid valve by turning on or off of the power.
Packed type
Free from any fear of burnout or insulation degradation as the coil and movable core do not come into contact with fluid.
Easy to operate manually.
You can just press the palm ratchet button.
We offer two types of operation and with the operation when the power during a power outage.
Standard specification
FLUID
CLEAN AIR
FLUID TEMPERATURE
-20 ～ 60℃
AMBIENT TEMPERATURE
-20 ～ 60℃
DUTY CYCLE
100% CONTINUOUSLY RATED
OPERATING VOLTAGE RANGE
+10，-15％
WORKING PRESSURE
0 ～ 0.99MPa
Cv. FLOW FACTOR
0.58
ELECTRICAL SPECIFICATIONS
See below
ELECTRICAL SPECIFICATIONS
AC |
DC |
|||
V/Hz |
INRUSH A |
HOLDING A |
V |
A |
100/50 |
2.8 |
0.50 |
24 |
0.91 |
100/60 |
3.1 |
0.56 |
48 |
0.53 |
110/60 |
2.6 |
0.46 |
100 |
0.24 |
200/50 |
1.4 |
0.25 |
110 |
0.26 |
200/60 |
1.6 |
0.28 |
125 |
0.20 |
220/60 |
1.3 |
0.23 |
||

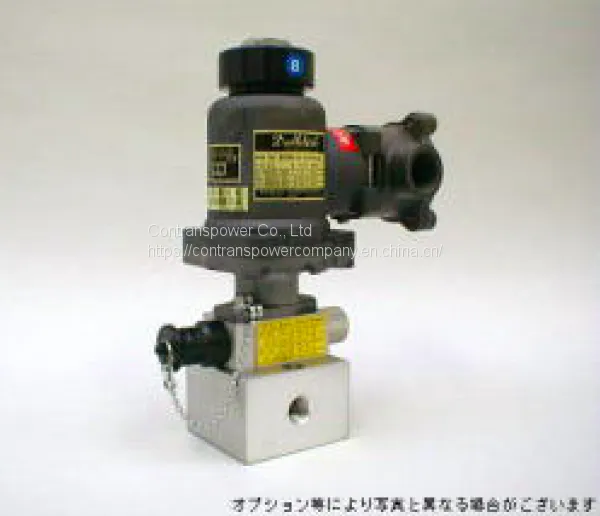

Product Image
M51 AC GENERAL PURPOSE TYPE
M51-8 ～ 10 AC GENERAL PURPOSE TYPE | ||
NOMINAL DIAMETER |
MOUNTING LENGTH |
H |
8 |
40 |
274 |
10 |
40 |
274 |
M51 DC GENERAL PURPOSE TYPE
M51-8 ～ 10 DC GENERAL PURPOSE TYPE | ||
NOMINAL DIAMETER |
MOUNTING LENGTH |
H |
8 |
40 |
294 |
10 |
40 |
294 |
M51 AC EXPLOSION-PROOF TYPE
M51-8 ～ 10 AC EXPLOSION-PROOF TYPE | ||
NOMINAL DIAMETER |
MOUNTING LENGTH |
H |
8 |
40 |
308 |
10 |
40 |
308 |
M51 DC EXPLOSION-PROOF TYPE
M51-8 ～ 10 DC EXPLOSION-PROOF TYPE | ||
NOMINAL DIAMETER |
MOUNTING LENGTH |
H |
8 |
40 |
312 |
10 |
40 |
312 |
