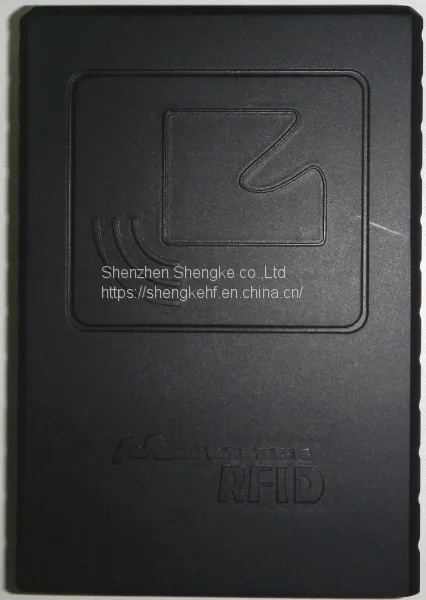

MR6261E UHF RFID Reader base on new generation reader technology platform development ，combine UHF RFID advanced technology and many years reader application base experience，This reader Is more stable and can use in various applications
2 ProtocolISO18000 Part 6 Parameters for air interface communications at 860MHz to 960MHz>
EPC RFID Protocols Class-1 Generation-2 UHF RFID Protocol for communications at 860MHz to 960MHz>
3 Parameter
Item: |
Parameter |
Frequency: |
US（902～928MHz）, China（920～925MHz）, EU（865～867MHz）, other frequency selectable |
Protocol: |
ISO18000-6C,EPC G2 |
RF power: |
0～31dBm adjustable |
Sensitivity: |
-80dBm(3dBi antenna more than 3 m） |
Read speed: |
Multi tag-200pcs/second, single tag 2000 times/minute |
Processor: |
ARM CORTEX M3 100M CPU |
Memory: |
16KB tag data memory and 32KB Ferroelectric memory |
Data Interface: |
100M Ethernet Interface |
RS232/RS485 interface wiegand 26/34 | |
One team input and one team output（TTL)，one team Relay | |
Power Supply: |
DC+9V～+15V |
Working Temp.: |
-20～60℃ |
Reader Support EPC G2 tag: Multi tag query, read, write, selection, Single tag read, write, lock, kill
4.2 Working Parameter SettingUser can set the parameter of interface, IP address, Jump Frequency point, output power, reading indication, working mode etc; When in Timing or Trigger mode, can set the parameter of read Card type, read area, address, length, output method, output interface
4.3 Communication FunctionSupport Ethernet, RS232 and RS485 both-way communication interface，protocol compliant to《UHF RFIDreader and PC communication protocol V2.0》；Also reader support weigand single way data transmission interface， format compliant to Wiegand 26 and Wigand 34 interface protocol
4.4 Off-line working modeSupport timing read or trigger read working mode，all tags in query area can be read according to set address and length，read data direct output or buffer. Read data can selected for filtering same tag. Output data interface can be any one of interface or multiple interface， meanwhile can configure relay
Data buffer have power-off function preserves.
4.5 Maintain and update functionsSupport web network server function, can set working parameter on Web page, reader also support Serial port and RJ45 port upgrade in the application firmware
