Help CenterThe More Portable and High Efficiency 10 kw Gantry Drilling Machine With Diesel for Sale
Related Products
-
The More Portable10 Horse-power Gantry Drilling Machine With DieselUS$ 600 - 1200MOQ: 1 Set -
The More Portable 7.5 Horse-power Gantry Drilling Machine With DieselUS$ 600 - 1200MOQ: 1 Set
-
Hydraulic Lift Electric Drilling Rig With High EfficiencyUS$ 1100 - 1500MOQ: 1 Set
-
Automatic Hydraulic Feeding Mechanism XY-2 Core Drilling Machine With Good PerformanceUS$ 2500 - 2900MOQ: 1 Set
-
SPJ-400 Engineering Drilling Rig With Good Quality and Easy to OperateNegotiableMOQ: 1 Set

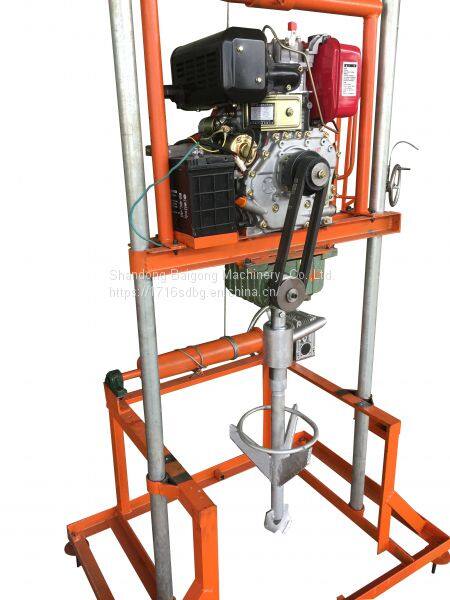

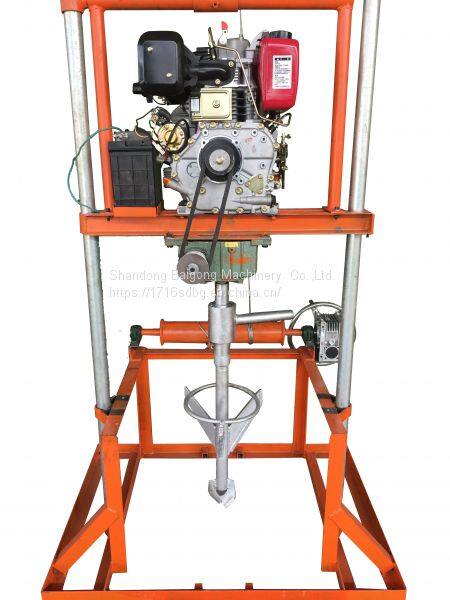

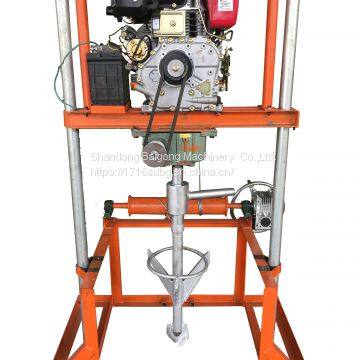

The gantry diesel drilling machine is a new type of civil drilling machine that is more portable ,efficient and practical based on long-term practice and based on different types of well drilling technology equipment.The product is easy to install,labor-saving and easy to operate.It can be operated by two people.Generally,mortar stone,weathered stone and small pebbles can be applied.The diamond drill bit can be used to replace granite.
The small drilling machine has a small footprint and can be moved by a person with a light weight after disassembly.The height is 2.5 to 3 meters,and the operation can be installed inside and outside the house.The most heavy-duty engine after disassembly is only 48kg.
With different drill pipe drill bits,it can realize the drilling operation of plastic pipes and PVC pipe deep water wells in plain area is 30m/hour.
The drill bit has strong wear resistance and stone breaking ablity.
·The mainframe includes the frame, gantry pole, gasoline engine, deceleration system, water sealing system, etc. It does not include the water supply system, and the drill bit needs to be equipped separately.
· It has a wide range of practicability. It can be drilled with auger rods or with a center tube.
Parameter |
unit |
Gantry drilling machine (diesel electric start) |
|
Drilling depth |
M |
Ø100mm |
160 |
Ø220mm |
80 |
||
Ø300mm |
30 |
||
Drilling rod diameter |
mm |
26、32、42、48 |
|
Drilling rod length |
M |
1、1.5、2 |
|
Pump pressure adapts to drilling depth |
M |
120 |
|
Drive the drill rod speed |
r/min |
150 |
|
Workbench footprint |
㎡ |
1 |
|
Drilling tower height |
M |
3.5 |
|
Unit part max weight |
Kg |
48 |
|
Unit part max length |
M |
3 |
|
Total weight |
150（not including drilling rod） |
||
Winding speed |
M/s |
0.5 |
|
Diesel engine model |
TB188F |
||
Power |
Kw |
7 |
|
