Manufacturing Tension Controller Magnetic Damper
- 1000000 Piece / Pieces per Month
- Shenzhen
- T/T L/C D/P D/A Credit Card PayPal Other Cash Escrow
- 5 days
- Pneumatic joint spring clip, gas pipeline joint switch clip, tracheal connector spring clip. SUS304 stainless steel material, durable and long-lasting.
- Component sealed casing, motor stretched casing. stainless steel stretching parts, electronic component shielding cover, sensor stretching shell.
- Potentiometer housing stretching parts, stainless steel stretching parts, electronic component shielding cover, sensor stretching shell.
- American standard plug, charger plug., American standard 23.3 * 6.25 * 1.45mm plug, H65 brass material, nickel plated, without burrs.
- Pneumatic quick connector spring clip, quick connector switch clip, tracheal connector spring clip. SUS304 stainless steel material, durable and long-lasting.
- Power inductor housing,Inductor housing, 8PIN common mode inductor housing, integrated electrical SMD housing, plastic packaging housing. WH-9100 material+C5191 copper terminal. Good high temperature resistance and easy welding.
Product Details
Brand Name: | Pumila | Place of Origin: | China | Model Number: | Custom |
Product Description

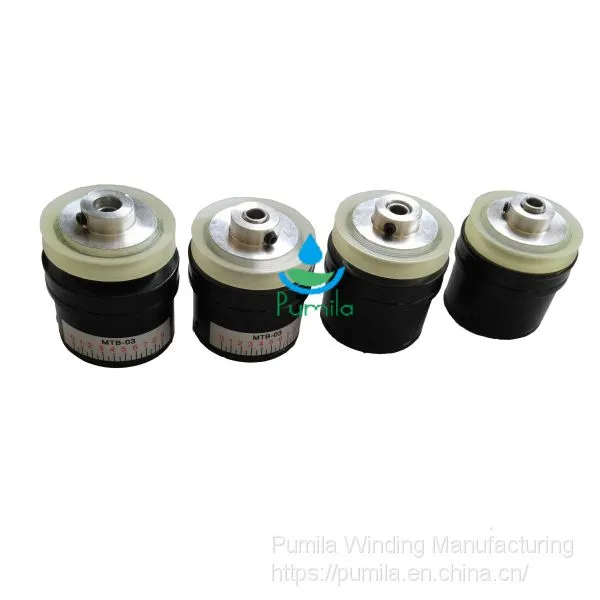

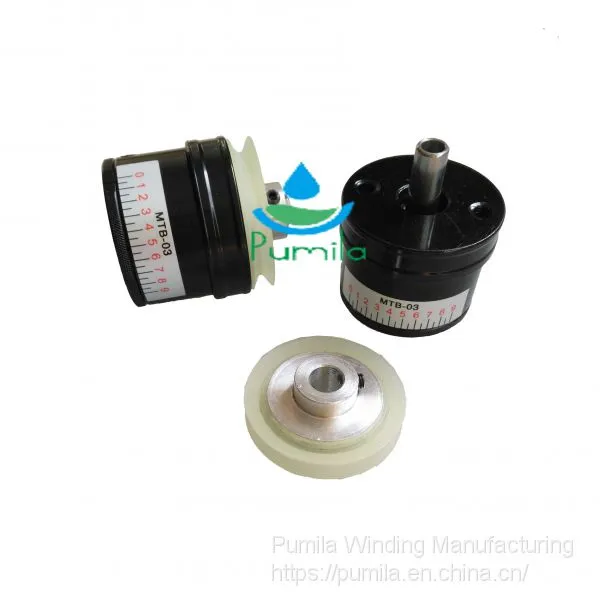

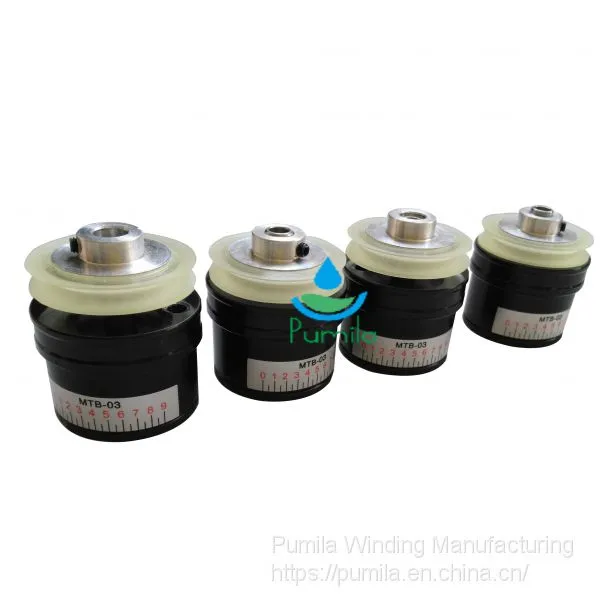

Introduction of magnetic damper
1. The magnetic damper and name tension controller, tension control or brake, is a constant torque transmission medium of the magnetic field of the device.
Damping disk with magnets, no sliding friction without contact, the service life is long, tension control extremely stable.
2. Installation simple structure, the output torque is convenient adjustment.
3. Structure compact design, small size, can be in all sorts of steady work position.
Usagage of Magnetic Damper
Recommends that customers will scale value transferred to use 4 or above, if this time tension too large, had better choose a smaller size specifications of damper. If in scale value below 4, may have used the pulse of the force. Please click HouXiang 3 stated way eliminate pulse. Loosen screw, will turn to 10, turn the scale axis at the same time slow will scale turn to 0, and then turn to Scale needed to tighten lock screw, value. If use appeared in the process of tension, please repeat the above phenomenon pulsation adjustment method 3 steps until the satisfied tension. Damper magnet produce media magnetic field, use material, the use of large brittle do not open it, lest attaint parts.
Specification of magnetic damper
Model | Applied wire diamiter(mm) | Tension scope(cn) |
MTB-02 | Φ 0.04_ φ 0.08 | 10g_ 50 g |
MTB-03 | Φ 0.09_ φ 0.15 | 40g_ 150 g |
MTB-04 | Φ 0.16_ φ 0.50 | 160g_ 1200 g |
MTB-05 | Φ 0.40_ φ 1.00 | 200g_ 2000g |
MTB-06 | Φ 1.00_ φ 3.00 | 800g_ 3600g |
MTB-08 | Φ 3.00_ φ 6.00 | 3600g_ 6500g |
Advantage of our coil winding components magnetic damper
1. Precise tension of magnetic damper
2. Competitive price of magnetic damper
3. Excellent quality of tensioner
4. Various kinds of tensioners for choosen including mangetic tension, electronic tensioner,
Mechanical tensioner and servo tensioner.
5. Fast response speed
6. Professional tensioner engineering team
7. Good after-sales service
FAQ
1. Q: What is the MOQ of coil winding tensioner and magnetic damper?
A: One set of tensioner is welcomed.
2. Q: What is the lead time of sample of coil winding tensioner and magnetic damper?
A: 3-5 days for the tensioner.
3. Q: What is the lead time for mass production of tensioner and magnetic damper?
A: 7-10 days or depends on the quantity.
4. Q: What is the payment term?
A: TT, Paypal, West Union or upon agreement.
5. What is the contact method?
Contact
Please click send message to get more detail information, thank you!
Any inquiry please contact amber@pumilatech.com
