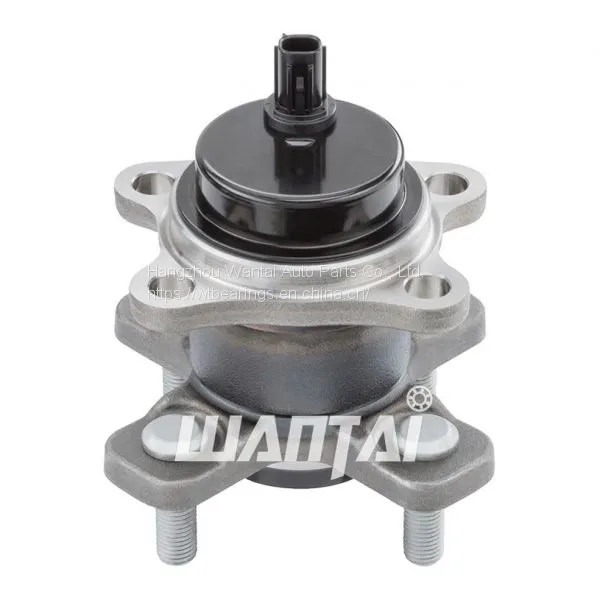

SCION Wheel Bearing 512522
Manufacturer / OE Number
Scion Wheel Hub Assembly bearing 42450-74010
Correspond Number
Marka |
Number |
SKF |
BR930848 |
TIMKEN |
HA590472 |
Suitable Vehicles of Scion Wheel Hub Assembly bearing
Manufacturer |
Model description |
Modelyear |
SCION |
IQ |
2012-2015 |
Product Information
Description |
Daten |
Bolt Circle Diameter A |
3.9409 in |
Bolt Circle Diameter B |
3.9409 in |
Brake Pilot Diameter |
2.1653 in |
Hub Pilot Diameter |
2.9055 in |
Bolt Hole Size |
0.4921 in |
Bolt Size |
M12X1.5 |
Flange Diameter |
5.3464 in |
Flange Offset |
2.3622 in |
Sensor Ring |
YES |
Number of Bolts |
4 |
Number of Holes |
4 |
Wheel Pilot Diameter |
2.1259 in |
Steel Ball |
GCr15 GB/T18254 |
Inner Ring |
GCr15 GB/T18254 |
Outer Ring |
65Mn GB/T1222 |
Flange |
55# GB/T699 |
Steel Ball Hardness |
HRC61-65 |
Raceway Hardness |
HRC60-64 |
Inner Ring Hardness |
HRC60-65 |
Outer Ring Hardness |
HRC58-62 |
Flange Hardness |
HRC58-62 |
hub assembly are ground by diamond rollers.We make sure each product's grinding time is more than 90 seconds,so as to improve wheel hub accuracy and quality's stability.Wheel hub are 100% inspected,and the pass rate is over 99.5%. Warranty period is 50,000 kilometers per year. | |
