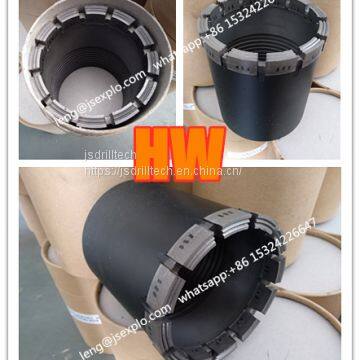

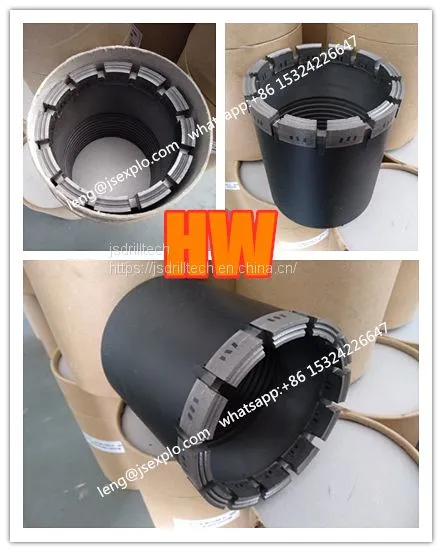

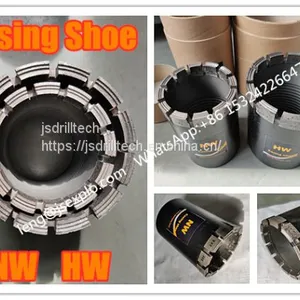

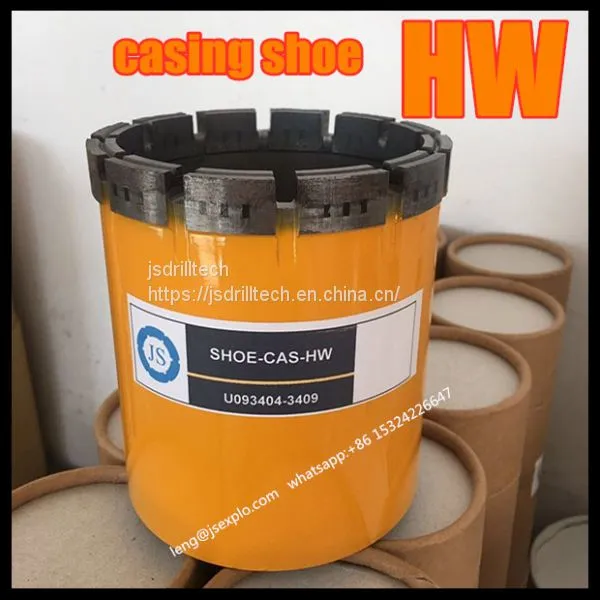

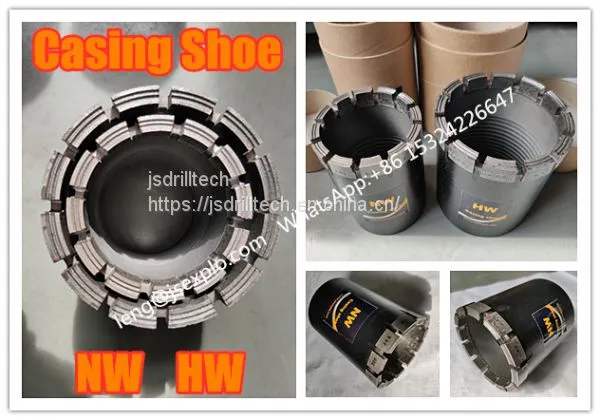

HW Casing Shoe Bit, Impregnated Diamond Core Drill Bits, Exploration Drilling, Rock Coring, Geotechnical Drilling Bits
US$ 50 - 200
MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
JINSHI
Place of Origin:
China
Model Number:
HW casing shoe
Payment & Shipping
Payment Methods:
Port of Shipment:
Tianjin
Delivery Detail:
7 days
Related Products
-
PW SW Casing Shoe Bits, Impregnated Diamond Core Drill Bits, Exploration Drilling, Rock Coring, Geotechnical Drilling BitsUS$ 50 - 200MOQ: 1 Piece -
PDC-HW PW SW Casing Shoe Bits, Impregnated Diamond Core Drill Bits, Exploration Drilling, Rock Coring, Geotechnical Drilling BitsUS$ 50 - 200MOQ: 1 Piece
-
NWT Casing Shoe Bit, Impregnated Diamond Core Drill Bits, Exploration Drilling, Rock Coring, Geotechnical Drilling BitsUS$ 50 - 200MOQ: 1 Piece
-
HWT Casing Shoe Bit, Impregnated Diamond Core Drill Bits, Exploration Drilling, Rock Coring, Geotechnical Drilling BitsUS$ 50 - 200MOQ: 1 Piece
-
PWT Casing Shoe Bit, Impregnated Diamond Core Drill Bits, Exploration Drilling, Rock Coring, Geotechnical Drilling BitsUS$ 50 - 200MOQ: 1 Piece
Brand Name
JINSHI
Place of Origin
China
Model Number
HW casing shoe
Material
Carbon Steel
Certification
Other, ISO
Type
Drill Bit
Use
Ore Mining
Processing Type
Forging
Machine Type
Drilling Equipment
Size:
JS bits are available in all standard drilling sizes . Also, non-standard sized bits can be produced according to requirements from clients.
Crown Height:
JS offers crown impreg depths of 9mm, 12mm, 16mm and 25mm .The taller crown heights provide improved bit stability and reduced vibrations, enhancing bit life and performance.
Waterways:
Various waterways are available for diamond impregnated bits. Differing waterways allow for better flushing in various ground conditions and drilling systems.
Threads:
standard threads as well as regional thread types required by clients are available.
Compatibility:
Our diamond bits and reaming shells are designed to be compatible with all standard core barrels from other suppliers.
Matrix: JS impregnated bits matrices can be selected according to the chart below
| Series number | Rock |
| 11 | magnetit,metamorphschist,gneiss,granite,basalt,gabbro,rhyolite,diorite,conglomerate,taconite |
| 10 | magnetit,metamorphschist,gneiss,granite,basalt,gabbro,rhyolite,diorite,conglomerate,taconite |
| 9/10 | andesite,pegmatite,hematite,magnetit,metamorph schist,gneiss,granite,basalt,gabbro,rhyolite,diorite |
| 9 | andesite,pegmatite,hematite,magnetit,metamorph schist,gneiss,granite,basalt,gabbro,rhyolite,diorite |
| 8 | dolomite,marble,peridotite,andesite,pegmatite,hematite,magnetit,metamorph schist,gneiss,granite,basalt |
| 7/8 | dolomitic limestone,schist,serpentine,hard & mica schist,siliceous limestone,dolomite,marble,peridotite,andesite,pegmatite,hematite |
| 7 | dolomitic limestone,schist,serpentine,hard & mica schist,siliceous limestone,dolomite,marble,peridotite,andesite,pegmatite,hematite |
| 6/7 | med-hard limestone,hard limestone,hard shale,dolomitic limestone,schist,serpentine,hard & mica schist,siliceous limestone,dolomite,marble,peridotite |
| 6 | med-hard limestone,hard limestone,hard shale,dolomitic limestone,schist,serpentine,hard & mica schist,siliceous limestone,dolomite,marble,peridotite |
| 5 | claystone,sandy limestone,soft schist,med-hard sandstone,siltstone,alluvial deposits,calcitic limestone,med-hard limestone,hard limestone,hard shale,dolomitic limestone |
| 4 | claystone,sandy limestone,soft schist,med-hard sandstone,siltstone,alluvial deposits,calcitic limestone,med-hard limestone,hard limestone,hard shale,dolomitic limestone |
| 3 | soft shale,chalk,marly shale,med-hard limestone,salt,frozen soil&ice,soft sandstone,sandy shale,claystone,sandy limestone,soft schist,med-hard sandstone,siltstone,alluvial deposits,calcitic limestone |
| 2 | soft shale,chalk,marly shale,med-hard limestone,salt,frozen soil&ice,soft sandstone,sandy shale,claystone,sandy limestone,soft schist,med-hard sandstone,siltstone,alluvial deposits,calcitic limestone |
| 1 | sand,soft shale,chalk,marly shale,med-hard limestone,salt,frozen soil&ice,soft sandstone,sandy shale,claystone,sandy limestone,soft schist |
Size Available as followings:
AQ, BQ, NQ, HQ, PQ/AQTK, BQTK, BQ3, NQ2, NQ3, NQTT, HQ3, HQTT, PQ3, PQTT T2 series: T2 46, T2 56, T2 66, T2 76, T2 86, T2 101 T6 series: T6 76, T6 86, T6 101, T6 116, T6 131
T series: T36, T46, T56, T66, T76, T86
Non-standard also can be made as your demand
