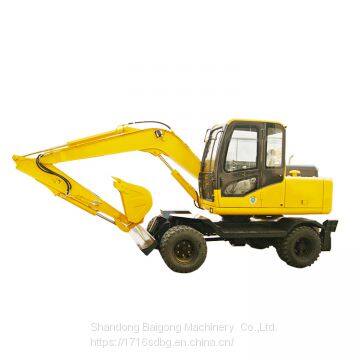

Help CenterDLS880-9A 8 Tons Wheeled Hydraulic High-quality and Stable Performance Excavator
Related Products
-
Hot Sale and Stable Performance High-quality the Small Mini ExcavatorNegotiableMOQ: 1 Set -
DLS880-9A 8 Tons Wheeled Hydraulic Good Perfprmance and High Quality Excavator for SaleNegotiableMOQ: 1 Set
-
Hot Sale High-quality the Small Mini ExcavatorNegotiableMOQ: 1 Set
-
Hot Sale High Efficiency the Front-loading and Excavating MachineNegotiableMOQ: 1 Set
-
The Small Mini High-quality and Stable Performance ExcavatorUS$ 5000 - 13000MOQ: 1 Set
The wheeled hydraulic excavator is mainly used for construction of new rural areas, urban greening, excavation ditches, tree pits and other projects.
• Hydraulic components Adopt internationally renowned rotary speed reducers and pilot control valves.
• Connector The world's top 500 EATON company's world-class products, suitable for the harsh conditions of various types of excavators, earthquake-resistant, anti-loose, with a high degree of reliability and long service life alone.
• Structural parts Adopt domestic high-quality 16Mn steel, welding technology and international integration, greatly increasing the structural strength and ensuring the safety of driving and construction. The whole vehicle shot blasting treatment increases the adhesion of the paint, delays the embroidering of the parts, and improves the life of the parts.
• Computer monitor The CPU of the central processing unit fully monitors the operation of the whole vehicle, prompts the fault and prompts the function, and provides intelligent protection for the starter.
• Radiator The radiator is an aluminum plate multi-fin radiator with vacuum brazing technology to promote turbulence, improve heat transfer coefficient, and low hydraulic flow resistance, even in hot summers.
• Walking The walking adopts domestic leading mechanical transmission, which has fast driving speed and is suitable for long-distance transfer, saving transit costs and convenient and quick maintenance.
• Steering system Hydraulic power steering, smooth operation, light and flexible.
Quality of work: 7600KG
Bucket capacity: 0.3 m3
Power: 48Kw/2300rpm
55 Kw/2300rpm
Work pressure |
22 Mpa |
Limited Data |
55*2L/min |
Swing speed |
9.2rpm |
Walking speed |
30km/h |
Bucket digging force |
50kN |
Arm digging force |
25Kn |
Largest traction |
43.2kN |
Maximum torque |
230N.m/1800rpm |
Gradeability |
20° |
Fuel tank capacity |
125L |
Hydraulic oil tank |
105L |
Rated displacement |
2*25ml/r |
Total width |
2700mm |
Total height |
2710mm |
Total length |
6355mm |
Counterweight ground clearance |
985mm |
Minimum ground clearance |
280mm |
Tire gauge |
1560mm |
Wheelbase |
2310mm |
Dozer blade (wide) |
2024mm |
Dozer blade (high) |
310mm |
Boom length |
3500mm |
Stick length |
2000mm |
Maximum digging distance |
6758mm |
Maximum digging depth |
4721mm |
Maximum digging height |
6756mm |
Maximum unloading height |
4956mm |
Minimum radius of gyration |
2431mm |
Tail radius |
1951mm |
Maximum ground excavation distance |
6603mm |
Maximum vertical digging depth |
4481mm |
