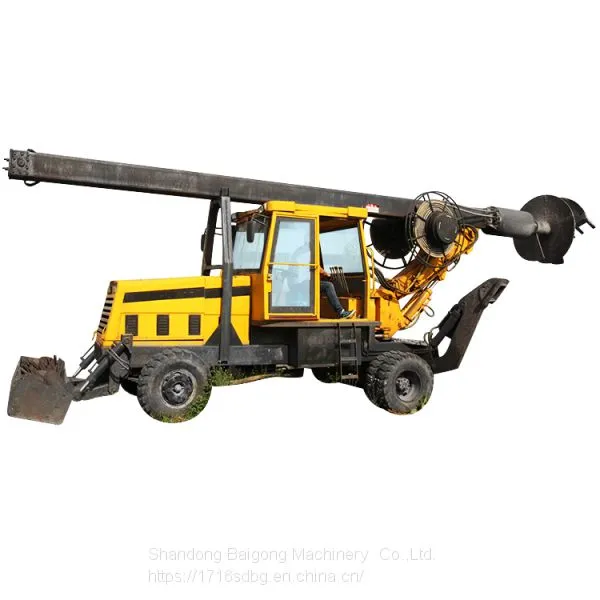

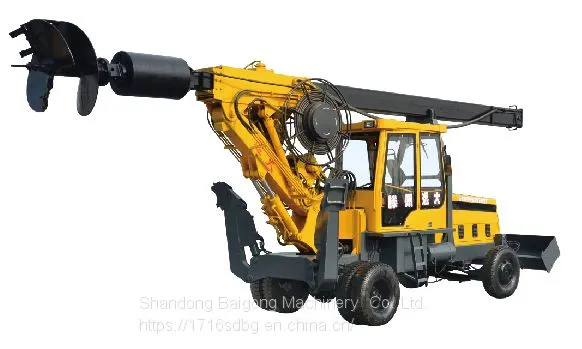

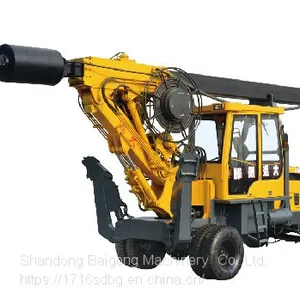

Wheel rotary drilling rigs are widely used in rural construction, electric power engineering, high-speed guardrail piling, photovoltaic power pile driving, landscaping, municipal engineering, geological exploration and other engineering projects.
The machine body is smart, easy to move, stable, strong horsepower, abundant power, high work efficiency, adjustable drill hole size, wide application range, low investment and fast cost recovery. It is the current price/performance ratio of small pile-driving machinery. The ideal product.
Specifications |
unit |
QF-15 |
Dimensions |
mm |
8400×2200×3250 |
Drilling diameter |
mm |
480-2000 |
Drilling depth |
mm |
15 |
Wheelbase |
mm |
3250 |
Track |
mm |
Top 1500 After 1160 |
power |
Kw |
100 |
Hydraulic oil |
MPa |
46# |
Work pressure |
MPa |
20-25 |
Maximum torque |
KN·M |
22 |
Rotating speed |
rpm |
40 |
Earth dropping speed |
rpm |
3 |
Pressure |
KN |
3 |
Lifting force |
KN |
5 |
Lift the itinerary |
mm |
5300 |
Swing angle |
° |
180 |
Walking speed |
Km/H |
50 |
weight |
Kg |
8500 |
