Product Description
Application
Metallurgy: Clearing slag, Demolition of furnace and foundation
Road: Repairing ,Breaking, Foundation work
Railway: Tunneling, Demolition of bridge
Construction: Demolition of building and reinforced concrete
Ship repairing: Clearing clam and rust from the hull
Others: Breaking Frozen mud.
1) Applicable for different brands of excavators, simple& convenient &comfortable operation, easy maintenance
2) High Quality & high precision, high stability &high durability.
3) Low rate of chisel breakage and high working efficiency
4) Wear-resistant and super heat treatment technology
5) Low noise, saving energy and protecting environment
6) Powerful Hydraulic System Increased the Impact of Nitrogen
7) ISO certified by local Authority
Product Parameters
| Model | Unit | LHB100 | LHB200 | LHB300 | LHB350 | LHB400 | LHB430 |
| Suitable Excavator | ton | 0.8-2.5 | 1.2-3.0 | 2.5-4.5 | 3.0-5.5 | 4-7 | 6-9 |
| Operating Weight | kg | 77 | 99 | 132 | 198 | 275 | 418 |
| Required Oil Flow | l/min | 15-30 | 20-40 | 25-50 | 30-60 | 40-70 | 50-90 |
| Setting Pressure | bar | 150 | 150 | 150 | 150 | 170 | 180 |
| Operating Pressure | bar | 90-120 | 90-120 | 90-120 | 100-130 | 110-140 | 120-150 |
| Impact Energy | joule | 203 | 271 | 406 | 542 | 677 | 1017 |
| Impact Rate | bpm | 800-1400 | 700-1200 | 600-1100 | 500-1000 | 500-900 | 400-800 |
| Hose diameter | inch | 1/2 | 1/2 | 1/2 | 1/2 | 1/2 | 1/2 |
| Noise level | dB | 106 | 107 | 109 | 117 | 109 | 115 |
| Chisel Diameter | mm | 40 | 45 | 53 | 60 | 68 | 75 |

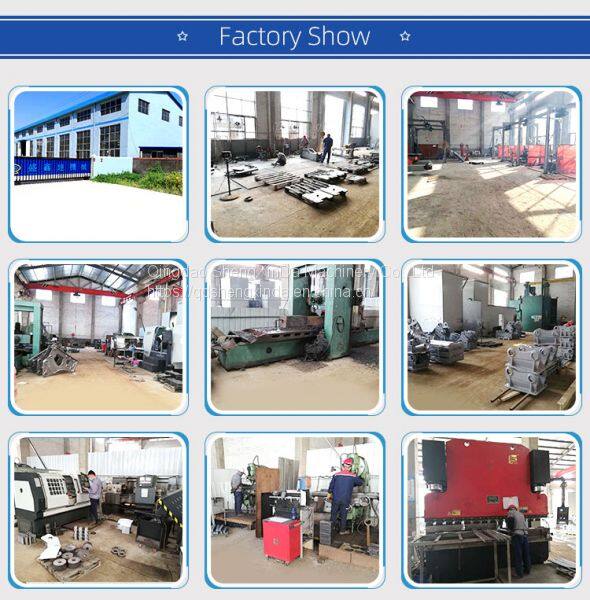

Factroy Show

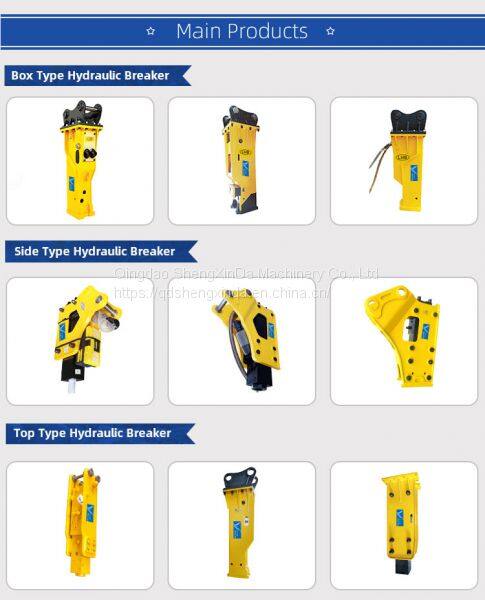

Main Products

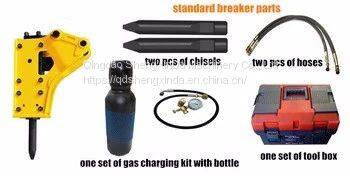

Standard Accessories
Hydraulic Breaker Standard Accessories as follows:
1) Chisel: 2 pcs
2) Oil Hose: 2 pcs
3) Repair Tool with Tool Box: 1 set
4) Nitrogen pressure gauge: 1 pc
5) Nitrogen Gas Cylinder: 1 set
Payment&Delivery
Contact Information
Please tell us your excavator or backhoe loader model, or the hydraulic breaker which you want then I will send you our quotation.
