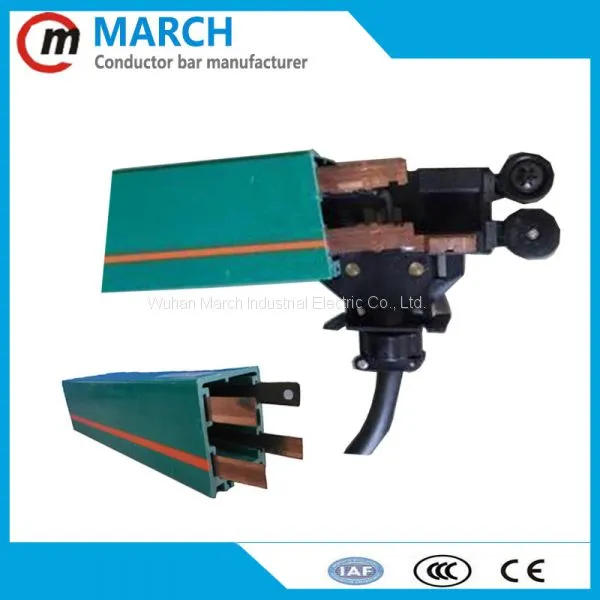

High quality Box conductor busbar with current collector waterproof strip joint box
| Type | Weight (kg) | Poles | Power rating (v) | Order- NO |
| 56DJ-4/25 | 0.49 | 4 | 25A | 561001 |
| 56DJ-4/40 | 0.52 | 4 | 40A | 561002 |
| 56DJ-4/60 | 0.99 | 4 | 60A | 561003 |
| 56DJ-4/80 | 1.23 | 4 | 80A | 561004 |

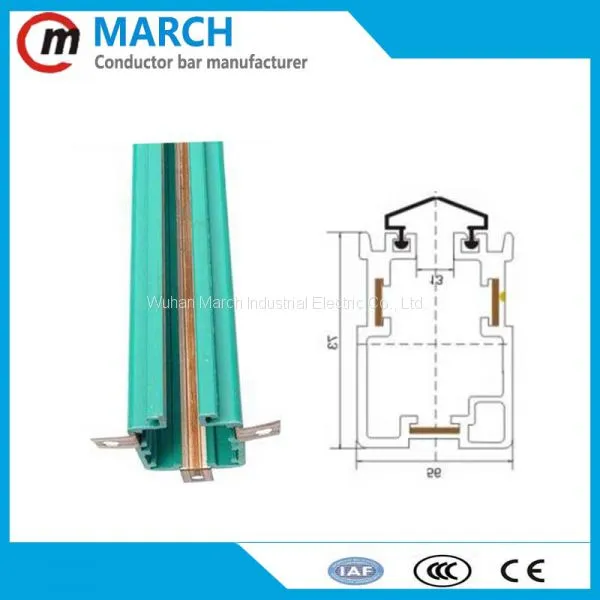

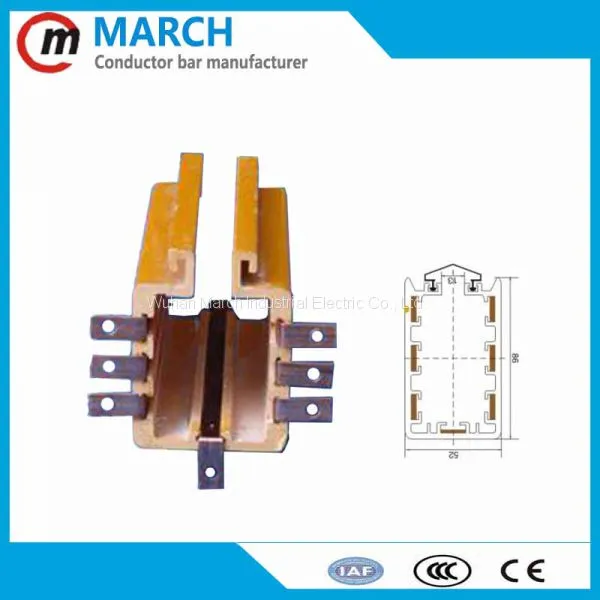

HFP56 Enclosed Conductor Bar Specification
| Type | Poles | Conductor crosssection (mm²) | MAX Current (A) | MAX Voltage(V) | Weight (kg) |
| MCCB56-4-8/35 | 4 | 8 | 35 | 600 | 2.09 |
| MCCB56-4-10/50 | 10 | 50 | 2.16 | ||
| MCCB56-4-12/65 | 12 | 65 | 2.23 | ||
| MCCB56-4-15/80 | 15 | 80 | 2.30 | ||
| MCCB56-4-20/100 | 20 | 100 | 2.43 | ||
| MCCB56-4-25/120 | 25 | 120 | 2.56 | ||
| MCCB56-4-35/140 | 35 | 140 | 2.95 | ||
| MCCB56-4-50/170 | 50 | 170 | 3.25 | ||
| MCCB56-4-70/210 | 70 | 210 | 3.85 | ||
| MCCB56-4-80/240 | 80 | 240 | 4.16 |
Ptotection Class: IP43
Standard Legnth: 4m
Min.R=0.8M
Support Spacing:For straight runs 1.2m
HFP56 Enclosed Conductor Bar Accessories

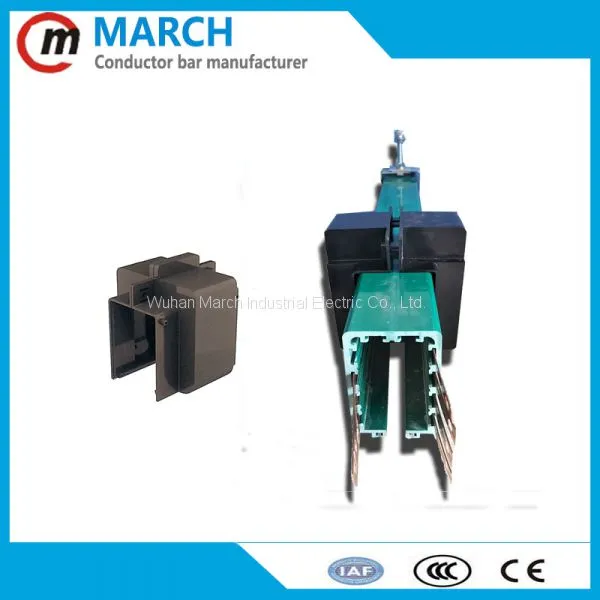

2. Jointing box
| Type | Weight(kg) | Material | Order-No |
| 56LJJ-1 | 0.091 | ABS | 562001 |
| 56LJJ-2 | 0.156 | ABS | 562002 |
3.Hanger (Anchor hanger, Sliding hanger, Fixpoint hanger)
| Type | Weight (kg) | Material | Order-No |
| 56DWJ-1 | 0.251 | Galvanized steel | 562003 |
| 56DJ-1 | 0.186 | Galvanized steel | 562004 |
| 56DJ-2 | 0.212 | Galvanized steel | 562005 |
4.End cap
| Type | Weight(kg) | Material | Order-No |
| 56DW | 0.071 | ABS | 563007 |
5.End feed and Middle feeding
| Type | Weight(kg) | Material | Order-No |
| 56DG | 0.225 | ABS | 563008 |
| 56ZG/500-X/M | 565001 |
Middle feeding with 0.5Meter powerail
6.Tow Arm
| Type | Weight(kg) | Material | Order-No |
| 56QYQ-1 | 0.53 | Galvanized steel | 566004 |
Payment : T/T, L/C, paypal
Packing :Wooden case or carton
Delivery time: 7-15 Working days after confirm the order
Wuhan March Industrial Electric Co.,Ltd ,
which founded in 2003, is a professional factory for mobile power , Insulated conductor bar power range from 60A to 2500A.Always keep provide Chinese factory price and Germany technical and quality gurantee is our advantage . !
Company currently has 120 professional and technical personnel, 20 advanced mechanical and electrical engineers , 30 senior technicians . A port machinery and after-sales personnel 50, crane installation and maintenance workers 30.
Application project ---Feedback from Customer
They are Widely used in :
Automobile Manufacturing, Coking, Metallurgy, Hoisting Machinery, Automated production lines , Automatic, Storage system, Port, Air port, Shipbuilding, Power Generation, Petrochemical industry, papermaking, Rapid rail transit system , play ground and many other areas.
