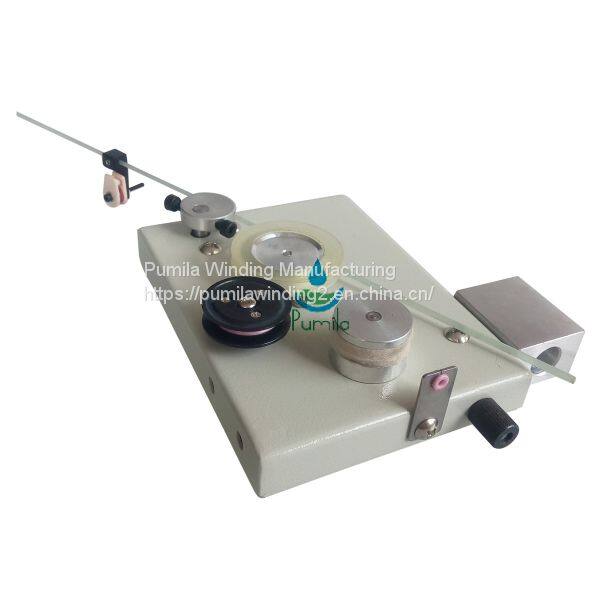

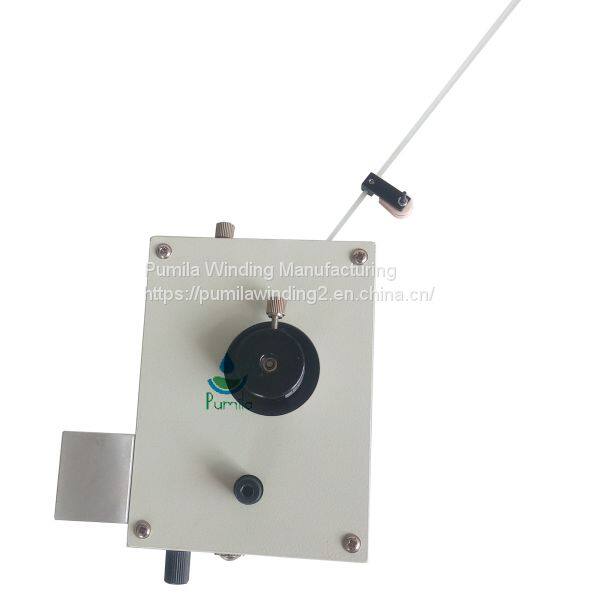

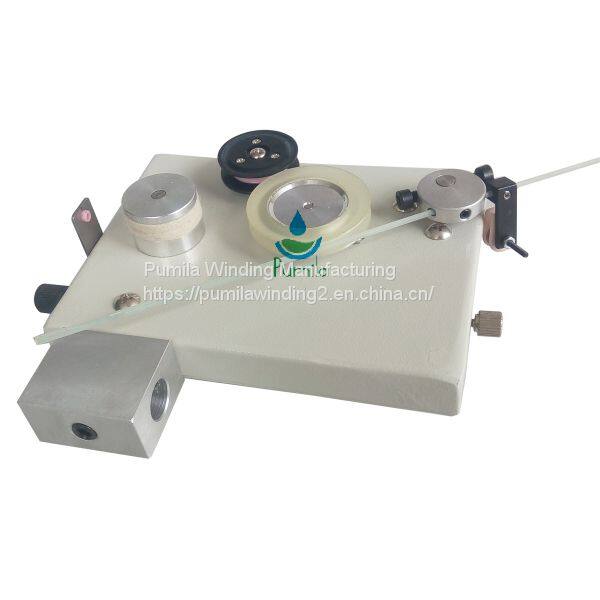

YZ Series Coil Winding Tension Device Mechanical Wire Tensioner
Product Name: YZ Mechanical Tensioner
Place of Origin: |
Dong Guan China |
Brand Name: |
KIMCHEN |
Model: |
YZ Series |
Tension test condition: |
Wire speeding 5m/s refer roundness Bobbin |
Application: |
Winding machine |
Function: |
Tension Control |
Product Size: |
135mm*160mm*35mm |
Weight: |
0.43KG |
Minimum Order Quantity: |
1 Piece |
Packaging Details: |
Carton With Foam |
Delivery Time: |
3 to 5 working days |
Payment Terms: |
T/T, Western Union, Money Gram, Paypal |
Supply Ability: |
5000 Pcs per month |
Detailed Product Description:
Mechanical Tensioner(tension device) is one of the vital parts in the coil winding process.It is used to ensure the consistency of the wire tension during the winding process.By using a tensioner,Wire Tension can be adujsted and pre-set to the require value according to the application so as to achieve appropriate winding condition,and to ensure the conformity of each coils technical parameters.
YZ Mechanical Tensioner Specifications:
Model |
Applied wire diamiter(mm) |
Tension scope(g.f) |
YZ3S |
φ0.02—φ0.04 |
2.5g—14 |
YZ2S |
φ0.04—φ0.08 |
9g—50 |
YZS |
φ0.06—φ0.14 |
20g—140 |
YZM |
φ0.12—φ0.40 |
70g—600 |
YZ2M |
φ0.18—φ0.45 |
120g—1000 |
