Double Wire Mesh Fence
- 50000 Set / Sets per Month
- tianjin
- T/T
Product Details
Material: | Other, Low carbon steel wire | Type: | Welded Mesh | Application: | Farm Fence |
Technique: | Welded Mesh |
Product Description

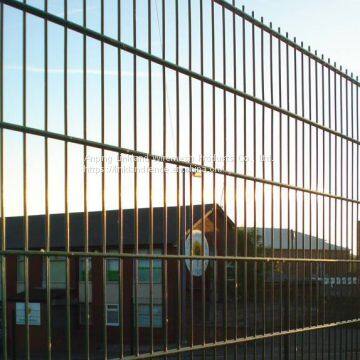

Double Wire Mesh Fence
Material: Low carbon steel wire
Wire: 6/5/6mm, 8/6/8mm
Mesh: 50*200mm,50*100mm, etc.
Height: 1.2m-3m
Width: 2-3m
Post: 60*60mm,80*80mm,100*100mm, etc.
Accessories: post caps, clips or flat bar, nuts and bolts
Surface treatment: Hot dipped galvanized, PVC coated, Powder coated
Packaging: pallets
Certificates: ISO9001, BV,SGS
Double wire mesh fence is made of heavy welded mesh panels with double horizontal wires. This complete professional fencing system provides both extreme rigidity and security. It is recommended for professional fencing of schools, playgrounds, parks, sports grounds, public buildings, factories, workshops, airports and military sites.
Construction site Mesh Panel Fencing gives the intruder little chance of a breakthrough. Use a sturdy clip to secure the panel to the steel column and secure it with a hexagonal safety screw. There are no visible fasteners on the back of the column. It is made of high quality low carbon steel wire and galvanized wire. It is then hot dip galvanized, powder coated or pvc coated. It looks modern and attractive.
Double wire mesh panel
The mesh aperture for this twin-wire type of welded mesh fence is 200mm x 50mm. Twin horizontal wires at each intersection give a rigid but flat profile to this mesh fencing system, with vertical wires at 5mm or 6mm and horizontal wires at 6mm or 8mm depending on the height of the mesh panel and the site application. The height of the mesh panel can be from 1.0M up to 2.4M, with the finish galvanized and polyester coated in a range of standard RAL colors. This system not only makes the panel extremely strong and stable but also makes the panel extremely difficult to cut through. The double wire mesh fencing system is among the most comprehensive, cost effective security fencing systems in the world today.
Posts
The Double wire mesh fence panels are attached with high strength steel posts. The common posts of the double wire mesh fence are SHS tube, RHS tube, Panels are fixed to steel posts using clips and flat bar, with no visible fixings on the back of posts.
Installation manner
1.The post popular buried under the ground 600mm-800mm and pouring concrete when installation them.
2.Welded flange base under the post ,and use setscrews to install on the hard ground.
