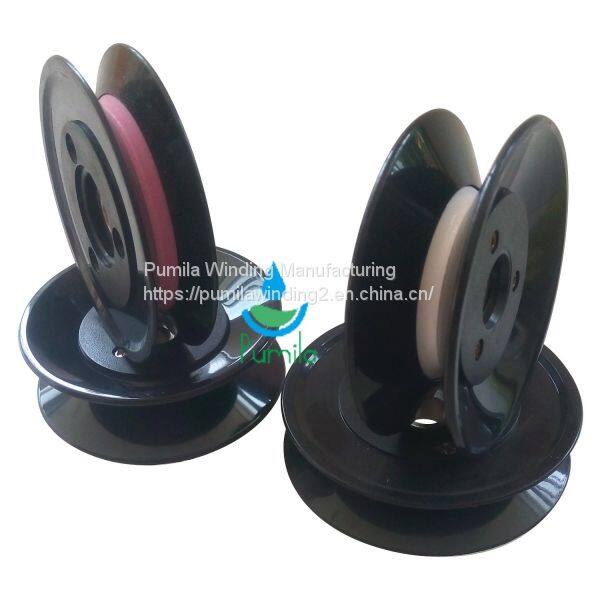

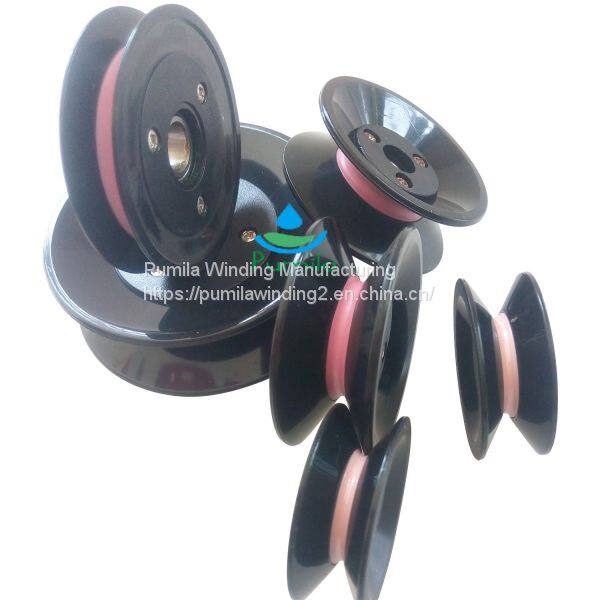

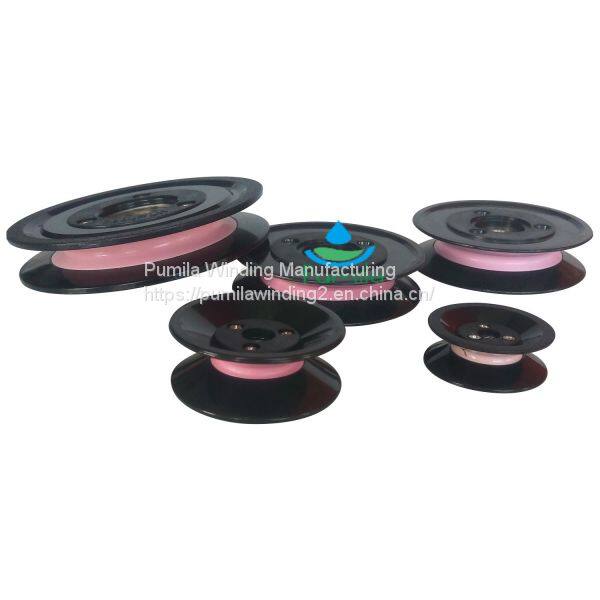

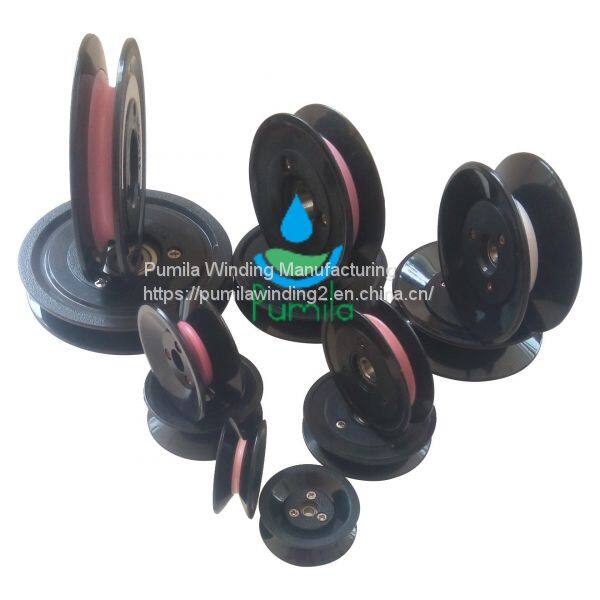

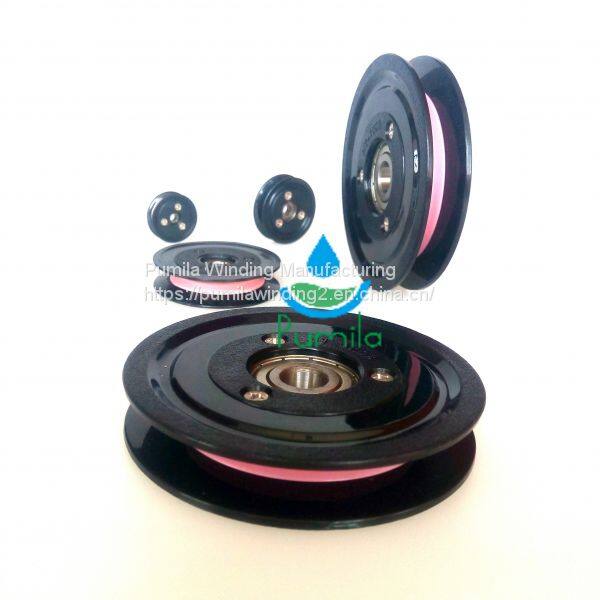

Winding Machine Ceramic Roller Wire Guide Pulley

Wire guide pulleys, Assembled ceramic pulley, Plastic v shape/belt/groove pulley

Description of the Wire Guide Pulley.
Plastic Flanged Ceramic Wire guide pulley is commonly used component when wire passing is required, it can be used in coil winding machine. cable machine and the textile machinery as well. The porcelain ring is mounted on the bearing. Coil winding wire guide pulley(wire roller) will rotate by the thread and wire passing on the surface of the ring. Thus the sliding friction has been converted to the static friction. But at the start and stop, in order to overcome the inertia. there will be a partial sliding friction. The surface polish degree of the porcelain ring reaches Ra0.2;the beating during rotation is under 0.15.We select the 99% AL2O3 as the material with the hardness of HRA88 and the density of 3.85.. Two nylon side walls have been put to the both side of the ceramic ring and the bearing, coil winding wire guide pulley (wire roller) combines one wire roller

If you're interested in our flanged plastic pulley for thread rope yarn coil winding tensioner pulley, welcome to buy the quality products at low price from our factory. As one of the leading manufacturers in China, we also support customized service. For more details, contact us now.

Advantage of our coil winding accessaries
1. Precise coil winding accessaries such as wire guide pulley, magnetic damper, electric brake and nozzles.
2. Competitive price
3. Excellent quality of tension device and accessaries
4. Fast response speed
5. Professional tensioner engineering team
6. Good after-sales service

FAQ
1. Q: What is the MOQ of coil winding accessaries?
A: It depends on products, for wire guide pulley-20PCS, nozzles-20PCS, other accessaries sample
Order is welcomed.
2. Q: What is the lead time of sample of coil winding accessaries?
A: 3-5 days for the accessaies,
3. Q: What is the lead time for mass production of coil winding accessaries?
A: 7-10 days or depends on the quantity.
4. Q: What is the payment term?
A: TT, Paypal, West Union or upon agreement.
