Wire Tension Device ,coil Winding Servo Tensioner for Coil Winding Machine
US$ 600 - 700
MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
Pumila
Place of Origin:
China
Model Number:
SET-B
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzhen
Delivery Detail:
7 days
Related Products
-
Coil Machine Parts Tension,servo Tensioner,wire Tension Device in Coil MachineUS$ 600 - 700MOQ: 1 Piece -
High Working Rate Servo Controller,servo Tensioner,tension Adjustment Knob for Industrial Sewing MachineUS$ 600 - 700MOQ: 1 Piece
-
Applied in Coil Winding Machine Servo Tensioner for Tension ControlUS$ 600 - 700MOQ: 1 Piece
-
Coil Winding Tensioner, Servo Tensioner, Auto Chain Tensioner.US$ 600 - 700MOQ: 1 Piece
-
New Arrival New Type Auto Chain Tensioner,coil Winding Servo Tenioner,wire Tension DeviceUS$ 58 - 145MOQ: 1 Piece
Brand Name
Pumila
Place of Origin
China
Model Number
SET-B

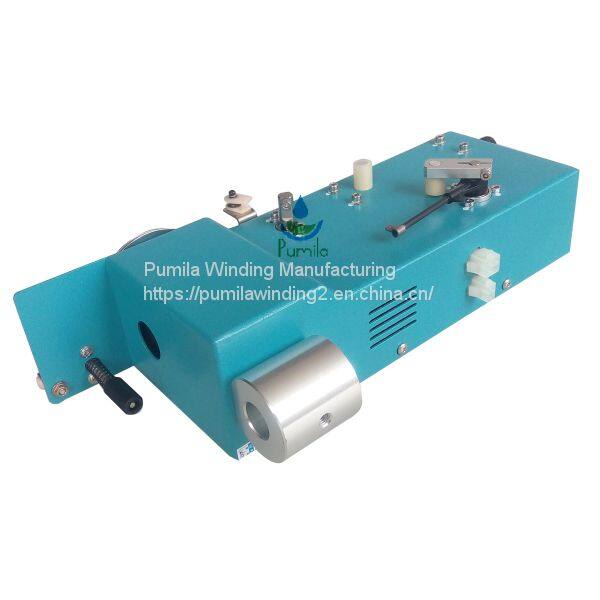

Standard servo tensioner SET-B series coil winding wire tensioner
| Model | Applied wire diamiter(mm) | Tension scope(g.f) |
| SET-100-B | φ0.01-φ0.12 | 1g-100 |
| SET-200-B | φ0.02-φ0.17 | 2g-200 |
| SET-300-B | φ0.03-φ0.22 | 5g-300 |
| Characteristic: | The tension roller is fixed in front of tensioner body |
| Wire Speeding: | 5m/s |
| Power: | DC24V |
| Electric Current: | 1.2A |
| Product size: | 250mm*130mm*65mm |
| Weight: | 1.39KG |
Product Description:
Servo tensioner Set-B series : The linear speed of standard type is 5m/s, and it can be customized that according to your special requirements.
Servo tensioner is sent from the traditional passive-line change to take the initiative to send lines from the motor, by replacing the spring tension to change its value, this product comes with tension feedback stabilization system that can automatically tension stable equilibrium. Tension is not speed, wire cover, pulleys, and felt the impact of tension in particular stable and easy to adjust.
