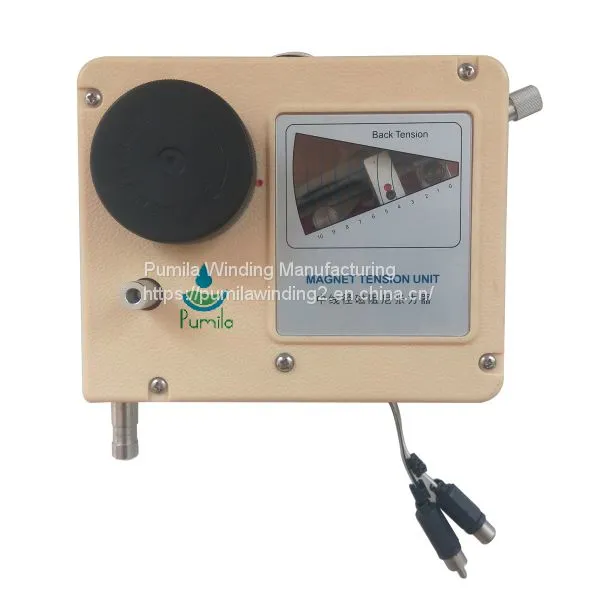

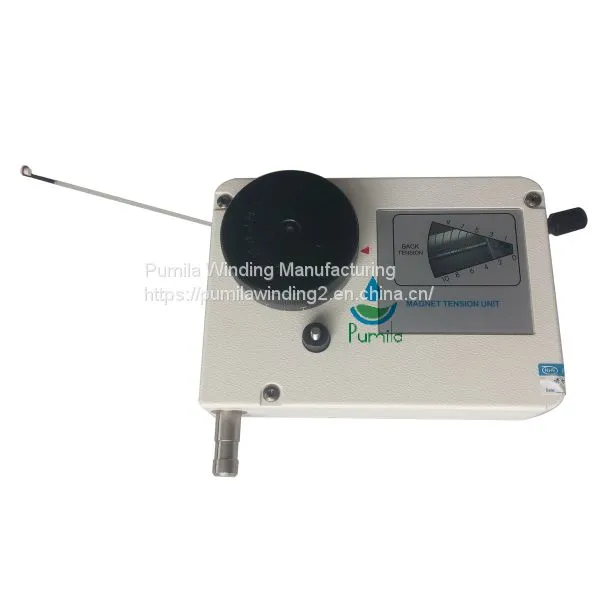

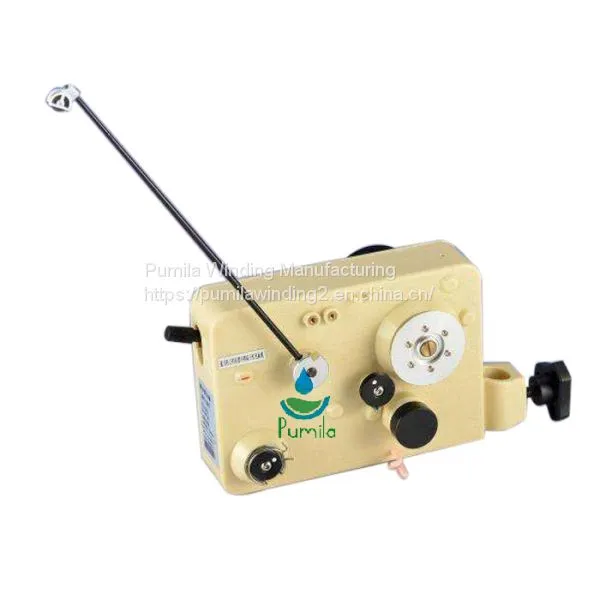

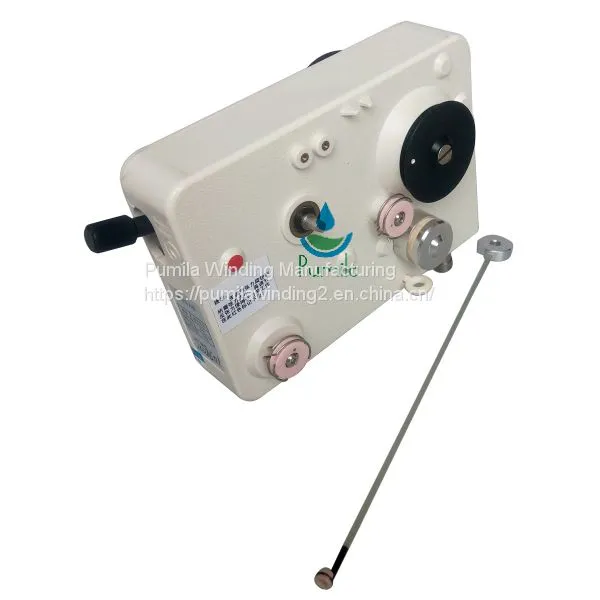

Wire Tensioner Widely Use Winding Machine Accessories Automatic Magnetic Belt Tensioner
US$ 120 - 180
MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
Pumila
Place of Origin:
China
Model Number:
mta
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzhen
Delivery Detail:
7 days
Related Products
-
Coil Winding Tensioner Widely Used as Winding Machine Accessories Automatic Magnetic Rope TensionerUS$ 120 - 180MOQ: 1 Piece -
MTC Magnet Tension Unit for Multi-spindle CNC Auto Winding MachineUS$ 120 - 180MOQ: 1 Piece
-
High Precision Fine Wire Tension Control Device MTC TensionersUS$ 120 - 180MOQ: 1 Piece
-
Hot Sale Fine Wire 0.02mm-0.7mm Coil Winding Tensioner Magnet Tension Unit MTC Dongguan MachineryUS$ 120 - 180MOQ: 1 Piece
-
MTC Series Magnetic Wire Tensioners for Coil Winding With Best PriceUS$ 120 - 180MOQ: 1 Piece
Brand Name
Pumila
Place of Origin
China
Model Number
mta
Product feature
1.Large tension range, using the latest wire jump-prevent structure;
2.Tension scale is precise with tension value, which is convenient for testing of several machines.
3.Mounting diameter is 10mm, vertical type, anti-tension rod with big swings and long wire reel.
4.Tension generated with multi NS magnetic field, no mechanical friction, and with stability tension;
Note
•1.Please reading the product instruction carefully before using;
•2.If long time without using. When the damping wheel jitter, before starting please turning to degaussing process first clockwise and then counterclockwise tension adjuster to adjust the maximum to the minimum to complete the degaussing.
•3.When debugging, first adjust the tension to the scale position, and then adjust the Anti-back tension, adjustment knob makes the tension rod under the green logo(slightly lower than the level state)
•4.The reason for the tension can't adjust:
•
•Hang line diagram
•
•1)The wool pre-tighten is not enough need to be adjust it;
•2)The O-Ring and the wool felt is too dirty need to be clean ot replace.
•5.Normally working the tension can be adjusted from small to large (clockwise), prohibit the tension by major to small (counterclockwise), otherwise cause breakage.
•6.When replace Wool felt please according to the thickness and size with the factory, or it will cause the wire not smoothly.
| Model | Applied wire diamiter(mm) | Tension scope(g.f) |
| MTA-30 | φ0.02-φ0.06 | 3-30 |
| MTA-100 | φ0.04-φ0.12 | 10-100 |
| MTA-200 | φ0.06-φ0.16 | 20-200 |
| MTA-400 | φ0.08-φ0.25 | 50-400 |
| MTA-600 | φ0.12-φ0.35 | 80-600 |
| MTA-800 | φ0.14-φ0.40 | 100-800 |
