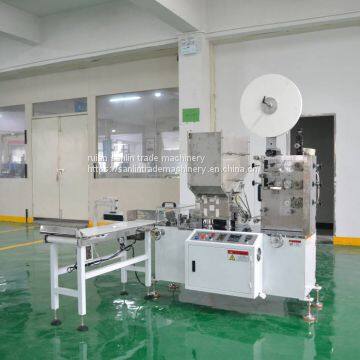

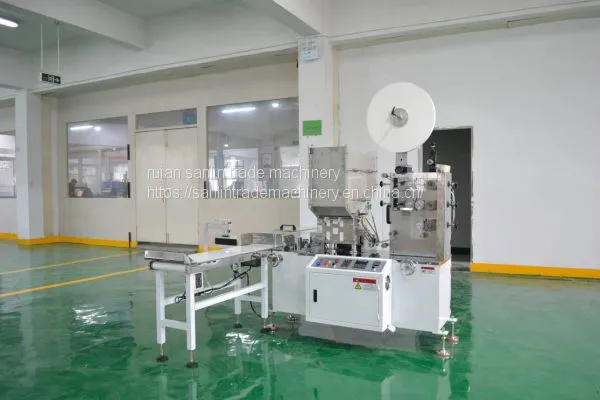

Straw Single Packing Machine With 2 Colors Printer

Straw Length(mm)

Standard: 190-210mm

Extra mould: 170-260mm

By change the sealing and cutting mold, printing cylinder

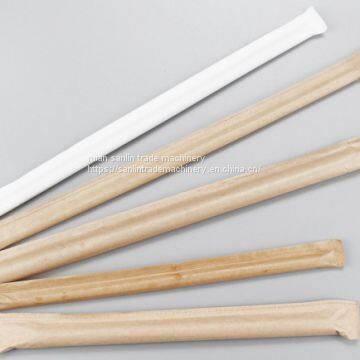

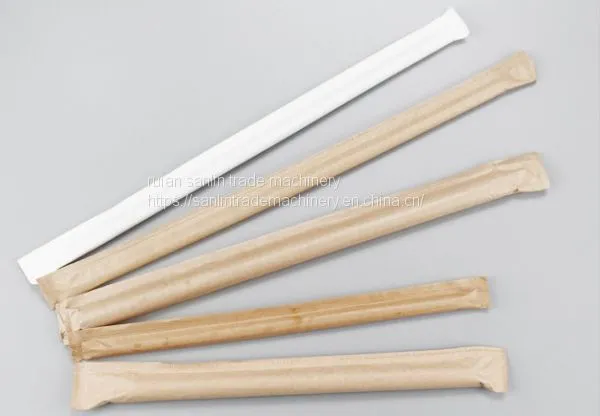

Packing Model

Paper type: wrap paper

Sealing type: 3 side sealing

25-30mm；Paper width: 25-30mm

Production Speed

With printing：300pcs/min

Without printing＞400pcs/min

Printing

Printing Color：Double Colour

Printing type: flexographic

2.38mm;

Thickness of plate (Including Two-sides Glue Paper): 2.28mm+double-sided adhesive 0.1mm(3M Brand)=2.38mm

Paper Unwinding Frame

1SET

Tension adjust：Mechanical tension device, adjusted by manual

Wrap paper roller core size：3inch，4.7inch

Straw feeding hopper

Material :Stainless steel frame，

Plexiglass: Adjustable to match straw length

Straw down device：induction and swing arm

Feeding model：by chain feeding

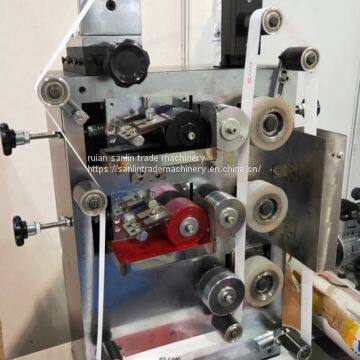

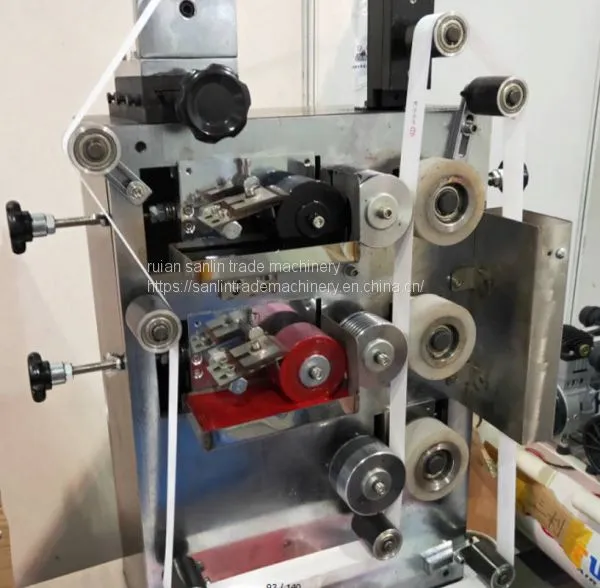

Printing Unit

Single/Double Color

Power transmission ：By chain

  Between printing unit: By gear

Traction unit：1sets, rubber roller and chrome plated roller

Printing unit：Ink container, anilox roller, doctor blade, printing cylinder, rubber roller

Dry unit：1SET , by hot air, with temperature

color register：By manual

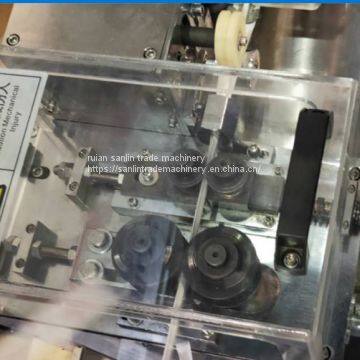

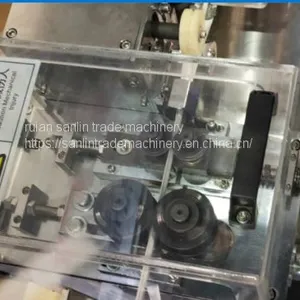

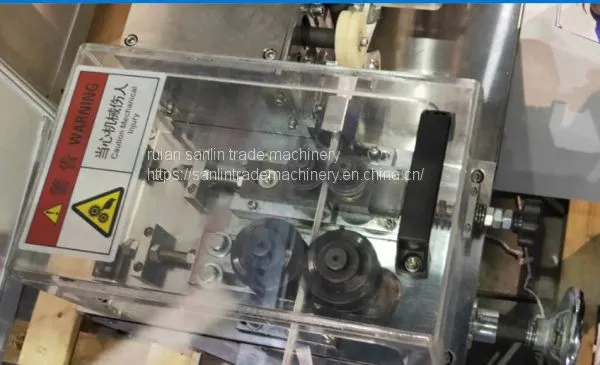

Sealing and Cutting Parts

Lengthways sealing：Sealing roller-on couple，pressure adjusted by manual

Horizontal：Sealing roller-on couple，pressure adjusted by manual, with cutting knife-one couple

Material：mould steel

Conveyor Belt

1set， Synchronous reduction motor+ controller

Counter dam-brush: one set, lifting by pneumatic cylinder

Controller

Counter and buzzers：1set，HUALI Brand

Controlling inverter: 1.1KW Schneider

Temperature controller：1set，KEQIANG Brand

Low-voltage electric parts: Schneider

Total Power (Kw)

1.5 (220V)

Over size (mm)

1900×1000×1600 (L×W×H)

Weight (Kg)

400
