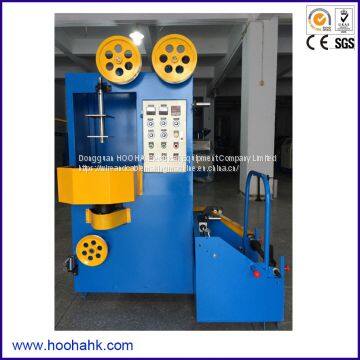

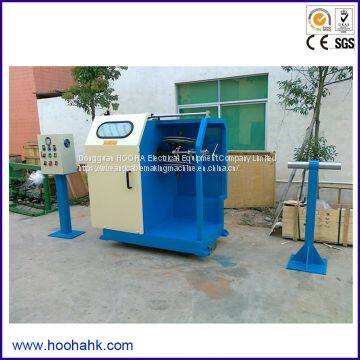

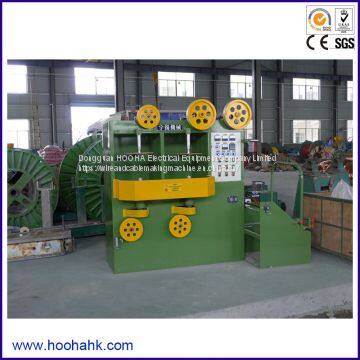

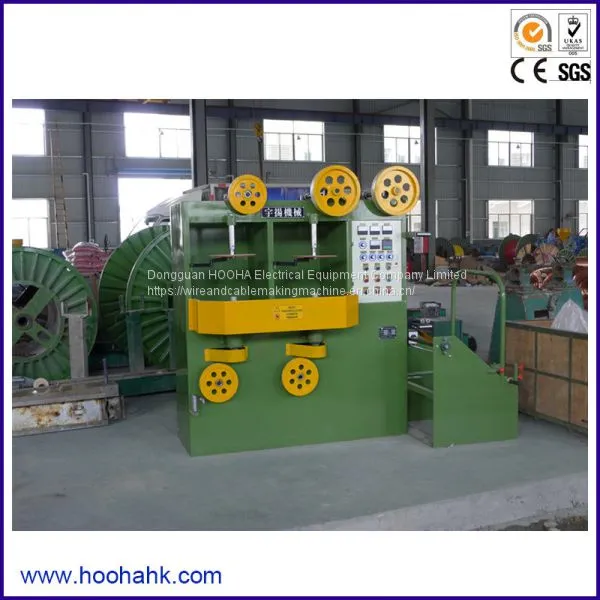

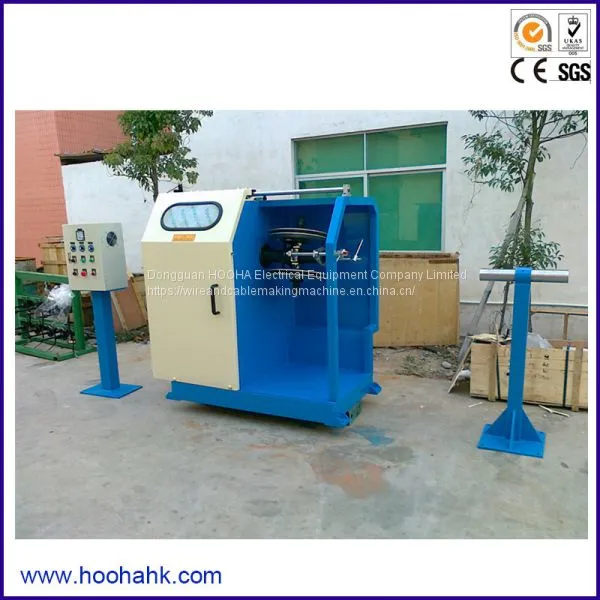

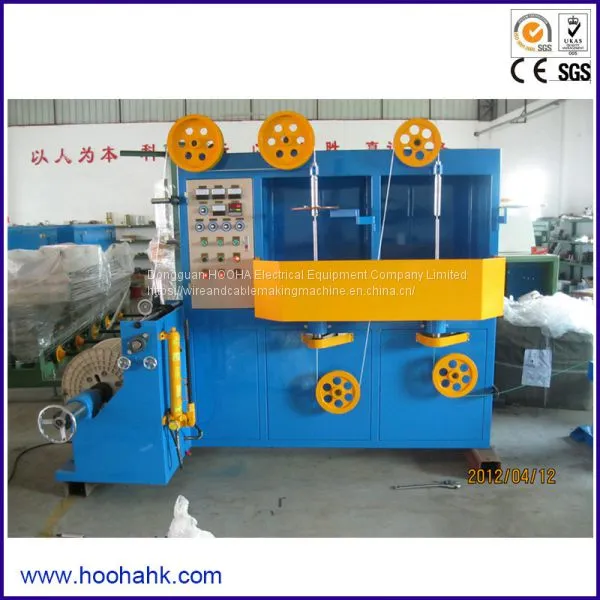

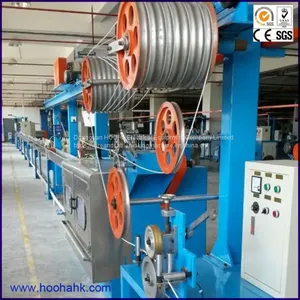

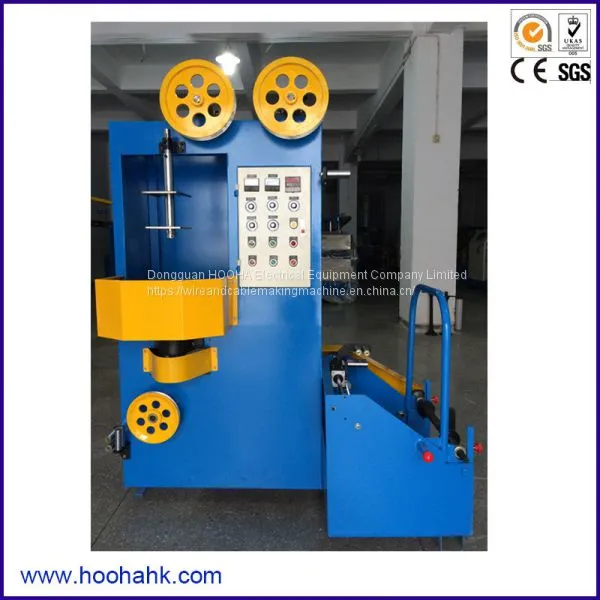

Best and High Quality Chinese Silicone Cable Extruding Machine
---------we made solutions and machines
help instalating and operating
keep training and maintaining

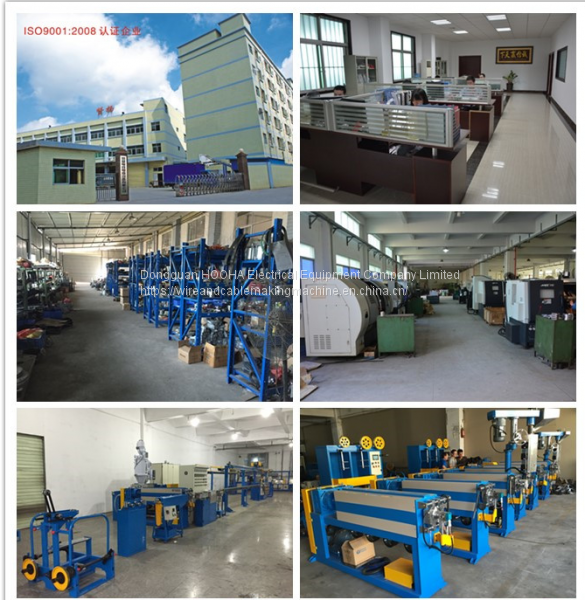

Office and Factory:
Customer Visit:
Certification:
Specification:
| Machine model | ZY-WE-50 | ZY-WE-70 | ZY-WE-80 | ZY-WE-90 |
| Main motor power(HP) | 10 | 20 | 30 | 50 |
| Extrusion volume(kg/h) | 30 | 60 | 150 | 250 |
| Screw diameter(mm) | Φ45 | Φ65 | Φ90 | Φ115 |
| L/D of screw | 12:1 | 12:1 | 14:1 | 14:1 |
| Wire pay-off tray(mm) | Φ300-400 | Φ400-630 | Φ1000-1250 | Φ1250-1600 |
| Wire pay-off diameter(mm) | 0.2-3.0 | 0.3-5.0 | 5.0-50 | 6-65 |
| Finished OD(mm) | 0.8-5.0 | 1.8-8.0 | 9.0-60 | 10-75 |
| Vulcanize length(M) | 12 | 16 | 24 | 28 |
| Heater power | 3zone,36kw | 3zone,48kw | 6zone,72kw | 6zone,84kw |
| Traction motor power(kw) | 3 | 4 | 7.5 | 11 |
| Production speed(m/min) | 6-80 | 6-80 | 4-40 | 4-40 |
| Coiler(mm) | 400-500 | 400-630 | 1250-1600 | 1250-1600 |
Afetr service:
1).Delivery dates: 45 days
2).Payment: TT or L/C
3).Packing: Wood packing and PE plastic packing ensure the goods safety on the transportation.
4). Install and training service: 2 professional engineers who has over 5 years overseas install and cable manufacture training experience.
5) after service phone number online
