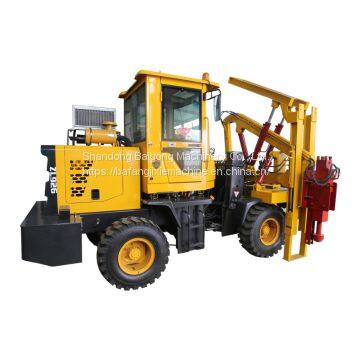

Help CenterHighway Road Guardrail Hydraulic Pile Driver
Related Products
-
High Performance Hydraulic Highway Guardrail Pile DriverUS$ 8000 - 10000MOQ: 1 Set -
China Hot Sale Highway Guardrail Pile Driver Machine InstallerUS$ 8000 - 10000MOQ: 1 Set
-
Highway Road Guardrail Hydraulic Pile Driver for SaleUS$ 6000 - 18000MOQ: 1 Set
-
Solar Crawler Hydraulic Pile Driver Machine, Photovoltaic Guardrail Post Pile DriverUS$ 8000 - 15000MOQ: 1 Set
-
Four Wheel High Efficiency 12-15m Pile DriverUS$ 10000 - 30000MOQ: 1 Set
Loader type guardrail pile driver is a product developed according to the market demand and the maturity of its own technology. It is a new product integrating loading, piling and drilling. The design concept of adopting a new design concept, meticulously developing the overall function, and the modularity and consideration of the structure, fully enclosed the wooden installation structure, is more conducive to rapid installation and transition of the product, and can be widely applied to the pile hole drilling of road and high-speed road guardrails. jobs. Hydraulic machinery is used for transmission, stepless speed change, convenient displacement, accurate positioning, fast piling speed, simple operation, more reasonable mechanical process, high efficiency, energy saving, high cost performance, compact structure, reasonable center of gravity layout and good stability.
Technical Parameters |
Unit |
BF920 |
Drilling diameter |
mm |
110-200 |
Drilling depth |
M |
3 |
Impactor |
110/150 |
|
engine model |
490 |
|
Engine power |
Kw |
37 |
Left and right stroke |
Mm |
40-70 |
Hydraulic system flow |
L/min |
90-120 |
Rated system pressure |
MPa |
15 |
Track |
mm |
1650 |
Hydraulic hammer weight |
Kg |
260 |
Hydraulic hammer working flow |
L/min |
90-120 |
Hydraulic hammer working pressure |
MPa |
9-14 |
Hydraulic hammer impact frequency |
Hz |
11-15 |
Dimensions |
mm |
4100×2300×2650 |
