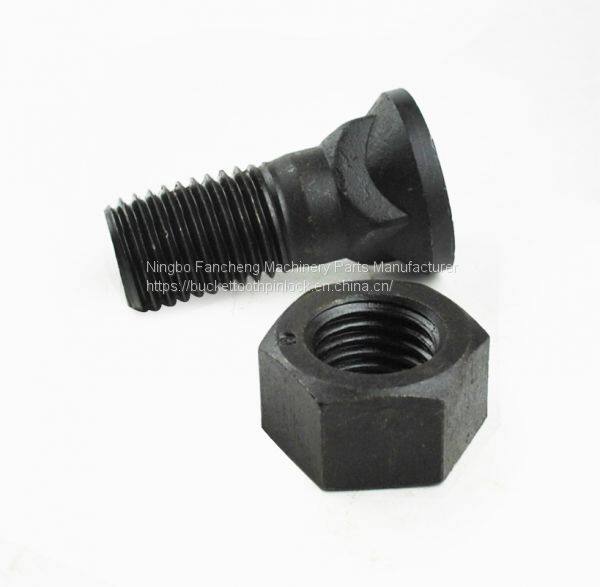

Excavator Track Bolt & Nut 6T8520/CR5639

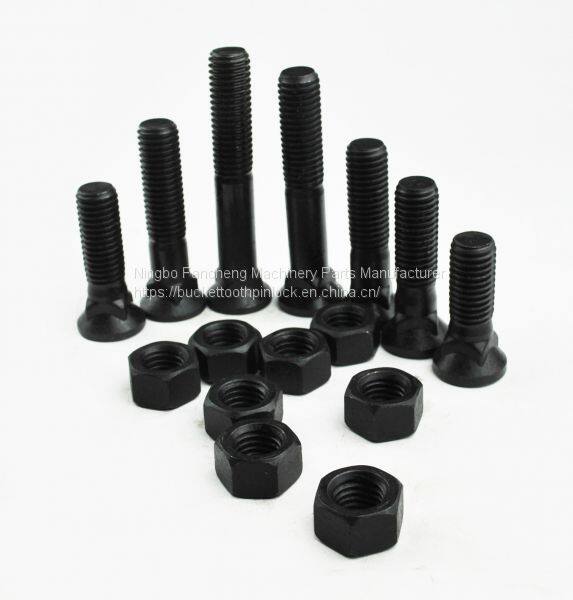

1. Track Bolt & Nut:

Part No                      Dimension                         Wgt. (kgs)

8H7504                      1/2"UNF-20X38"                     0.06KG

R24688                      1/2"UNF-20X40 W                    0.07KG

Ac231/70097287              1/2"UNF-20X48 B                    0.07KG

In2760/616191C              1/2"UNF-20X48"                     0.07KG

2A3223                       2"UNF-20X47"                       0.08KG

AC1119/70644688             1/2"UNF-20X49 B                    0.4KG

6S3419/Ft888                 1/2UNF-20NUT(19z15)               0.04KG

4K7038                       1/26"UNF-18X42                     0.1KG

Ac82/R15309                  9/16"UNF-18UNFx49 B                0.11KG

7H3596/CR429                 9/16"UNF-18X51                     0.11KG

I N1199/61699C1               9/16"UNF-18X51                     0.12KG

5P4684/CR3623                9/16"UNF-18X73                     0.14KG

5A3187                        9/16"unf-18X76                      0.15KG

F T2728/76015987              9/16"unf-18X85 B                    0.16KG

7K2017/CR1968                 9/16"unf-18muT(22X18)             0.05KG

CR3707/8U2703                 5/8"UNF-18x46                     0.13KG

7H3597                         5/8"unf-18x51                      0.14KG

Cr1251                          5/8"unf-18x547                    0.15KG

5H8756/616207C1                5/8"unf-18x57                     0.16KG

9G3110/AC226                    5/8"unfx57B                      0.16KG

3T8601/CR4357                   5/8"UNF-18x67 B                  0.17KG

9G8592/CR5573                   5/8"unf-18x83 B                   0.2KG

5A4104/3P2274                   5/8"unf-18x89                     0.2KG

3T8580                           5/8"unf-18x91 B                   0.21KG

1M1408/CR1250                  5/8"UNF-18nuT(25X18)             0.06KG

1S1859/CR1105                   9/4"UNF-16X55                    0.23KG

Yh3598                          5/8"unf-18x61                      0.24KG

6V1792/CR4441                  3/4"UNF-18X81  B                  0.26KG

8S8804                          3/4"UNF-16x63                     0.25KG

7F8619/CR331                    3/4"UNF-16x70                    0.265KG

1061642                         3/4"UNF-16X75  B                 0.29KG

Cr3842/311345R2                 3/4"UNF-16X76                    0.28KG

6V1792/CR4440                   3/4"UNF-16X81  B                 0.3KG

Cr5444/1070719                  3/4"UNF-16X99   B                0.34KG

5A7524   1D1295                 3/4"UNF-16X702                   0.35KG

9S1838/CR3326                   3/4"UNF-16X105 B                 0.36KG

2P9670/CR3119                   3/4"UNF-16X112                   0.35KG

6T1441/CR4699                   3/4"UNF-16X124.5  B              0.41KG

1S1860/CR1967                   3/4UNF-16NUT(28x19)              0.08KG

7H3599/9M7444                  7/8"UNF-14x67  B                  0.37KG

316910R1                        7/8"UNF-14x76                     0.4KG

7T2748                          7/8"unf-14x85  B                   0.43KG

6V1723/CR4135                   7/8"UNF-14x89  B                 0.44KG

6V1724/CR4132                   7/8"UNF-14x95  B                 0.46KG

9W9058/CR4789                  7/8"UNF-14x115  B                 0.53KG

8S0395/CR2709                   7/8"UNF-14x121 B                  0.54KG

6V1725/CR4133                   7/8"UNF-14x127 B                  0.56KG

2S2140/CR1969                    7/8UNF-14NUT(33x22.5)            0.12KG

7G6442/CR4136                   7/8unf-14nut(33x33.5)B             0.15KG

2M5657/9M7445                   1"UNF-14X75  B                   0.55KG

3T6308/CR4029                    1"UNF-14X84  B                   0.57KG

6T2638/CR4670                    1"UNF-14X90  B                   0.6KG

6V1726/CR4036                    1"UNF-14X101 B                    0.65KG

6V1727/CR3858                    1"UNF-14x110 B                    0.68KG

7T2283/CR4669                    1"UNF-14x123 B                    0.74KG

8S1723/CR2669                     1"UNF-14x141 B                    0.81KG

6V1728/CR3859                    1"UNF-14X148 B                    0.84KG

1S6421/CR1970                     1"UNF-14NUT(38x25)               0.2KG

7G0343/CR4037                    1"UNF-14NUT(38x39)B              0.23KG

7T1000                            1-1/8"UNF-12X96  B                0.85KG

5p3968                            1-1/8"unf-12X107 B                 0.88KG

7T0999/CR5258                     1-1/8"UNF-12x134 B               1.1KG

7T0998/CR5257                     1-1/8"UNF-12x164 B               1.2KG

9W4480                            1-1/8"UNC-7x139.5                 1.1KG

5P8221/CR3835                     1-1/8"UNF-12NUT(42x44)B          0.3KG

6T8853                             1-3/8"UNF-12x110                 1.5KG

6I8648                              1-3/8"unf-12X121                  1.6KG

6T8521/CR5640                     1-3/8"unf-12x153                   1.8KG

6T8520/CR5639                      1-3/8"unf-12x184                  2KG

3T6292/CR5638                 1-3/8"unf-12nut(54X45)B           0.7KG

101-32-11210                        M12X1.5X40                       0.07KG

Ft887/571946                       M12x1.25unt(19x15)                0.03KG

205-32-21210                       M14X1.5X45                        0.1KG

203-32-21220                       M14X1.5X56                        0.11KG

OK21K                              M14X1.5NUT(22X15)                0.04KG

205-32-51120                       M16X1.5X50                        0.14KG

130-32-21252E                      M16X1.5X82                        0.2KG

516125                             M16X1.5NUT(24X16)                0.06KG

79039443                           M18X1.5X55F                       0.19KG

79004259                          M18X1.5X60                        0.2KG

79039445/FT982                   M18X1.5NUT(27X18)                 0.08KG

20Y-32-11210                      M20X1.5X53F                        0.23KG

9W3619                           M20X1.5X55D                       0.25KG

79035814-FT2110/154-32-211323    M20X1.5X62F                       0.26KG

6Y0846                            M20X1.5X63                        0.27KG

14Y-32-11210/71401192            M20X1.5X65F                       0.27KG

Ft1100                            M20X1.5X68                        0.27KG

9W3361/FT2111                   M20X1.5NUT(28X22)                 0.08KG

207-32-51210                      M22X1.5X56F                       0.3KG

71428357                         M22X1.5X62F                       0.32KG

6Y9024                           M22X1.5X67D                       0.33KG

76007851/FT2205                 M22X1.5X70F                       0.35KG

9W4381/CR5923                  M22X1.5NUT(32X22)                 0.13KG

208-32-51210                     M24X1.5X65F                       0.38KG

21M-32-11260                    M24X1.5X72                        0.42KG

175-35-11210/KM378             M24X1.5X76                         0.46KG

178-32-11220                    M24X1.5UNT(35X24)                 0.15KG

195-32-11210/KM263             M27X1.5X82                         0.62KG

6Y7432                          M27X1.5X90                         0.66KG

195-32-41210/KM6361            M27x2.8X93                         0.68KG

195-32-11221                    M27X1.5NUT(41X27)                  0.23KG

195-32-41220/KM1151            M27X2.0NUT(41X35)B                 0.27KG

195-32-61210                    M30X2.0X96                          0.85KG

pc1250/KM2348                  M30X2.0X102                         1.1KG

195-32-61220                    M30X2.0NUT(46X38)B                 0.46KG

198-32-41330/KM3193            M33X2.0X114                         1.3KG

198-32-31340                    M33X2.0X185                         1.8KG

198-32-31220                    M33X2.0NUT(50X42)B                  0.5KG
