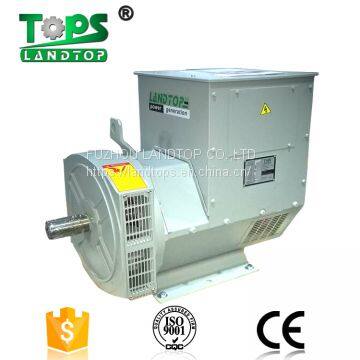

AC Brushless STF Series 100kw 50hz Dynamo Generator
- fuzhou port
- T/T L/C Other Cash
You May Like
Product Details
| Brand Name | Landtop | Place of Origin | China | |
| Model Number | STF series | Rated Current | Depend | |
| Output Type | AC Three Phase | Speed | 1500/1800rpm | |
| Frequency | 50HZ/60HZ | Rated Voltage | 380V/400V/440V/660V | |
| Rated Power | 6.5kw-1000kw |
Product Description
AC brushless STF series 100kw 50hz dynamo generator
All copy stamford alternator stators are woound to 2/3 pitch. This eliminates triple(3rd, 9th, 15th) harmonics on the voltage waveform and is found to be the optimum design for trouble-free supply of non-linear loads. The 2/3 pitch design avoids excessive neutral currents sometimes seen with higher winding pitches, when in parallel with the mains. A fully connected damper winding reduces oscillations during parallelling.This winding, with the 2/3 pitch and carefully selected pole and tooth designs, ensures very low waveform distortion.
| TYPE | Rated Power(1500rpm 50HZ 400V) | KG | ||||||
| Continuous/40 | Stand by/40 | Stand by/27 | ||||||
| H125K | H150K | H163K | ||||||
| KVA | KW | (%) | KVA | KW | KVA | KW | ||
| LTP164A | 8.1 | 6.5 | 73.6 | 8.5 | 6.5 | 6 | 7.2 | 86 |
| LTP164B | 9.4 | 8 | 78.8 | 11 | 8.8 | 12 | 9.6 | 90 |
| LTP164C | 12.5 | 10 | 80.6 | 13.8 | 11 | 15 | 12 | 96 |
| LTP164D | 15 | 12 | 81.2 | 17.5 | 14 | 20 | 16 | 100 |
| LTP184E | 20 | 16 | 84.5 | 22.5 | 18 | 25 | 20 | 120 |
| LTP184F | 25 | 20 | 86 | 27.5 | 22 | 30 | 24 | 150 |
| LTP184G | 30 | 24 | 86.3 | 32.5 | 26 | 35 | 28 | 160 |
| LTP184H | 37.5 | 30 | 86.6 | 40 | 32 | 41.3 | 33 | 216 |
| LTP224C | 42.5 | 34 | 87 | 45 | 36 | 47.5 | 38 | 250 |
| LTP224D | 50 | 40 | 88 | 52.5 | 42 | 55 | 44 | 270 |
| LTP224E | 60 | 48 | 88.6 | 62.5 | 50 | 65 | 52 | 290 |
| LTP224F | 72.5 | 58 | 90 | 77.5 | 62 | 80 | 64 | 320 |
| LTP224G | 85 | 68 | 90.2 | 87.5 | 70 | 91.3 | 73 | 360 |
| LTP274C | 100 | 80 | 90.4 | 106.3 | 85 | 110 | 88 | 395 |
| LTP274D | 117.5 | 94 | 90.8 | 127.5 | 102 | 131.3 | 105 | 420 |
| LTP274E | 140 | 112 | 91.5 | 145 | 116 | 150 | 120 | 470 |
| LTP274F | 160 | 128 | 92.3 | 170 | 136 | 175 | 140 | 510 |
| LTP274G | 181.3 | 145 | 92.5 | 187.5 | 150 | 193.8 | 155 | 560 |
| LTP274H | 200 | 160 | 93.3 | 212.5 | 170 | 220 | 176 | 610 |
| LTP314C | 250 | 200 | 92.4 | 270 | 216 | 275 | 220 | 850 |
| LTP314D | 300 | 240 | 92.7 | 320 | 256 | 330 | 264 | 915 |
| LTP314E | 350 | 280 | 93.3 | 370 | 296 | 400 | 320 | 960 |
| LTP314F | 394 | 315 | 93.5 | 418.8 | 335 | 437.5 | 350 | 1123 |
| LTP354C | 450 | 360 | 94.1 | 477.5 | 382 | 495 | 396 | 1275 |
| LTP354D | 500 | 400 | 94.4 | 515 | 412 | 530 | 424 | 1330 |
| LTP354E | 600 | 480 | 94.6 | 640 | 512 | 665 | 532 | 1530 |
| LTP354F | 662.5 | 530 | 94.8 | 700 | 560 | 725 | 580 | 1690 |
| LTP404C | 750 | 600 | 93.3 | 775 | 620 | 790 | 632 | 1960 |
| LTP404D | 800 | 640 | 93.6 | 825 | 660 | 840 | 672 | 1980 |
| LTP404E | 900 | 720 | 93.8 | 937.5 | 750 | 957.5 | 766 | 2040 |
| LTP404F | 1000 | 800 | 94.3 | 1030 | 824 | 1050 | 840 | 2210 |
| LTP404G | 1125 | 900 | 94.7 | 1163 | 930 | 1187.5 | 950 | 2430 |
| LTP404H | 1250 | 1000 | 95 | 1288 | 1030 | 1312.5 | 1050 | 2760 |
Features:
1) Any permanent magnetic generators, providing invariable excitation on all occasions.
2) Easy to be connected with power network or other generators. Standard 2/3 pitches windings check excessive midline current.
3) Balanced rotor with single or two sealed ball bearings
4) Convenient installation and maintenance with easy access to terminals, rotating diodes and coupling bolts
Q: Do you offer OEM service?
A: Yes
Q: What is your payment term?
A: 30% T/T in advance, 70% balance when receiving B/L copy. Or irrevocable L/C.
Q: What is your lead time?
A: About 30 days after receiving deposit or original L/C.
Q: What certifiicates do you have?
A: We have CE, ISO. And we can apply for specific certificate for different country such as SONCAP for Nigeria, COI for Iran, SASO for Saudi Arabia, etc
What we do:
1.Stamping of lamination
2.Rotor die-casting
3.Winding and inserting – both manual and semi-automatically
4.Vacuum varnishing
5.Machining shaft, housing, end shields, etc…
6.Rotor balancing
7.Painting – both wet paint and powder coating
8.assembly
9.Packing
10.Inspecting spare parts every processing
11.100% test after each process and final test before packing.
