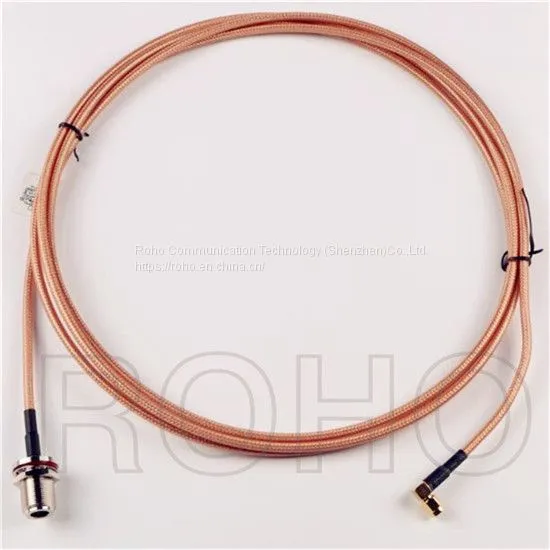

Female N to Right Angle SMA Male RF Coaxial Connector With Rg316 Cable Assembly
US$ 0.87 - 5.3
MOQ: 100 Pieces
Key Specifications
Get Latest Price
Business Type:
Manufacturer
Year Established:
2013
Port of Shipment:
Shenzhen
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
7 days
Related Products
-
Rg141 N Female to N Female 4 Hole Flange RF Coaxial Test Cable AssemblyUS$ 0.87 - 5.3MOQ: 100 Pieces -
RF Cable AssemblyUS$ 0.87 - 5.3MOQ: 100 Pieces
-
Ra Male SMA to Female BNC Cable AssemblyUS$ 0.77 - 5.3MOQ: 100 Pieces
-
BNC Right Angle Male to SMA Female Cable AssemblyUS$ 0.77 - 5.3MOQ: 100 Pieces
-
N Female Jack Connector With Bush With 141 086 Semi Rigid Cable AssemblyUS$ 0.77 - 5.3MOQ: 100 Pieces
| ELECTRICAL DATA | |
| Impedance | 50Ω |
| Frequency range (for connector interface) | DC～18GHz |
| Dielectric withstanding voltage (at sea level) | ≥750-1500V,50Hz (depending on cable) |
| Working voltage (at sea level) | ≥250-500V,50Hz (sea level) / ≥65-125V,50Hz (Height 21000M) |
| Insulation resistance | ≥ 5000 mΩ |
| Contact resistance | Inner conductor: ≤3mΩ |
| Outer conductor: ≤2.5mΩ | |
| RF leakage(2-3GHZ) | Flexible: ≥60dB |
| Semi-rigid cable: ≥100dB | |
| MECHANICAL DATA | |
| Coupling nut torque | 0.8Nm--1.1Nm / 7.1 in.lbs--9.7 in.lbs |
| Coupling nut retention force | ≥270N / 60.7 lbs |
| Contact captivation axial | ≥27N / 6.1 lbs |
| Durability (matings) | ≤500 |
| ENVIRONMENTAL DATA | |
| Temperature range | -65°C to +165°C |
| MATERIAL DATA | |
| Bodies, outer contacts | Beryllium copper--Au plating |
| Stainless steel--Passivation | |
| Brass--Au plated / ternary alloy plating | |
| Phosphor bronze --Au plating | |
| Pin contacts | Brass/Beryllium copper--Au plating |
| Socket contacts | Beryllium copper / |
| Phosphor bronze--Au plating | |
| Crimp ferrules | Brass--Au plating |
| Insulator | PTFE |
| Gaskets | Silicone rubber |
