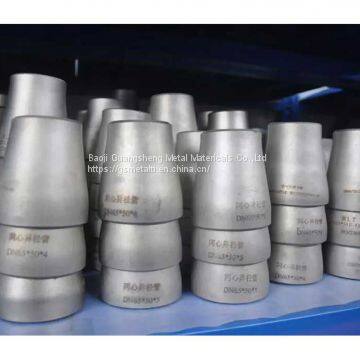

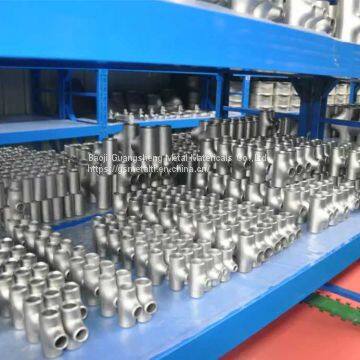

Titanium Reducer

NPS

Grade

Pattern

Thickness

Type

Standard

Available Tests

1/2"~ 4"(DN 15-100)

Gr1,Gr2,Gr7,Gr12

SP, LP

sch 5s-sch 80

SMLS

ANSI/ASME B16.9
MSS SP-43,
EN 10253, DIN 2616

PMI, Tensile test,
Hydrostatic test,
DPI/RT/X-ray, Hardness

5"~ 8"(DN 125-200)

sch 10s-sch 80

WELDED

10"~ 48"(DN 250-1200)

sch 10s-28mm

WELDED

material

Titanium Gr1, Gr2, Gr7, Gr9,Gr12

standard

ASTM B363, ASTM SB363, ASME B16.9

Titanium elbow

Elbows (45D, 90D, 180D) NPS 1/4 - 24(DN5-1200)

Reducers

concentric, eccentric,NPS 1/4 - 24(DN15-1200)

Tees

(straight, reducing) ,NPS 1/4 - 24 (DN15-1200)

Stub ends

NPS1/4 - 4

Wall thickness

SCH5S-SCH160S (1-15mm)

Caps, flingers, socket welding fittings, valves available

Technical

Pressing,welded, seamless

Material Test Report

EN10204.3.1,Chemical Composion And Physical Properties

Product Marking

All products are marked by laser after they are finished

Products Types

45°Titanium elbow,90°Titanium elbows,Titanium Tee,Titanium Reducer,Titanium Weldolt,Titanium End Cap,Titanium Stub End.

Certifcate

Germany TUV Assessment, ISO9001:2008

Material

Gr1, Gr2, Gr7, Gr12

Type

long and short pattern

Surface Processing

quartz-shot, sand-blasting, polishing

Size

NPS 1/2" - 48"  Titanium alloy Stube Ends or according to ustomer's drawings and  specifications

Processing type

seamless and welding

Applications

Titanium and its alloy Stube Ends are widely used in medical equipment and petrochemical equipment, etcTitanium fittings serve as connectors for tube

Payment Term

T/T, Crash, PayPal, Western Union, L/C at sight, can negotiation.

Inspection

Internal Control, The third party(eg.SGS)

Delivery time:

1.In stock: sending within 2 days as soon as receiving the payment.2.According to the quantity.

material

Titanium Gr1, Gr2, Gr3, Gr4, Gr5, Gr7, Gr9

standard

ASTM B363, ASTM SB363, ASME B16.9

Titanium elbow

Elbows (45D, 90D, 180D) NPS 1/4 - 24(DN5-1200)

Reducers

concentric, eccentric,NPS 1/4 - 24(DN15-1200)

Tees

(straight, reducing) ,NPS 1/4 - 24 (DN15-1200)

Stub ends

NPS1/4 - 4

Wall thickness

SCH5S-SCH160S (1-15mm)

Caps, flingers, socket welding fittings, valves available

Technical

Pressing,welded, seamless

Material Test Report

EN10204.3.1,Chemical Composion And Physical Properties

Product Marking

All products are marked by laser after they are finished

Products Types

45°Titanium elbow,90°Titanium elbows,Titanium Tee,Titanium Reducer,Titanium Weldolt,Titanium End Cap,Titanium Stub End.

Certifcate

Germany TUV Assessment, ISO9001:2008

Length
(F)

Approx. Wt.
in LBS.

Approx. Wt.
in LBS.

Nom. Pipe Size (In.)

Outside Dia.
(O)

Lap Thk.
(G)

Type A Radius
(R)

MSS Short

ANSI Long

Inside Dia.
(ID)

Wall
Thk.
(T)

Lap
Thk.
(t)

MSS Short

ANSI Long

Inside Dia.
(ID)

Wall
Thk.
(T)

Lap
Thk.
(t)

MSS Short

ANSI Long

1/2

.840

1-3/8

1/8

2

3

.674

.083

.095

.09

.12

.622

.109

.109

.11

.15

3/4

1.050

1-11/16

1/8

2/16

3

.884

.083

.097

.12

.16

.824

.113

.113

.15

.21

1

1.315

2

1/8

2

4

1.097

.109

.120

.20

.33

1.049

.133

.133

.22

.39

1-1/4

1.660

2-1/2

3/16

2

4

1.442

.109

.124

.28

.45

1.380

.140

.140

.32

.55

1-1/2

1.900

2-7/8

1/4

2

4

1.682

.109

.126

.32

.52

1.610

.145

.145

.39

.68

2

2.375

3-5/8

5/16

2-1/2

6

2.157

.109

.130

.54

.98

2.067

.154

.154

.77

1.29

2-1/2

2.875

4-1/8

5/16

2-1/2

6

2.635

.120

.156

.71

1.30

2.469

.203

.203

1.01

1.194

3

3.500

5

3/8

2-1/2

6

3.260

.120

.161

.92

1.65

3.068

.216

.216

1.43

2.66

3-1/2

4.000

5-1/2

3/8

3

6

3.760

.120

.165

1.09

1.80

3.548

.226

.226

2.05

3.37

4

4.500

6-3/16

7/16

3

6

4.260

.120

.169

1.37

2.18

4.026

.237

.237

2.36

3.90

5

5.563

7-5/16

1/16

3

8

5.295

.134

.186

1.86

3.72

5.047

.258

.258

3.52

6.79

6

6.625

8-1/2

1/2

3-1/2

8

6.357

.134

.194

2.72

5.06

6.065

.280

.280

4.80

8.68

8

8.625

10-5/8

1/2

4

8

8.329

.148

.218

4.06

6.63

7.981

.322

.322

7.65

13.50

10

10.750

12-3/4

1/2

5

10

10.420

.165

.245

6.46

11.00

10.020

.365

.365

12.75

22.50

12

12.750

15

1/2

6

10

12.390

.180

.260

10.25

15.00

12.000

.375

.375

18.00

28.00

14

14.000

16-1/4

1/2

6

12

13.624

.188

.375

13.75

21.75

13.250

.375

.375

27.50

36.00

16

16.000

18-1/2

1/2

6

12

15.624

.188

.375

16.00

25.00

15.250

.375

.375

26.00

42.00

18

18.000

21

1/2

6

12

17.624

.188

.375

22.00

32.00

17.250

.375

.375

34.50

56.50

20

20.000

23

1/2

6

12

19.564

.218

.375

27.50

40.75

19.250

.375

.375

38.00

62.00

24

24.000

27-1/4

1/2

6

12

23.500

.250

.375

34.50

52.80

23.250

.375

.375

48.50

79.50
