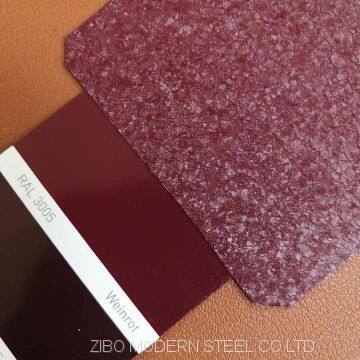

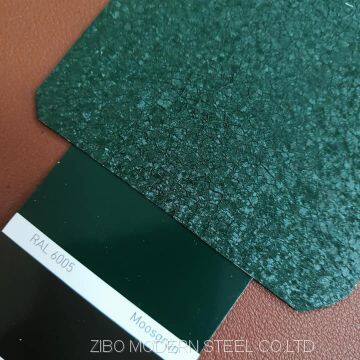

Matt Wrinkle Surface Prepainted Galvanized Steel Coils From China Factory
US$ 500 - 700
MOQ: 25 Metric Tons
Key Specifications
Get Latest Price
Brand Name:
Modern steel
Place of Origin:
China
Model Number:
ZM003
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
30 days
Related Products
-
Prepainted Galvanized Steel CoilsUS$ 500 - 700MOQ: 25 Metric Tons -
Hot Dipped Galvanized Steel Coil DX51D Regular Spangle Bright SurfaceUS$ 500 - 700MOQ: 25 Metric Tons
-
China Factory GI Hot Dipped Galvanized Steel Coil DX51D Regular Spangle Bright SurfaceUS$ 500 - 700MOQ: 25 Metric Tons
-
FRP Sheet Fibre Glass Sheet Dayligh PanelsUS$ 2.5 - 4MOQ: 100 Square Meters
-
China Color Coated Galvanized Steel CoilsUS$ 500 - 700MOQ: 25 Metric Tons
Brand Name
Modern steel
Place of Origin
China
Model Number
ZM003
Length
coil
Thickness
0.12mm-1.0mm
Type
Steel Coil
Width
600mm-1250mm
Application
Boiler Plate
Surface Treatment
Coated
Technique
Cold Rolled
Standard
AISI, JIS
Grade
DX51D
Special Use
High-strength Steel Plate
Matt Finish & Wrinkle Type,Smooth finish Prepainted Steel Coil
| Thickness | Width | Paint Type | Top Coating | Back Coating |
| 0.12-1.0mm | 600-1250mm | PE, SMP, HDP, PVDF | 10~30um | 5-15um |
| Standard | GBT12754-2006, ASTM A755,JIS G3312,EN 10169 |
| Base Material | Galvanized steel coil( GI), galvalume steel coil(GL) |
| Zinc Layer | Z40~Z275, or AZ40~AZ180(AL55%) |
| Surface | Matt wrinkle ppgi/ppgl,high glossy smooth ppgi/ppgl |
| Color | RAL No. color or according to customers' request |
| MOQ | 25 MT (1*GP 20 FCL) |
| Delivery time | 7-25 work days after deposit |
| Payment Term | T/T, L/C,D/A,O/A |
| Year Capacity | 1,000,000Tons |
1. Client all over the world.
2. Exported to more than 60 countries,especially in Africa market,South America Market.
3. China government support enterprise, with 30 engineers,50 bachelor degree office staff and 300 production workers.
4.We have 1 hot-dipped galvanized steel lines, 1 galvalume steel lines,3 color coated steel lines,output 1, 000, 000MT/YEAR.
5. Beautiful, durable and versatile, it lends our materials to a wide range of building products and applications - roofing, walling,guttering, fences, sheds and warehouses, and even specialist architectural panels for distinctive cladding applications.
Colour Coated Steel Sheet
This material is produced by coating the sheet with paint on a sophisticated coil painting line to the colour of choice. The substrate may be cold rolled, hot dipped galvanised, aluzinc or electrogalvanised material, depending which end application the material is required for. The sheet may be coated both sides with the chosen colour or coated one side with the chosen colour and the reverse side with a neutral colour epoxy primer. Variations to a flat sheet are available with various embossed patterns that are embossed on the material after manufacturing.SPECIFICATIONS
| Thickness Range: | 0.12mm - 1.0mm |
| Typical End Use: | Roof sheeting, paint pales, garage doors, domestic appliances(stoves and fridges), cold rooms, advertising sign boards, etc. |
| Quality Range: | Commercial Quality |
Wrinkle/Matt steel is able to better handle salt, pollution and other deposits that normally cause premature corrosion on metal sheets.
Main products:
A prepainted galvanized steel coil (PPGI)
B prepainted galvalume steel coil (PPGL)
C galvanized and galvalume/aluzinc steel coil (GI & GL)
D prepainted steel plate and roofing tile
E smooth and wrinkle prepainted aluminum coils(PPAL)
Smooth & Wrinke matt surface PPGL Steel
Let me know your requirements of following;
Thickness(TCT or BMT)
Glossy finish(high,low,matt)
Paint Coating(topside and reverse side)
Substrate( zinc or zinc alloyed with aluminium)
metallic coating (zinc coating or aluzinc coating)
Hardness (soft,commercial,hard,full hard)
paint system(polyester,SMP, HDP, PVDF)
like,
HOT DIP ALUMINUM ZINC ALLOY COATED STEEL SHEETS IN COIL BASE METAL: ASTM A792,Matt gloss,0.47mm BMT,Wrinkle surface,metallic coating AZ70 (minimum 70g/m² coating of both sides), Grade G550 (minimum yield strength 550 MPa) or G300 (minimum yield strength of 300 MPa), super polyester paint system, 25um on topside and 10um on reverse side.... ...
Our coating mass control technology is amongst the most advanced in the world. The sophisticated coating mass gauge ensure accurate control and consistency of coating mass.

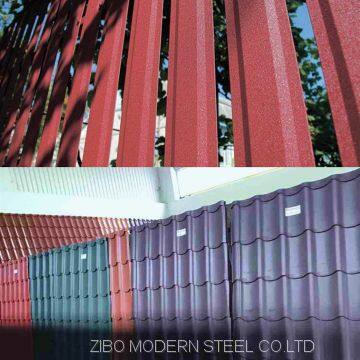

Roofing sheets and wall cladding made from Jaray steel is available in a range of attractive metal sheeting profiles including CORRUGATED,EUROTILE,
LONGTILE PROFILE,ZEETILE PROFILE,BOX PROFILE.It is lightweight; versatile; attractive and has excellent corrosion resistance.
If you are interested in the growth opportunities Africa presents or you are in need of steel and/or related commodities, join us as we leverage our local and international networks in painting Africa Azul.
