Solid PCBN Cutting Tools Roughing Tuning High Manganese Steel Casting SNMN RNMN CBN Inserts

Item name: Solid PCBN Cutting Tools Roughing Tuning High Manganese Steel Casting SNMN RNMN CBN Inserts

1. Why choose Halnn Solid PCBN Cutting Inserts Machining High Manganese Steel Parts?

Crushing Cone as the main wear part on the crusher, its quality directly determines the working efficiency of the crusher. In order to obtain a good service life, high manganese steel is often used as the main material for the Crushing Cone of the crusher, and the high manganese steel has higher plasticity and toughness, severe hardening, high cutting temperature, difficult chip breaking, and easy to cause chipping, so it is especially important to choose the right cutting tool and cutting parameters.

2. Advantages of Halnn cutting inserts

The hardness of the CBN tool itself reaches between HRC 95-100, and large margin rough turning Crushing Cone is more advantageous than the cemented carbide tool.

For example, Halnn BN-K1 grade CBN tool rough turning Crushing Cone with casting defects are directly processed, and there is no abnormal phenomenon such as chipping and severe wear, and the tool life is excellent.

Halnn BN-K1 grade CBN tool is a solid CBN tool as above, the upper and lower cutting edges can be used, the cutting edge is more economical, and the dry cutting processing method is adopted to reduce the total production cost and ensure a good working environment.

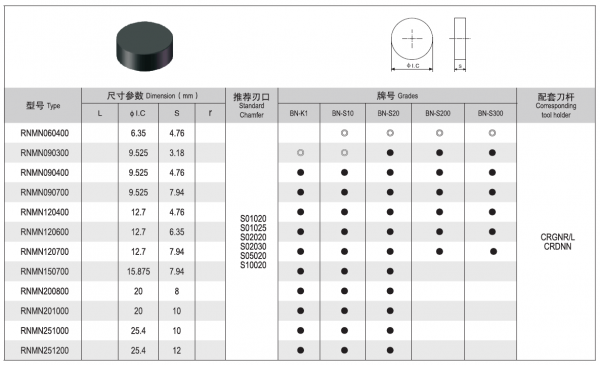

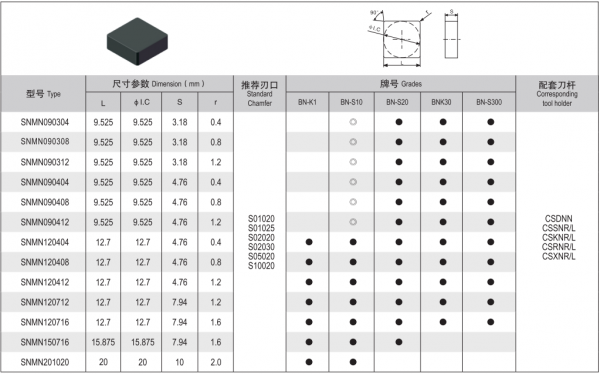

3. Parameter

4. Halnn CBN Cutting Inserts

5. Packing & Certification

6. Contact us

7. Our service
