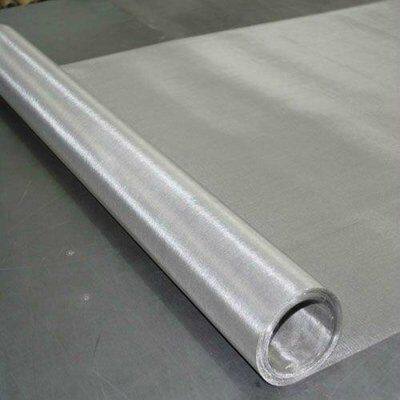

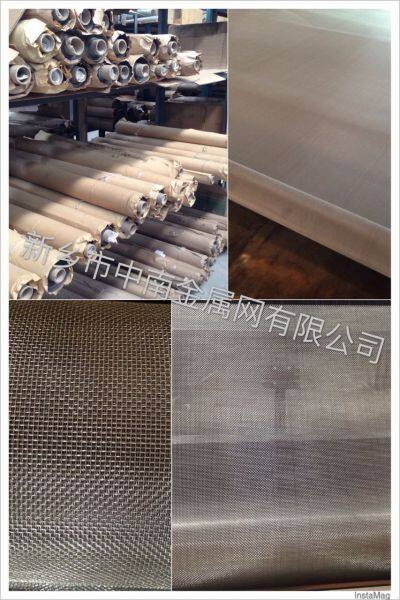

304/316L Stainless Steel Wire Mesh for Filteration and Protection

Stainless Steel wire mesh has been widely used in chemical ,petrochemical and oil exploration, teansportation ,unclear industry,energy ,food and other industrical sectores .
Application of stainless steel wire mesh :Filter tube , filter disc, chemistry and medical industry .

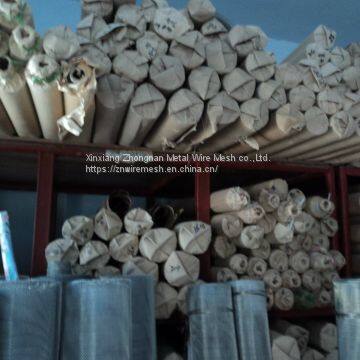

Some stainless steel mesh have stock, yuo can contact our sales team according to your request and we will do our best satisfy your needs .

Available Weaving Type:

1. Plain Weave :

2. It is the most basic type of weaves. In plain weave, the warp and weft are aligned so they form a simple criss-cross pattern. Each weft thread crosses  the warp threads by going over one , then under the next, and so on. The next weft thread goes under the warp threads that its neighbor went, and vice versa.


3. 2.Twill Weave:

4. In a twill weave,each weft or filling yarn floats across the warp yarns in a progression of interlaces to the right or left, forming a distinct diagonal line. This diagonal line is also known as a wale.A float is the portion of a yarn that crossed over two or more yarns from the opposite direction.

5. 3.Plain Dutch Weave:


6. Similar with plain weave, just the weft and warp wire have different wire diameter ad different mesh size.

7. 4.Twill Dutch Weave:

8. Similar with twill weave, just the weft and warp wire have different wire diameter ad different mesh size.

9. 5.Reversed Dutch Weave:

10. Difference from standard Dutch Weave lies in the  thicker warp wires and less weft wires .
