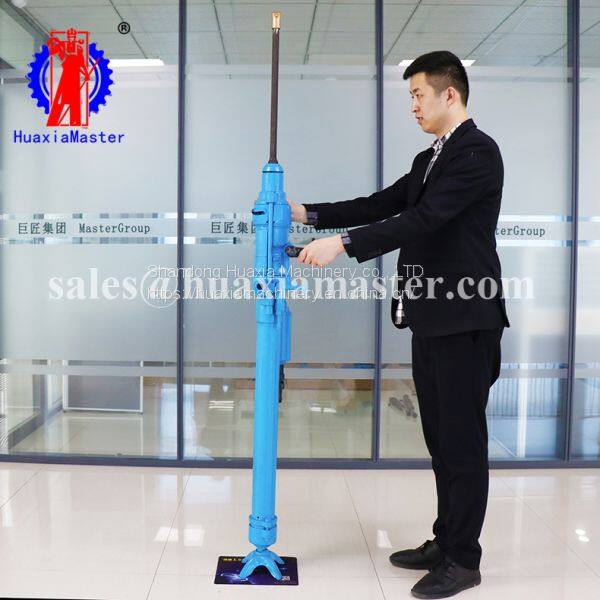

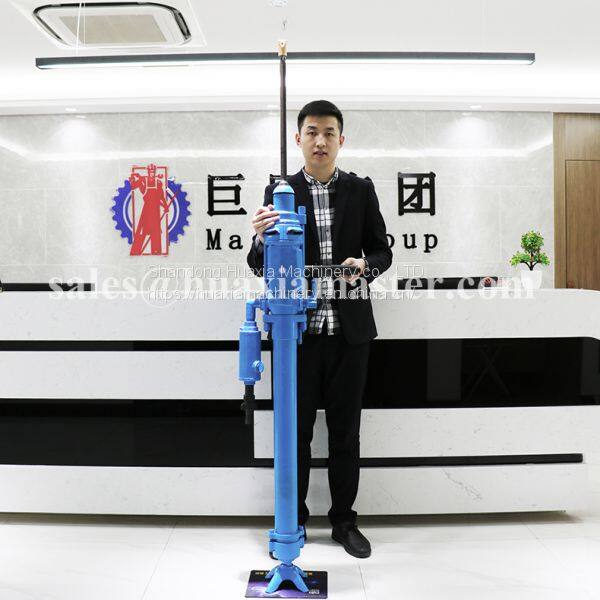

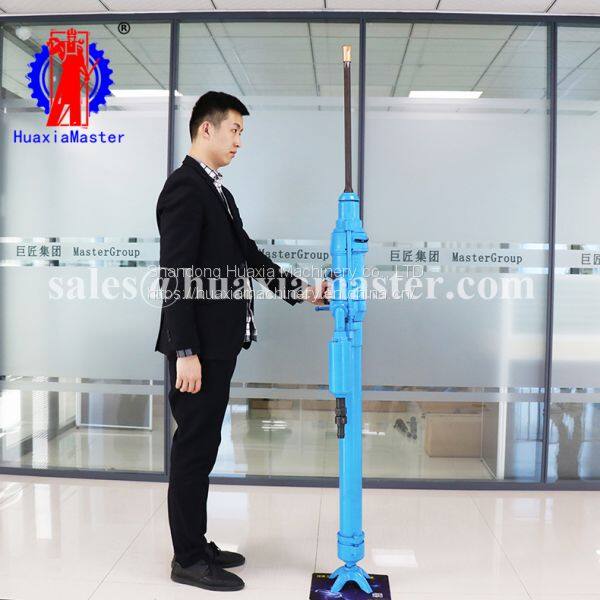

1.Introduction of YSP45 upward high frequency rock drill
YSP45 upward high frequency rock drill is mainly used for mining, shaft excavation and rock drilling in the excavation of the patio. It can drill upwards in the 60° to 90° direction of the ground and can also be used to install anchors.
2. Parameters of YSP45 upward high frequency rock drill
Weight 44 （kg）
Dimensions 1420*390*160 （mm)
Borehole diameter 95 （mm)
Piston structure stroke 47 （mm)
Air leg propulsion stroke 750 （mm)
Air leg cylinder inner diameter 74 （mm)
Working pressure 0.4-0.63 （mpa）
Impact energy ≥73.5（0.63mpa）
≥70（0.5mpa）
≥57（0.4mpa） （j）
Rock drilling gas consumption
≤113.3（0.63mpa）
≤83（0.5mpa）
≤80（0.4mpa） （l/s）
Rock impact frequency
≥46（0.63mpa）
≥45（0.5mpa）
≥42（0.4mpa） （hz）
Torque
≥21（0.63mpa）
≥18（0.5mpa）
≥15（0.4mpa） （n·m）
water pressure 0.3 （mpa）
Air pipe inner diameter 25 （mm)
Water pipe inner diameter 13 （mm)
Suitable drilling diameter 34-42 （mm)
Suitable for maximum rock drilling depth 6 （m）
Operating temperature —30~50 （℃）
Brake tail specification 22*108 （mm)
FY500A type oiler
weight 2.5 （kg）
Oil content 500 （ml）
