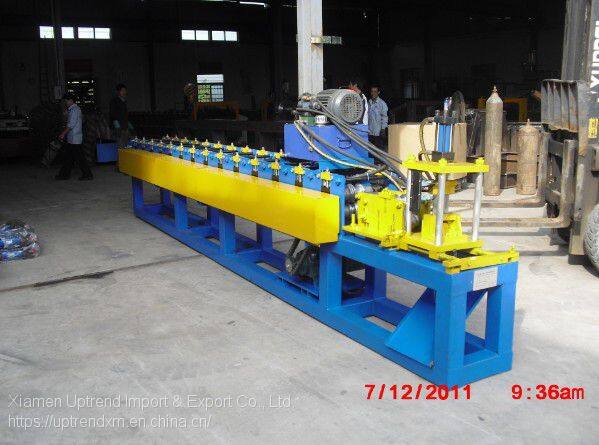

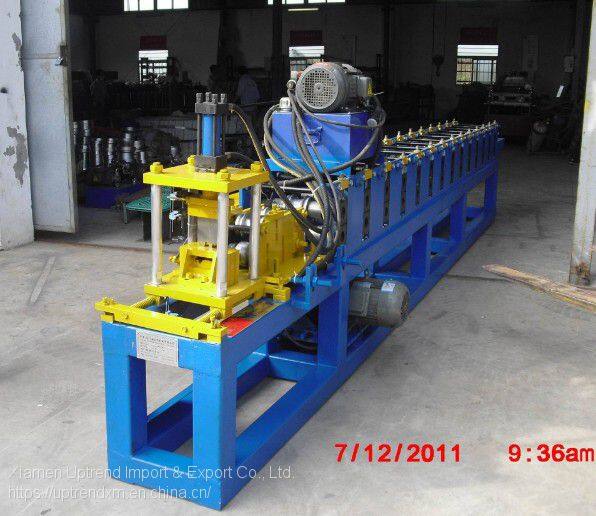

Rolling Shutter Door Panel Roll Forming Machine

Rolling Shutter Door Panel Roll Forming Machine thumbnail-1
Rolling Shutter Door Panel Roll Forming Machine photo-1
US$ 11000 - 14000 MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
Uptrend
Place of Origin:
China
Model Number:
JM-85
Contact Supplier Request Quote Chat Now
Xiamen Uptrend Import & Export Co., Ltd.
Verified Business License
Payment & Shipping
Payment Methods:
Port of Shipment:
Xiamen Port of China
Delivery Detail:
45 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name Uptrend
Place of Origin China
Model Number JM-85
Use Wall
After-sales Service Provided Engineers available to service machinery overseas
Warranty one year
Weight 2500KGS
Dimension(L*W*H) 4000*900*1400mm
Production Capacity 20 SETS/MONTH
Condition New
Voltage 380V/50HZ/3PH
Power(W) Driven Motor Power: 4KW, Hydraulic Cutting Power:2.2KW
Type Tile Forming Machine
Tile Type Colored Steel

Main Accessories:

(1) Main Forming Machine;

(2) 3 Tons Manual Un-coiler;

(3) Hydraulic System;

(4) PLC Computer Controlling System With Touch Screen ;

(5) Hydraulic Forming Cutter;

(6) Run out tables;

(7) Tools;

(8) Operation Manual.

Main Technic Parameter:

◊ Machine Size: 4000*900*1400mm;

◊ Machine Weight: 2500KGS;

◊ Motor Power:4KW;

◊ Hydraulic Power: 2.2KW;

◊ Voltage: 380V/50HZ/3PH;

◊ Forming Steps: 14 steps;

◊ Working Speed: 8-12m/min;

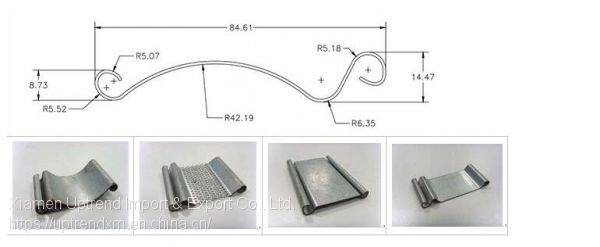

◊ Feeding Width: 136mm;

◊ Effective Width: 85mm;

◊ Effective Height: 14mm;

◊ Thickness: 0.8-1.2mm Q235 Steel Sheet;

◊ Tolerance: ±2mm;

◊ Roller material: S45C, Plated hard chrome on the surface of rollers, polished all the rollers;

◊ Material of principal axis: 40Cr forged steel;

◊ Sprocket wheel: S45C steel high-frequencies quench;

◊ Cut-off system: Hydraulic cutting device;

◊ Material for Blade: Cr12MoV with quenched treatment 60-62°C;

◊ Material for frame of machine: fine welded structural steel;


Product Tags: rolling shutter door machine , steel profile machine , roll former
