DS907C 80A Latching Relay 9v 12V Miniature Magnetic Latching Relay Be Use to Energy Meter
Key Characteristics
| |
.Switching current:80A .Three phase latch relay .RoHS .IEC62055-31 UC2 TUV CE RAMWAY Technology to provide complete solution for energy metering, intelligent power control, energy management, reactive power compensation, photovoltaic industry etc, |
Basic parameter
| Coil pulse width | 50ms Min |
| Operatino time | 30ms Max. |
| Comeback time | 30ms Max. |
|
Dielectric strength (50/60Hz) |
Between coil &contact 4000VAC/min |
| Between contacts 1800VAC/min | |
| Insulation resistance | Min.1000MΩ(500VDC) |
| Ambient Temp. | -40℃~+70℃ |
| Weight | 145g |
| Terminal type | PCB&QC |
| Package | Standard Export Carton(40x35x35 cm) inner boxes(19x16x6 cm) |

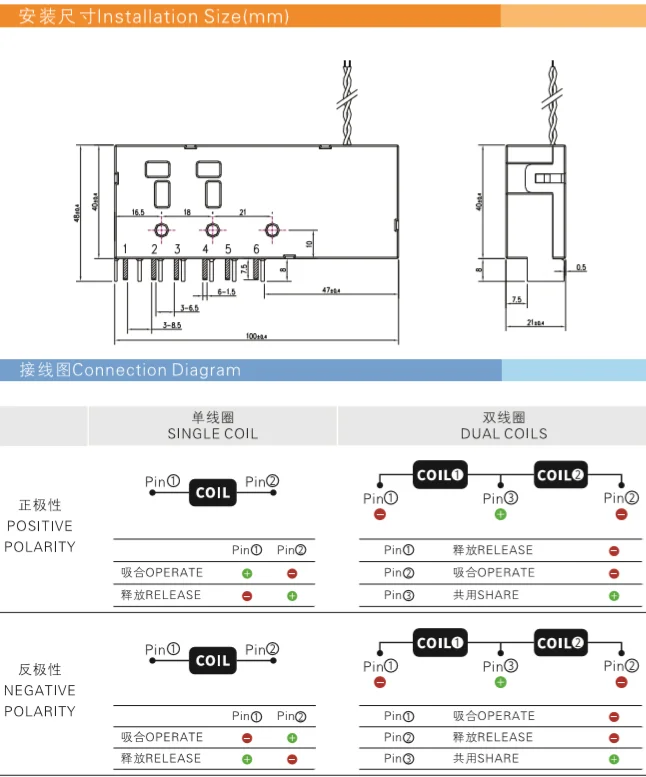

| Size(mm) | 100*40*21 |
Contact parameter
| Contact form | 3A 3B |
| Contact material | Silver Alloy ( AgSnO2 ) |
| Contact resistance | 0.8mΩ Max.(12VDC 1A) |
| Contact current (CosΦ=1) | 80A 250VAC |
| Max disconnection voltage | 440VAC/110VDC |
| Max disconnection power | 18,000VA |
| Electrical life | 1*104 cycles(load) |
| Mechanical life | 1*105 cycles |
Coil parameter
| Rated Voltage | Resistance±10%(Ω) | Rated power of the coil(w) | Rated Voltage(VDC) | |
| Single | Dual | |||
| 6 | 12 |
6*2 | 2-4w |
≤70%
Rated voltage |
9 |
27 | 13.5*2 | 2-4w | |
| 12 | 48 | 24*2 | 2-4w | |
| 24 | 192 | 96*2 | 2-4w | |

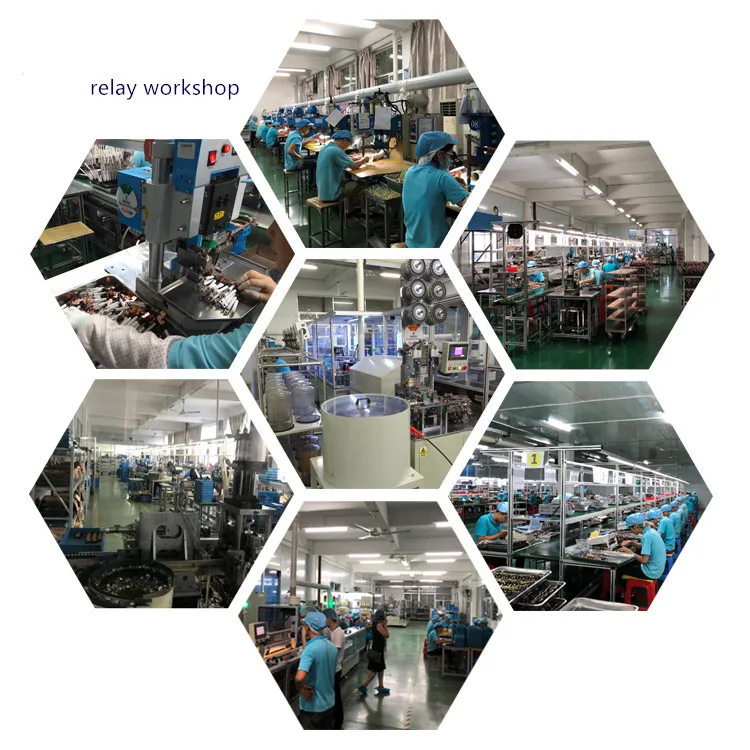

Ramway owning full automatic production equipment,professional management team and skillful workers.
Ramway will dedicate to provide you with quality products and service
Ramway factory has 20,000 square meters .Ramway Technology CO LTD is a high-tech enterprise with a history of more than 10 years,specializing in develops and produces magnetic latching relay,current transformer,shunt and relay driver integrated circuit.
