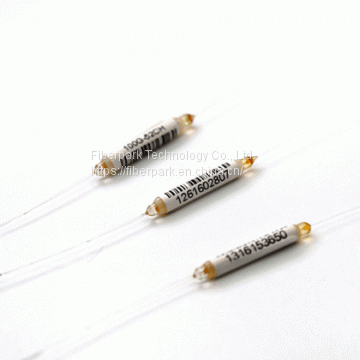

Help Center1260~1620nm CWDM 3 Port Device
Related Products
-
1520-1570nm &1460-1640nm DWDM 3 Port Devices (100GHz)NegotiableMOQ: 1 Piece -
1520-1570&1460-1640 DWDM 3 Port Devices (200GHz)NegotiableMOQ: 1 Piece
-
4 /8 /16 Channel 100GHz CWDM Modules in ABS or LGX (standard)NegotiableMOQ: 1 Piece
-
19" 3U Rackmount 16/32 Channels Mux/Demux Fiber Optic DWDM Modules (Standard)NegotiableMOQ: 1 Piece
-
19" 1u Rackmount 4 /8 /16 Channels Mux+Demux CWDM Module (Premium)NegotiableMOQ: 1 Piece
Fiberpark established in 2008, Fiberpark is a professional manufacturer and exporter that is concerned with the design, development and production of Fiber optical passive products. Fiberpark committed to providing OEM service, We are located in Shenzhen , with convenient transportation access. All of our products comply with international quality standards and are greatly appreciated in a variety of different markets throughout the world.
Fiberpark's main products are:
CWDM devices ,DWDM 100 GHz/200GHz devices, CCWDM modules,CWDM and DWDM modules,and mini CWDM and DWDM modules(60*55*7.1mm),PLC, Fiber optic Cable, Connectors ,Adaptor.
Our company employs more than 400 workers who have experienced technical and management personnel, more than 8000-square meters standardized dust-free workshop, through the efforts of our entire staff, we have become a manufacturer for famous WDM users and customers. Fiberpark people have continuously tried to improve product quality, introducing OPTRUN coating machine from Japan , and have coating capacity ,which make the film stable and good quality , The WDM full parameter testing system,which has been developed by our team,has highly improve the WDM device and modules testing efficiency and data integrated services. we also do vertical integration ,this ensure the high quality and delivery in time.we have O-band testing system from Santec which make FP can manufature the products from 1260~1360nm,We accumulated product development and managerial experience in fiber optic field to satisfy different requirements.
CWDM devices are based on Thin-Film Technology and All-Glass Packaged platform,Keeping the device in compact size and excellent performance.
Feature
Low Insertion loss
Excellent Channel Isolation
High Stability&Reliability
Low Cost
Applications
CWDM Channels Add/Drop
CWDM Networks&Systems
CATV Fiber Optical Links
Accessing LAN Networks
Short-Distance Communications
| Specifications | |||||
| Parameters | Unit | Specifications Standard |
Specifications Premium |
||
| 1 | Operating Wavelength Range | nm | 1260~1620 | ||
| 2 | Channel Spacing | nm | 20 | ||
| 3 | Channel Pass Band | nm | ITU ± 6.5 | ITU ± 7.0 | |
| 4 | Channels | nm | 1270, 1290 ~ 1590, 1610 | ||
| Optional Channels | nm | 1271, 1291 ~ 1591, 1611 | |||
| 5 | Pass Band Ripple | Max. | dB | 0.35 | 0.20 |
| 6 | Channel Insertion Loss | Max. | dB | 0.70 (Typical 0.50) | 0.6 (Typical 0.4) |
| 7 | Reflection Channel Insertion Loss | Max. | dB | 0.40 | |
| 8 | Adjacent Channel Isolation | Min. | dB | 30 | 35 |
| 9 | Non-Adjacent Channel Isolation | Min. | dB | 45 | 50 |
| 10 | Reflection Channel Isolation | Min. | dB | 13 | 15 |
| 11 | Return Loss | Min. | dB | 45 | 50 |
| 12 | Directivity | Min. | dB | 45 | 50 |
| 13 | Polarization Dependent Loss | Max. | dB | 0.10 | |
| 14 | Power Handling | Max. | mW | 300 | |
| 15 | Tensile Load | Max. | N | 5 | |
| 16 | Operation Temperature Range | ºC | -40 to 85 | ||
| 17 | Storage Temperature Range | ºC | -40 to 85 | ||
| 18 | Fiber Jacket & Fiber Length | cm | Customized | ||
| 19 | Package Dimensions - Glass Type 1 | mm | |||
| Package Dimensions - Glass Type 2 | mm | ||||
| Package Dimensions - SST Type | mm | ||||
| 20 | Fiber Type | G.652D / G.657 A1 (or Customized) | |||
| 21 | Fiber Marking | Customized | |||
Fiberpark adavntage:
1.Material imported Glass tube,capillary and Filter imported
2.Vertically Integrating Manufacturing Optical Cold-Working to AR Coating. Components to Devices(C-LENS,pigtail,collimator are manufactured by ourselves) Self-Owned Coating Machines from Japan
3.Quality, Delivery & Cost Vertically Integrating ensure us to provide the product in high quality, fast delivery and competitive cost
4.Automatic Test Solution Automatic Test Solution enhance the test capacity and capability, which ensure the data completeness within all the temperature range, polarization states and wavelength range.
5.All Band Testing Solutions O Band /C Band TLS and the OSA ensure us to perform testing for almost all the WDM Devices easily.
6.By piece Traceability Each product in device level is controlled and traced by piece. Individual ID is set from chip level to device level
7.Reliability Traceability & Quality Periodically Reliability Test has been performing On-Going Reliability Test has been performing Low Curing Power ensure higher Reliability for device High Cost Halogen UV lamps ensure the higher Reliability Automatic Alignment Machines ensure the Uniformity Special design refrigerators provide the low temperature testing solution for devices.
For more information ,you aslo can contact with :
Sophia Shen
Manager-overseas Market
Fiberpark Technology Co., Ltd.
Add:Langshan Pavilion,Nanshan Cloud Valley Innovation Industrial Park,Nanshan District ,Shenzhen,Guangdong,China
HP: +86 13825261095
Tel: +86-0755-29516899 Fax: +86-0755-29680599
Web:www.fiberpark.cn
