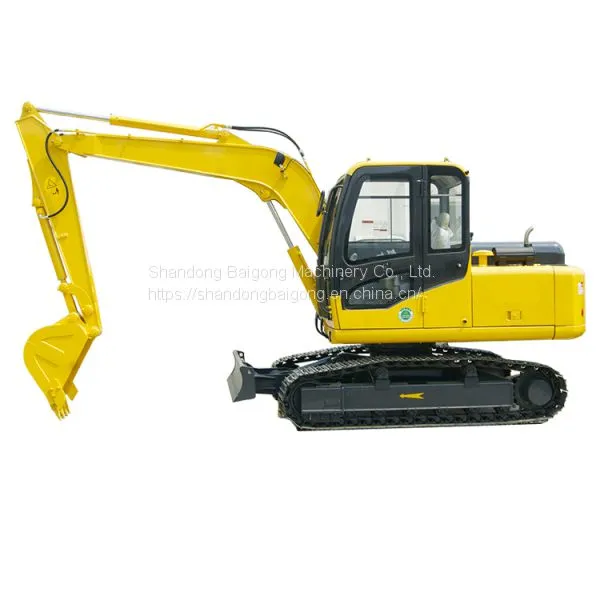

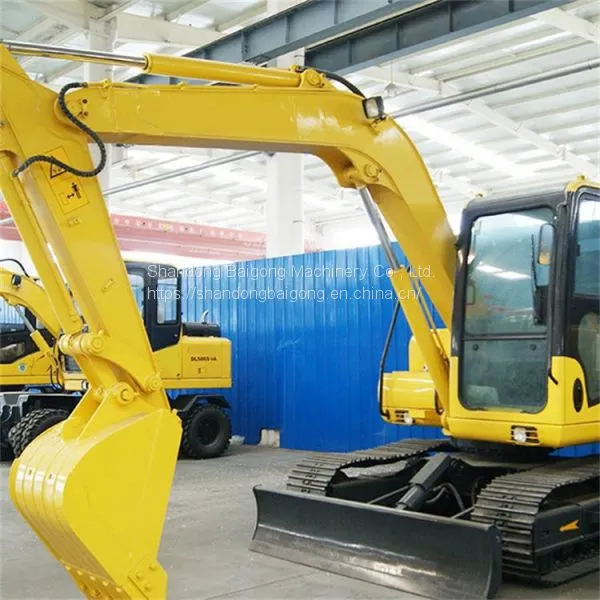

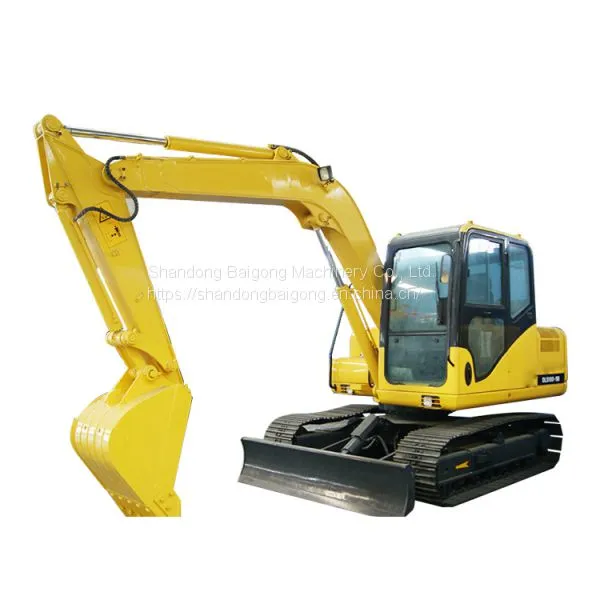

The full hydraulic excavator is suitable for a variety of complex ground environments and is widely used in construction, industry, agriculture and other fields.
Equipped with a powerful engine power system and advanced hydraulic system, the main valve realizes the integration of the boom, the stick and the bucket valve, and has the functions of swing priority, etc., with excellent compound motion coordination and flat performance, and accelerates the stick and the bucket. The speed of movement and work efficiency are greatly improved. The walk has a two-speed function, and the transition is more flexible.
• The newly designed dozer blade increases the range of lifting and lowering, making it ideal for complex conditions such as roads, pipelines, and line burial.
• The structural parts are made of domestic high-quality 16Mn steel, and the welding technology is in line with international standards, which greatly increases the structural strength and ensures the safety of driving and construction. The whole vehicle shot blasting treatment increases the adhesion of the paint, delays the embroidering of the parts, and improves the life of the parts.
Specification :
Working pressure |
22Mpa |
Rated flow |
62.1*2+41.4L/min |
Swing speed |
10rpm |
Travel speed |
2.3/4.2km/h |
Bucket digging force |
25KN |
Arm digging force |
25KN |
Max hauling force |
59.5KN |
Max torque |
230/1800 N.m/rpm |
Gradeability |
35° |
Fuel tank |
120L |
Hydraulic oil tank |
115L |
Rated capacity |
27*2+18ml/r |
Average group press |
39.2Kpa |
Working quality: 9000Kg |
9000kg |
Dimension ：
Overall width |
2000mm |
Machine height |
2535mm |
Overall length |
6286mm |
Ground clear ance(bob-weight) |
810mm |
Min ground clearance |
364mm |
Length of track on ground |
2253mm |
Width of track |
400mm |
Track gauge |
1600mm |
Track length |
2811mm |
Operating scope:
Boom length |
3500mm |
Arm length |
2000mm |
Max digging reach |
6758mm |
Max digging depth |
4894mm |
Max digging height |
6583mm |
Max dumping height |
4783mm |
Min swing radius |
2431mm |
Rear-end swing radius |
1951mm |
Max flooring reach |
4654mm |
Max ground digging depth |
6633mm |
