Automatic tool sensor CNC Z axis tool touch sensor tool setting gauge

Parameters:

Brand: Bor Dragon

Model: BEL-20B

Size: 50*69mm
Size of surface: Φ20mm
Surface material: tungsten
Tool accuracy: 1μm (operating speed: 50-200mm/min)
Cable: Oil-resistant and high-temperature four-core, minimum bending radius R7
Protective tube: S/S Hose
Air blowing device: has

Pedestal: fixed-point magnet
Tools signal mode: NC (often closed)/no (often open)
Input Rating: AC.DC5V-24A (recommended value 10MA) Resistance load
Working life: 3 million times
Repeat tool accuracy: 0.001MM (operating speed: 50-200 mm/min)
Packaging: Double-layer carton positioning packaging

Weight: 270g with package

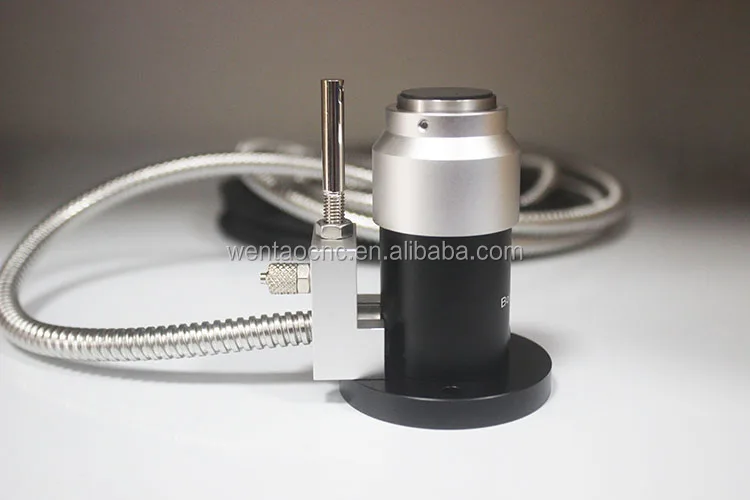

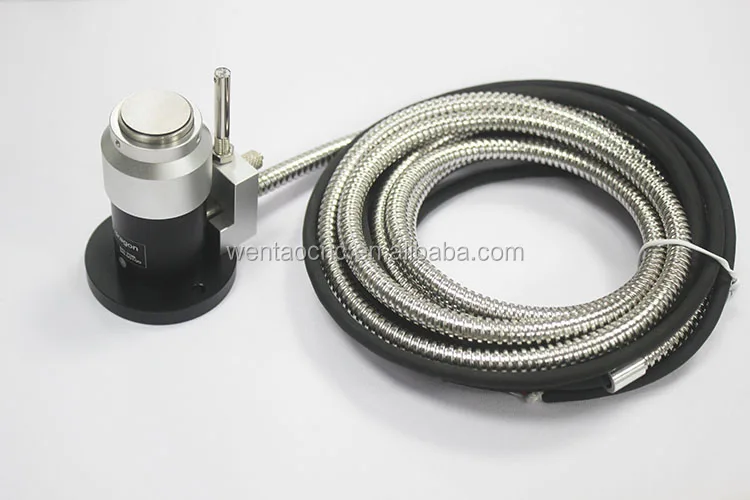

tool sensor Illustration:

Application:

1. For CNC carving and milling machine tool measurement, wear, loss detection
2. Alarm signal will occur when exceeding the itinerary, can prevent breakage accidents
3. Repeated accuracy of 1μm (0.001) to improve machining accuracy
4. Shorten tool measurement time and improve machine tool operation efficiency
5. Realize automatic operation, save manpower and prevent unqualified products
6. Applicable to Japan, Taiwan, Korea, China, Germany domestic processing center engraving machine and a variety of control machinery, such as (hair, Novidai, Bao Yuan, Siemens, Fager, Mitsubishi, etc.)
