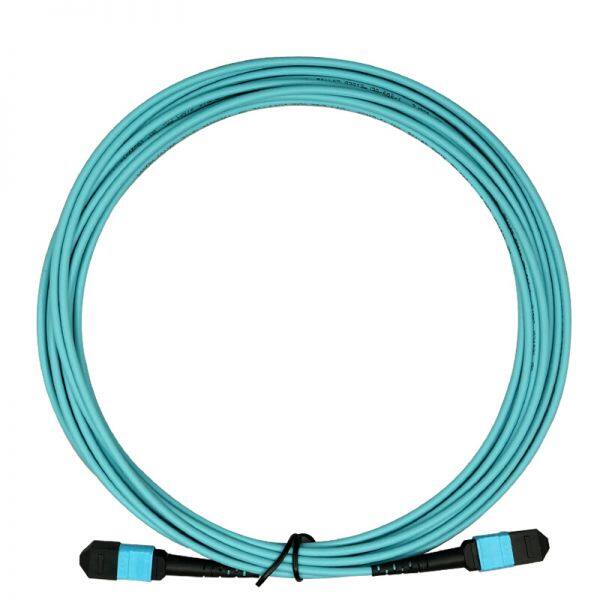

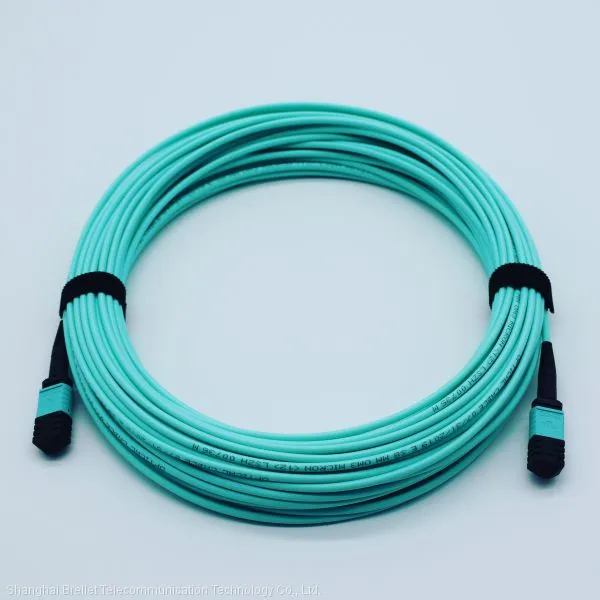

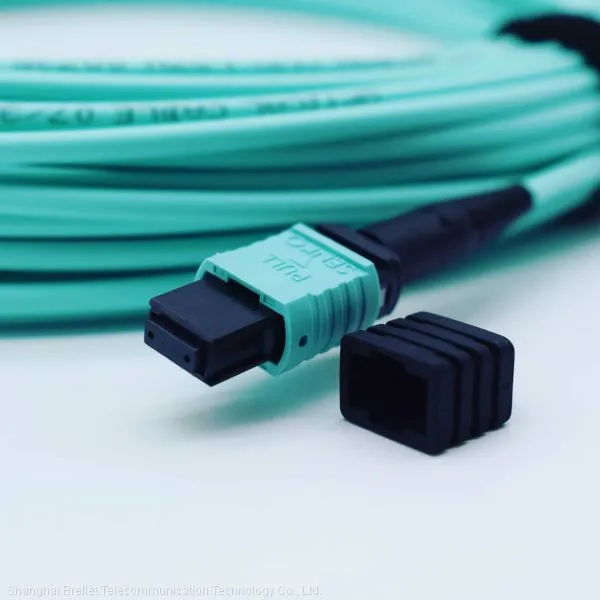

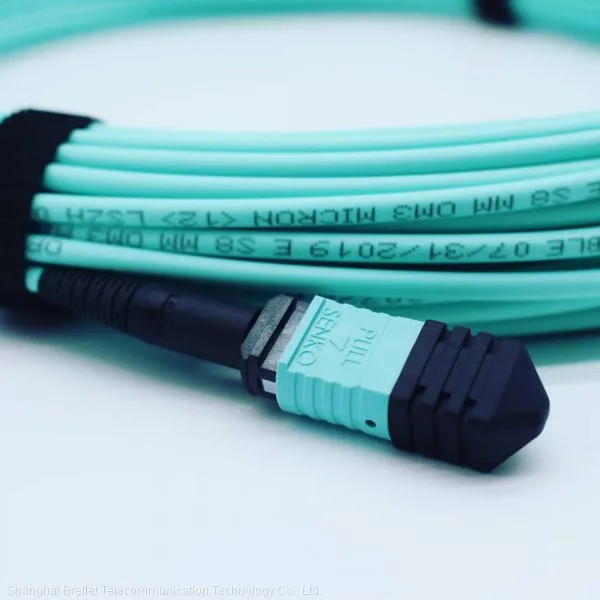

MPO/MTP Trunk Optical Patch Cord Brellet
- Shanghai
- T/T L/C PayPal Other Cash
- 7 days
You May Like
-
MPO/MTP Breakout Optical Patch Cord
-
BL-CATV-T Fiber Optic Transmitter
-
1x2 1x4 1x8 1x16 1x32 1x64 PLC Splitter 900um Steel Tube Type Fiber Optic FBT Copuler Splitter
-
BL-GE6500B EPON OLT for FTTx Project
-
Standard Fiber Optic Patch Cord & Pigtails
-
155M 1.25G 10G 40G SFP SFP+ QSFP Optical Transceiver DDM 20KM 120KM SFP Module
Product Details
| Brand Name | Brellet | Place of Origin | China | |
| Model Number | BL-MPO-x |
Product Description
Brellet Telecom's MPO/MTP Trunk Patch Cord consists of multi-fiber cable and MPO connectors Terminated at both ends. with low insertion loss, high return loss, and good durability, it is widely used in Data centers and other high-density integrated fiber optic line environments which need to save space and reduce cable management troubles.
Features
1. Low insertion loss
2. High return loss
3. Good durability
4. Rapid configuration and networking to reduce installation time.
5. Supporting 40G and 100G network applications.
6. 100% pre-terminated and tested in factory to ensure good transmission performance.
Applications
1. Data center
2. Telecommunication Backbone networks
3. High density cabling network
Specifications
Jacket Color

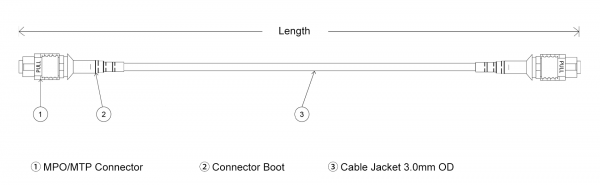

Appearance Diagram

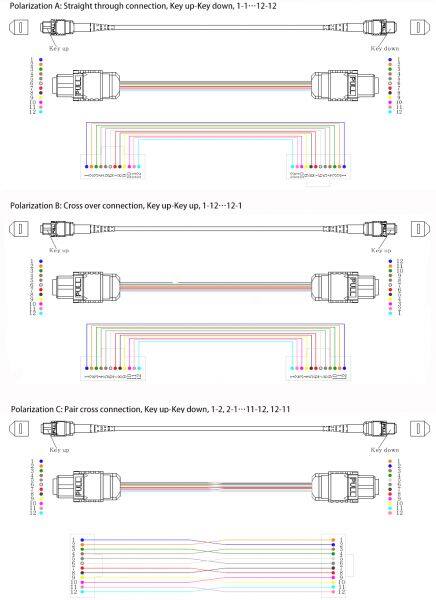

Polarization

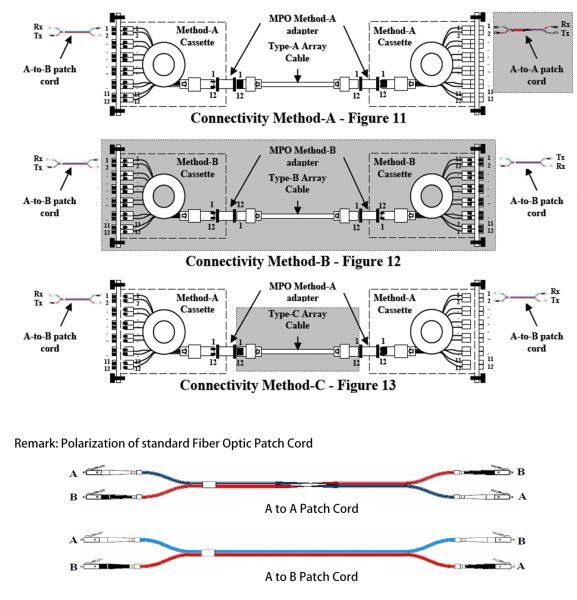

Connection Method

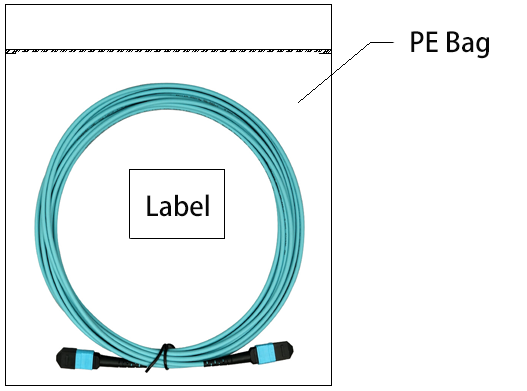

Package

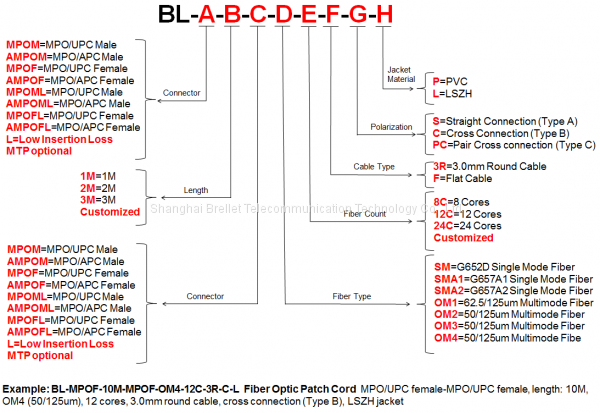

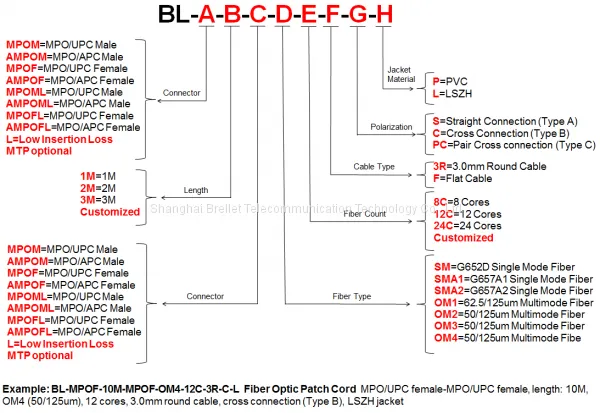

Ordering Information
